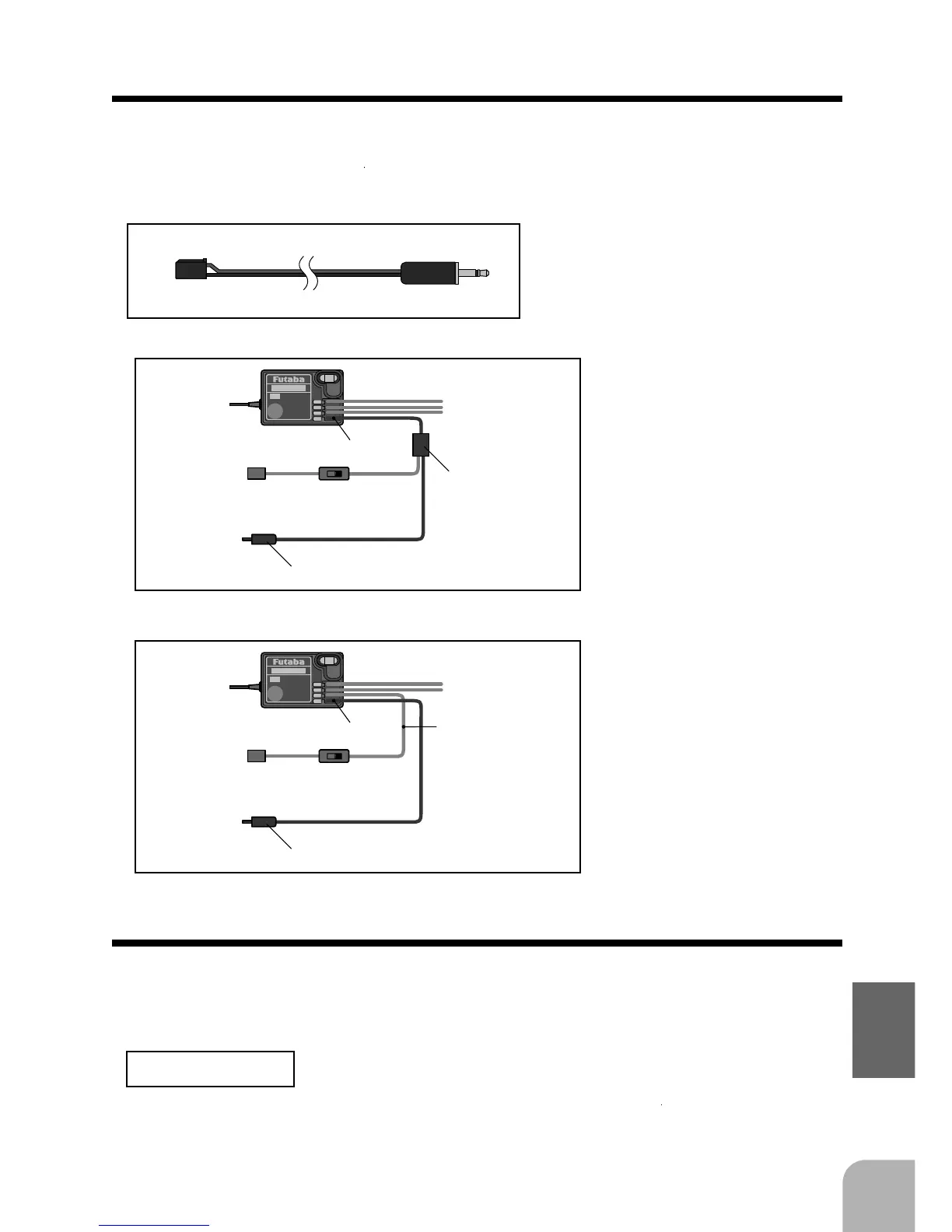

DSC cord
When the TPJ SUPER transmitter and FP-R113iP or FP-R113F receiver are con-
nected with the DSC cord, the servos can be operated without transmitting a signal.
(DSC function)
Part name
DSC cord for 3PJ SUPER
Connection
- When used fully up to channel 3, the
Y-Adapter must be purchased sepa-
rately.
To servos
Receiver
Connected to B/C
Y-Adapter
To receiver battery
Receiver switch
To transmitter DSC jack
DSC cord
- When channel 3 is not used, connect
the receiver switch to CH3 and con-
nect the DSC cord to the B/C terminal.
To servos
Receiver
Connect to B/C
Connect to CH3
To receiver battery
Receiver switch
To transmitter DSC jack
DSC cord
Body rest
If you are going to use the transmitter for a long time, the strain on your arms can be
reduced and stable operation can be performed by using this body rest.
Part name
3PJ Body Rest
