26
Before Using
1
2
3
B/C
FP-R113F
FM

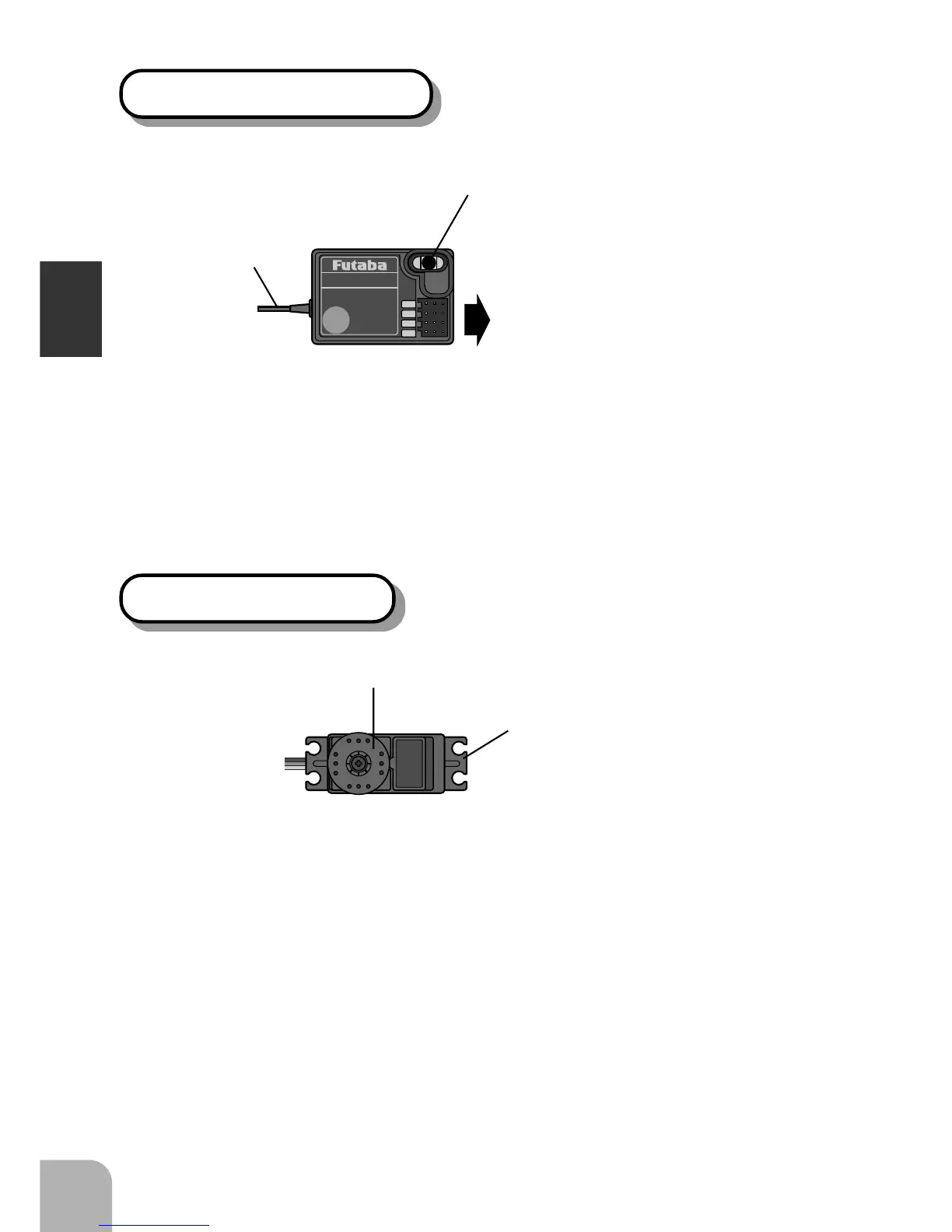

Receiver R113F/R113iP
Crystal
When changing the frequency, use the
specified Futaba crystal set.
Antenna
Connectors
1: Steering servo (CH1)
2: Throttle servo (CH2)
3: CH3 servo (CH3)
B/C: Power connector/DSC connector
R113F/R113iP
receiver
For the receiver, servos, and other connections, see page 27. For the DSC cord (op-
tion) connections, see page 103.
Servo S9402 / S9304
to Receiver
Servo horn
Mounting flange
<Accessory>
The following items are provided for setting:
- Spare servo horn
- Parts for servo installation
(For the installation precautions, see page 28.)
To Next Page
