5：5
7：3
Neutral Adjuster
(Throttle stick)
114
Fun ction
Adjuster "ADJUSTER"
(Preparation)

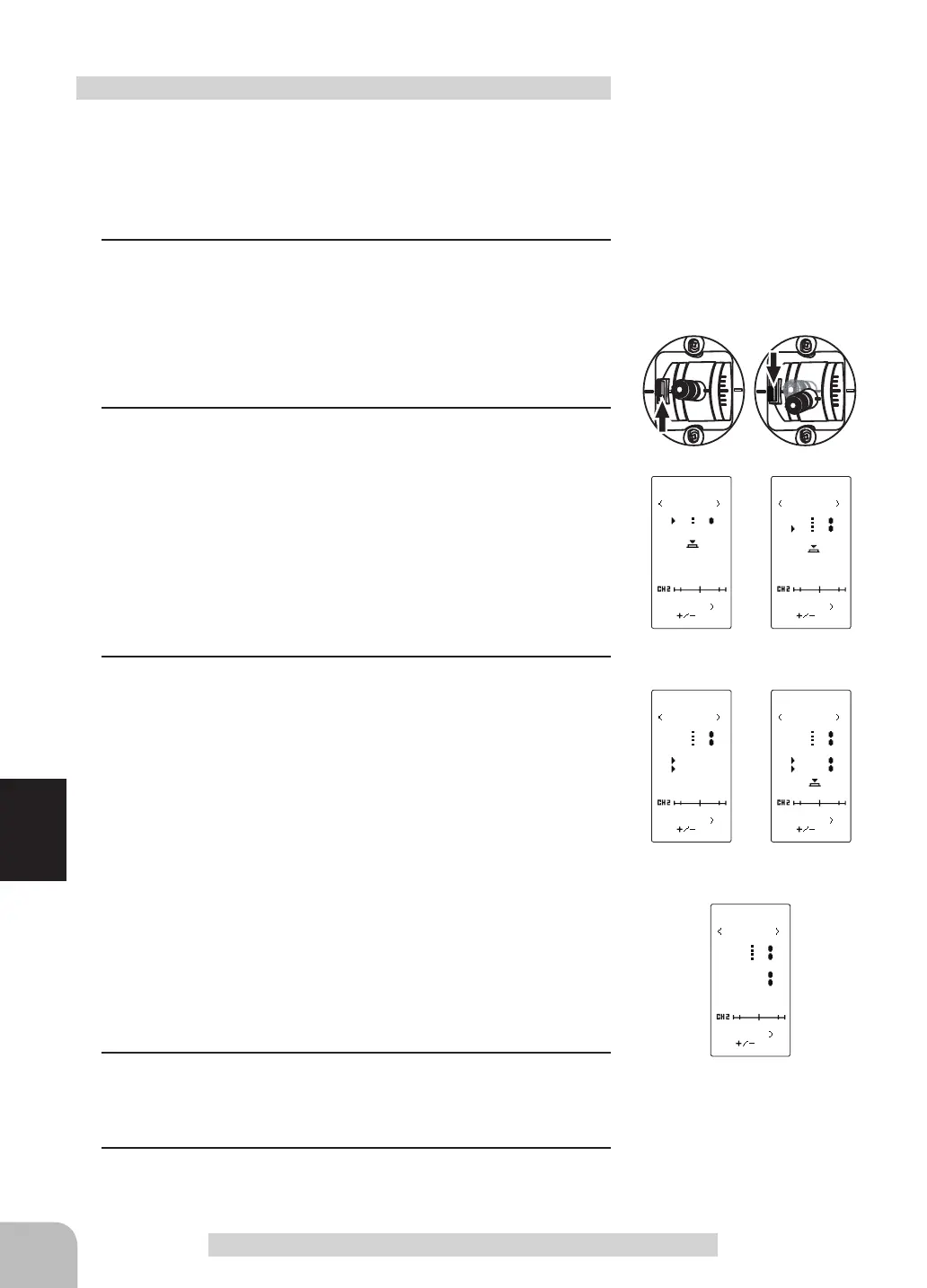

On the ADJUSTER screen, select the setting item "THROT-
TLE" using the (JOG) button, and press the (JOG) button.
Throttle adjustment will not be made if it has been converted
to ratchet operation.
It is necessary to return to a self neutral.
Throttle adjustment
Key
CANCEL
ADJUSTER
THROTTLE
N5 5
Key
CANCEL
ADJUSTER
THROTTLE
N5 5
N7 3
Key
CANCEL
ADJUSTER
THROTTLE
N5 5
N7 3
BRK
FWD
Key
CANCEL
ADJUSTER
THROTTLE
N5 5
N7 3
BRK
FWD
fig-1
fig-3
fig-2
fig-4
1
(Throttle 5:5
neutral adjustment )
Neutral adjuster is set to 5:5 by the Neutral Adjuster switch.
In the 5:5 neutral setup screen (fig-1) state, pull the stick
back slightly then allow to return to neutral and press the
(JOG) button whilst ensuring the stick is not touched.
2
(Throttle 7:3
neutral adjustment )
Neutral adjuster is set to 7:3 by the Neutral Adjuster switch
.
In the 7:3 neutral setup screen (fig-2) state, pull the stick
back slightly then allow to return to neutral and press the
(JOG) button whilst ensuring the stick is not touched.
Note that both the 5:5 and 7:3 neutral adjustment procedures
have to be completed as part of the set-up process. Once
complete the required option should be selected.
3
(Throttle throw adjustment)
In the throw setup screen state (fig-3), gently move the stick
fully to the brake side and the forward side and when button
mark (fig-4) is displayed, pressing the (JOG) button.
Internal check is performed automatically. When each adjust-
ment point is within a fixed range, correction is performed
and “COMPLETE!” (fig-5) is displayed.
If an adjustment point is not within a fixed range, correction
is not performed and the correction data is not updated.
When button mark is not displayed even though correction
was performed again, please contact a Futaba Radio Control
Customer Center.
4
When completed, return to the ADJUSTER screen by press-
ing the (JOG) button.
5
Next, move the cursor to [RT] using the (JOG) button, and press
the (JOG) button.
Key
CANCEL
ADJUSTER
THROTTLE
N5 5
N7 3
BRK
FWD
COMPLETE!
fig-5
To Next Page
