FUTABA 4GRS - Switch Dial Operation CH3 CH4

23
Before Using
Operation of CH3 can
be checked.
Operation of CH4 can
be checked.
Switch Dial Operation CH3 CH4
(CH3: Switch SW2, CH4: Dial DL1)

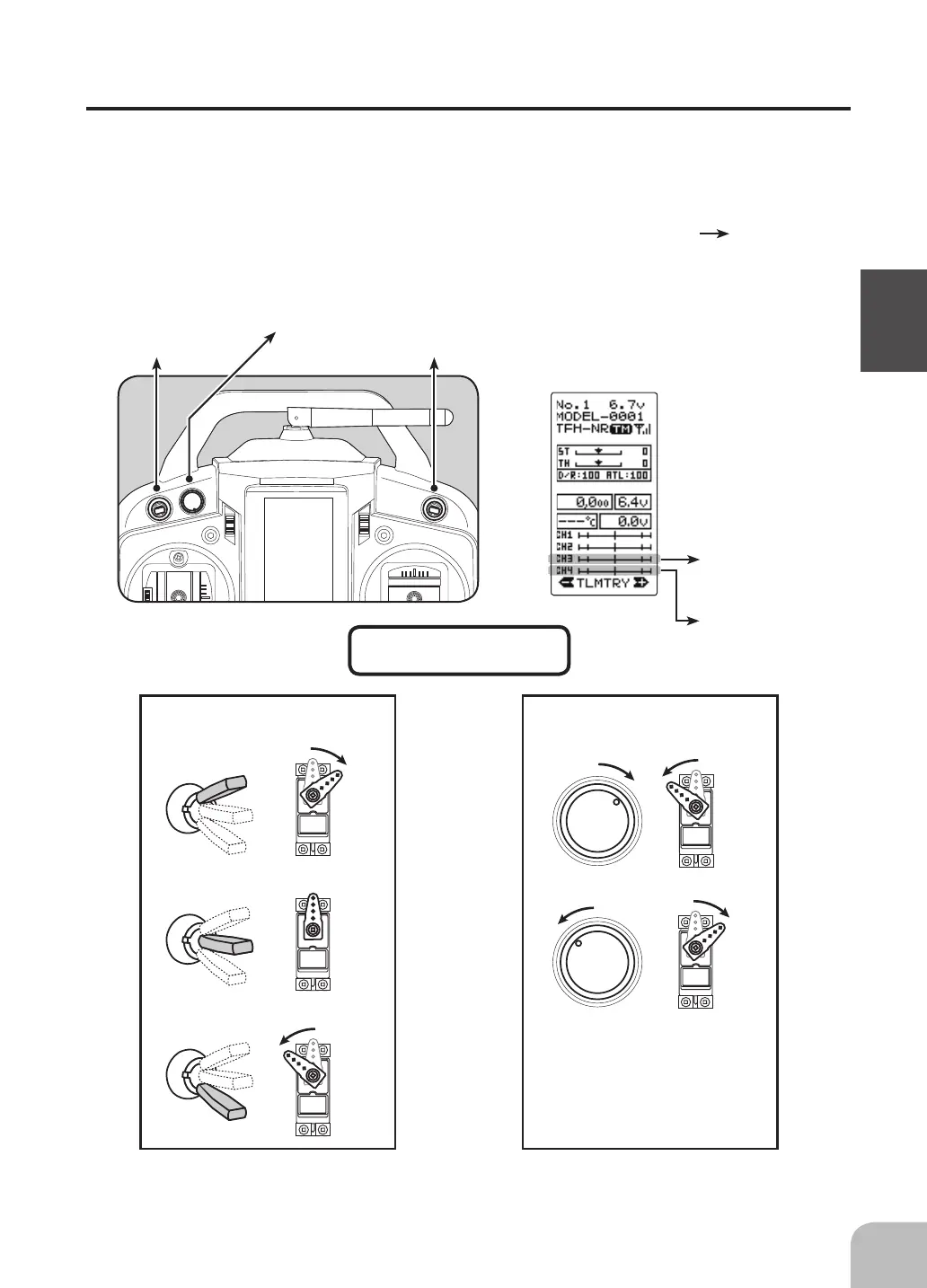

The three-position switch SW2 will result in the servo arm moving to three differ-
ent positions when operated.
Note that this function cannot be assigned to the spring return switch SW1.
Rotating the Dial (DL1) will proportionally control a servo on CH4. T he SW2
switch and DL1 dial can be assigned to either function.
Switch
（
SW1
）
The function cannot
be assigned to SW1
•The servo arm position and dial
do not necessarily always match
exactly.
T4GRS beeps when the
dial reaches center and
limit position.
Switch
（
SW2
）
3position Return
SW2 3CH Servo DL1 4CH Servo
Dial
（
DL1
）
Initial setting
