FUTABA 4GRS - End Point Adjustment

Setting item selection
(Steering and Throttle direction)
- The direction (STR LFT and STR RGT) linked with the steering stick is switched.
- The direction (THR FWD and THR BRK) linked with the throttle stick is switched.
Setting item (channel and direction)
STR LFT :Steering (left side)
STR RGT :Steering (right side)
THR FWD :Throttle (foward side)
THR BRK :Throttle (brake side)
CH3/CH4 UP :3rd or 4th channel (up side)
CH3/CH4 DWN :3rd or 4th channel (down side)

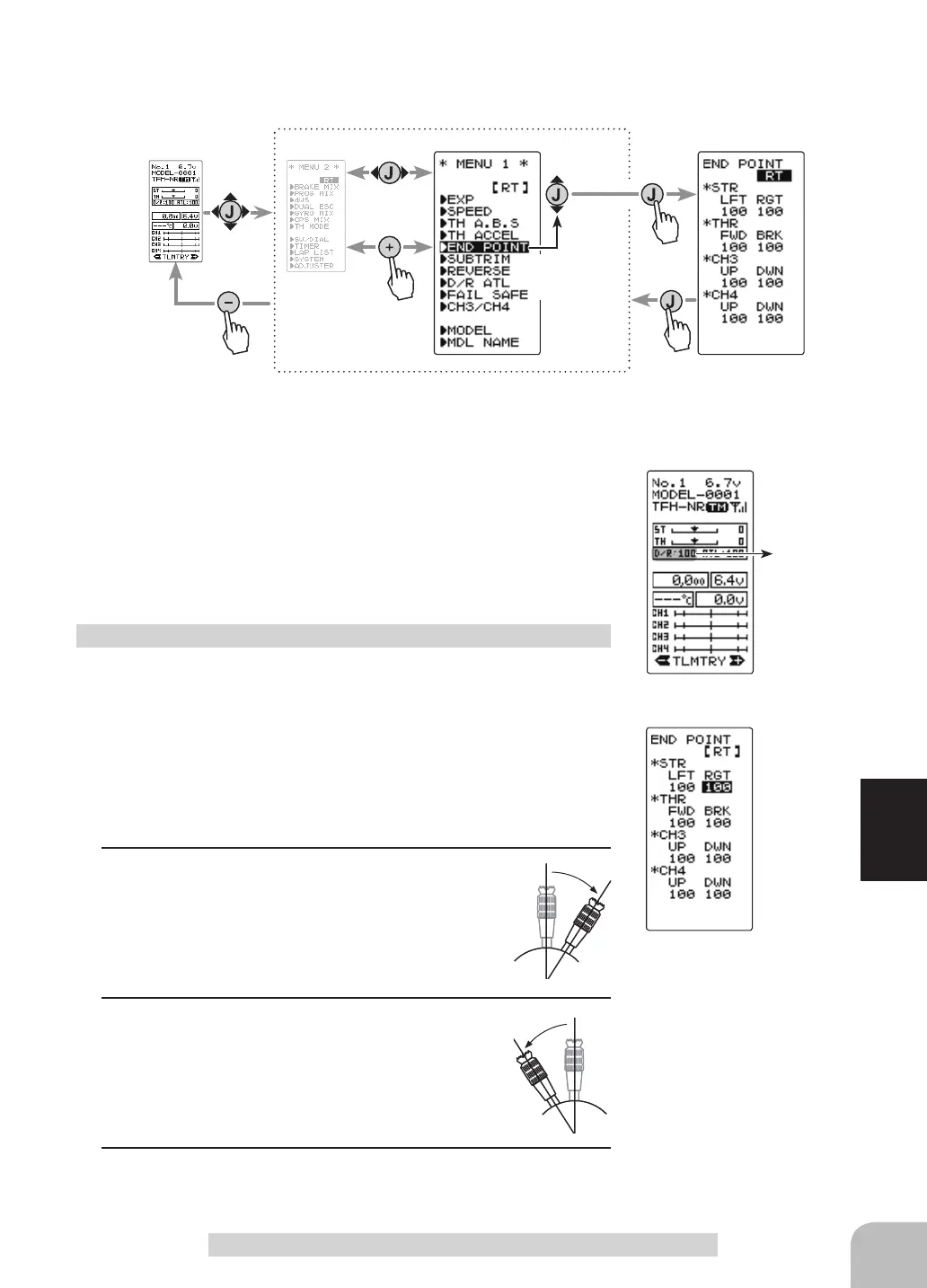

(HOME screen)
100
Pres
s
Pres
s
(HOME screen)
(MENU 2 screen)
( END POINT screen)
(MENU 1 screen)
Pres
s
Pres
s
Select
"END POINT"
55
Fun ction
End Point Adjuster "END POINT"
(Preparation)
- Before setup of the steering end point adjustment (END
POINT), set the steering D/R lever (initial setup: DT3) to the
maximum steering angle position 100%.
- Select the setting item "RGT" using the (JOG) button up, down,
left, or right operation and make the following adjustments:
1
Steering (left side) adjustment
Move the steering stick fully to the left and
use the (+) or (-) buttons to adjust the steer-
ing angle.
2
Steering (right side) adjustment
Move the steering stick fully to the right and
use the (+) or (-) buttons to adjust the steer-
ing angle.
3
When complete, return to the MENU1 screen by pressing
the (JOG) button.
Steering (END POINT) adjustment
Adjust button
Adjust with the (+) and (-)
buttons.
- Return to the initial value
"100" by pressing the (+) and
(-) buttons simultaneously for
about 1 second.
Steering EPA
STR LFT :0~120
STR RGT :0~120
Initial value :100
Display to "END POINT" screen by the following method:
