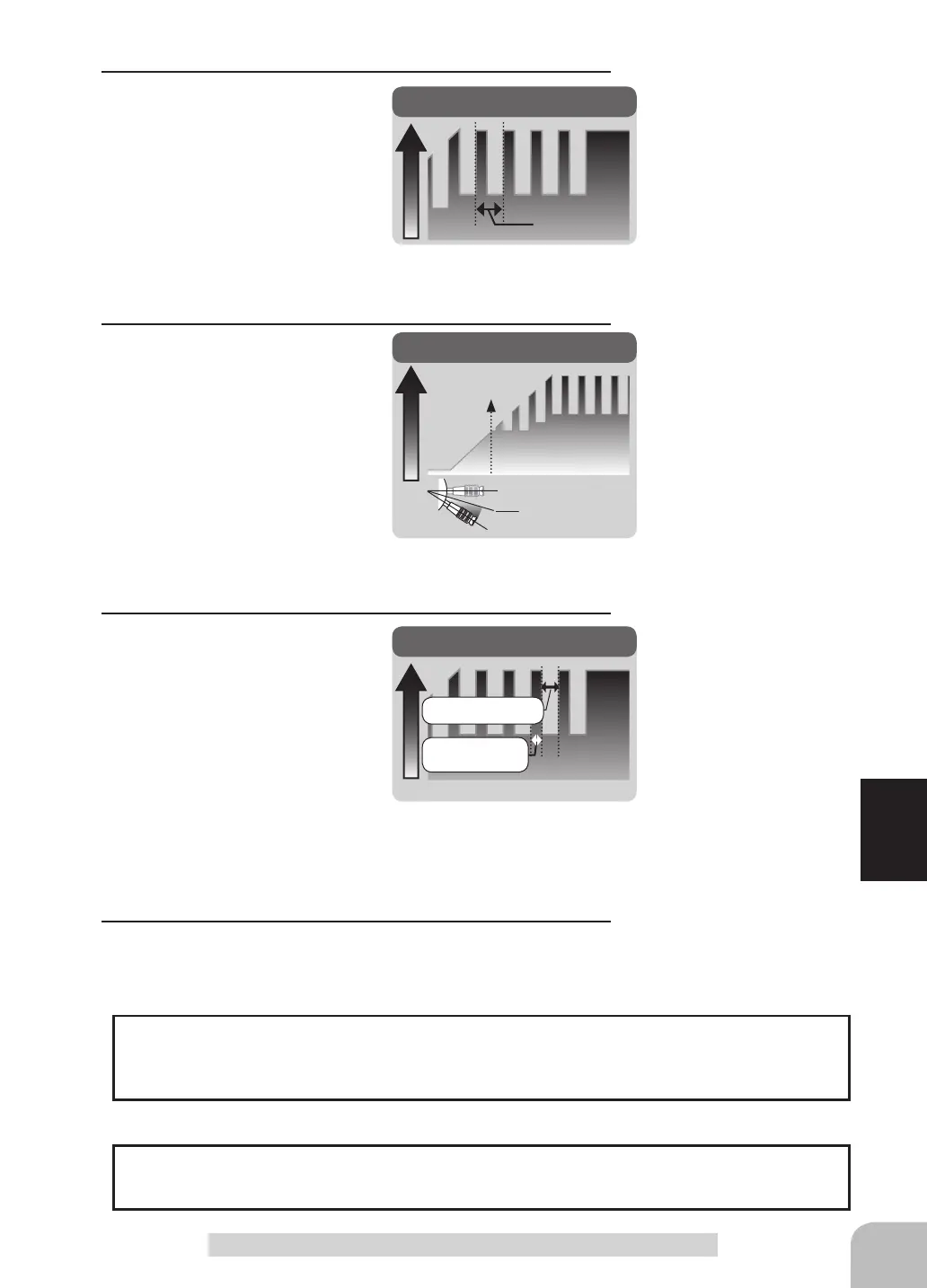

CYCL
Servo travel
CYCL (Cycle)
Cycle speed (CYCL)
1 ~ 30
Initial value: 10
DUTY
Servo travel
DUTY (duty): X and Y ratio
X: (Brake
application time)
Y: (Brake return time)
Duty ratio (DUTY)
LOW - MID - HIGH
Initial value: MID
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).
TG.P
Servo travel
TG.P
(
Starting point
)
TGP
Brake side
Neutral
Starting point
(TG.P)
10 ~ 100
Initial value: 30
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).
69
Fun ction
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).
A.B.S. Function "TH A.B.S"
Use SW1 or SW2 to switch the A.B.S. function ON/OFF.
See the function select
switch dial
function.
Switch setting
The brake return amount (AB.P), delay amount (DELY) and cycle (CYCL) can be con-
trolled with digital dial or digital trim with the function
switch dial
function.
Dial / Trim Setting
4
(Cycle speed adjustment)
Select setting item "CYCL"
using the (JOG) button up or
down operation. Use the (+) or
(-) button to adjust the pulse
speed (cycle).
- The smaller the set value, the faster the pulse speed.
5
(Starting point setup)
Select setting item "TG.P" using
the (JOG) button up or down
operation. Use the (+) or (-) but-
ton to adjust the operation point.
- Sets the throttle stick position at which the A.B.S. function is performed.
The number is the % display with the full brake position being 100.
6
(Cycle duty ratio setup)
Select setting item "DUTY"
using the (JOG) button up or
down operation. Use the (+) or
(-) button to adjust the duty ra-
tio.
"LOW" :Brake application time reduced to minimum.(Brakes lock with difficulty)
"HIGH" :Brake application time increased to maximum. (Brakes lock easily)
(Remark) For low grip, set at the LOW side and for high grip, set at the
HIGH side.
7
When completed, return to the MENU1 screen by pressing
the (JOG) button.
