Pres
(HOME screen)
(MENU 1 screen)
(CPS MIX screen)
(MENU 2 screen)
Pres
Select
"
CPS MIX
"
86
Fun ction
Gyro mixing "CPS MIX"

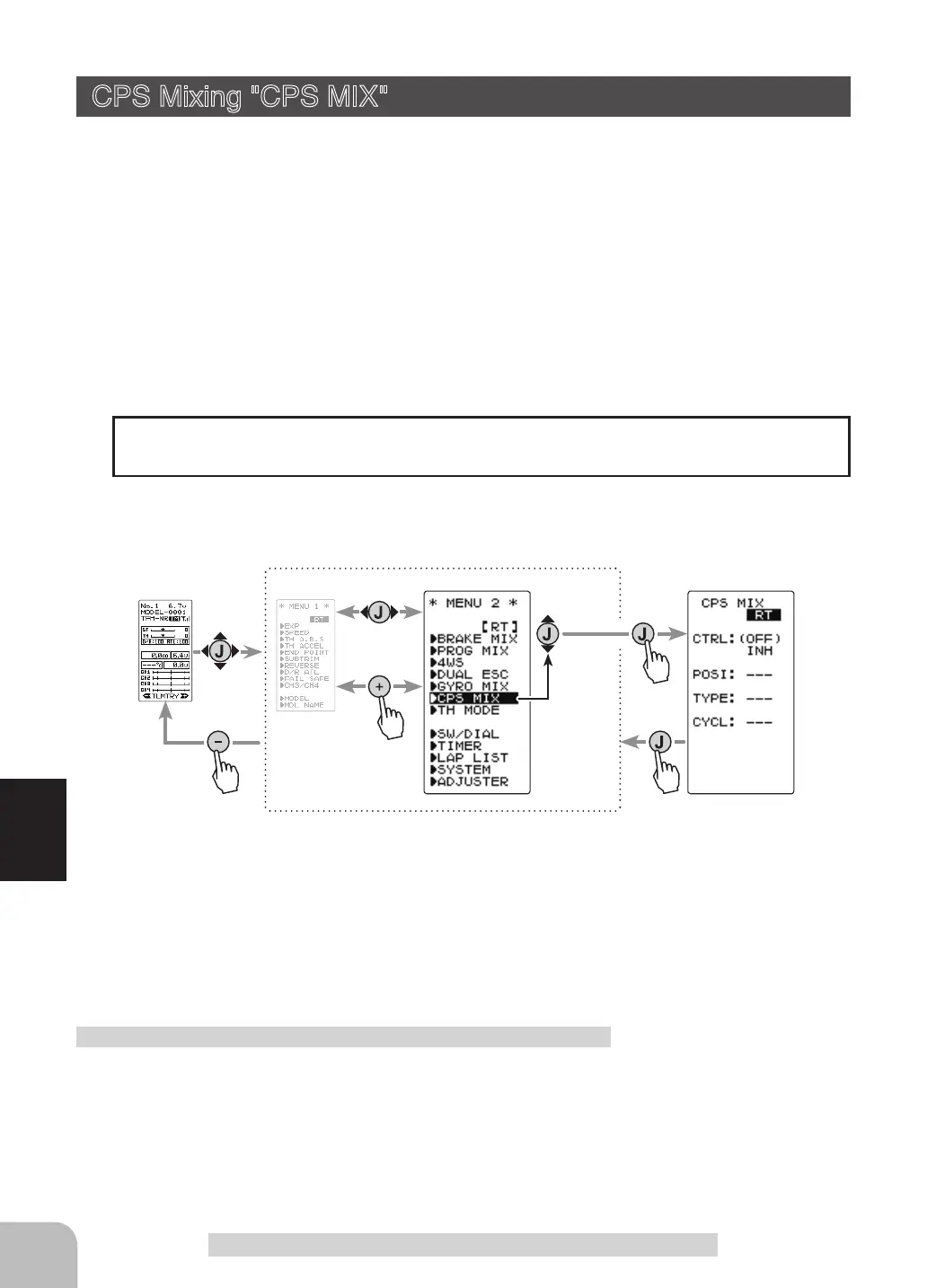

Display "CPS MIX" screen by the following method:
This function controls the Futaba CPS-1 channel power switch.
Normally, when using the CPS-1 unit to power the vehicle lights etc (LED) the CPS-
1 unit with LED connected is connected to a vacant switch channel and the LEDs are
turned on and off by the switch while the vehicle is running. However, when the CPS-
1 mixing (CPS MIX) function is used, the LED can be turned on and off and ashed in
step with steering and throttle operation, as well as being turned on and off by switch.
The ashing speed (cycle) can also be set.
For instance, the LED can be ashed as a brake light when the brakes are operated.
CPS Mixing "CPS MIX"
When the 4th CH was set to ACT at Brake Mixing or when Dual ESC Mixing is used,
CPS mixing cannot be used.
Setting Special mixings
(Preparation)
- Connect the CPS-1 to the 4th CH of the receiver.
- When the LEDs are turned on and off by switch, use the
function select switch dial function to set the switch to be
used.
CPS mixing adjustment
Function SW
CH4
Setup items
MODE : Function ON/OFF, control mode
POSI :
ON/OFF position
TYPE :
ON/OFF type
TCYCL : Flashing speed
To Next Page
