Alarm
ON/OFF
ON, OFF
- Select with the (+) or (-) but-
tons.
Voltage alarm
0.0V~90.0V
Initial value: 5V
Adjust button
- Adjust with the (+) and (-) but-
tons.
- Return to the initial value "0" by
pressing the (+) and (-) buttons
simultaneously for about 1 sec-
ond.
Sensor type
SBS-01T, Temp 125
Select button
- Select with the (+) or (-) but-
tons.
Display type
°C, °F
- Select with the (+) or (-) but-
tons.
Alarm
ON/OFF
ON, OFF
- Select with the (+) or (-) but-
tons.
Temperature alarm
-20~200°C/ -4~392°F
Initial value: 200°C/ 212°F
Adjust button
- Adjust with the (+) and (-) but-
tons.
- Return to the initial value "0" by
pressing the (+) and (-) buttons
simultaneously for about 1 sec-
ond.
119
Fun ction

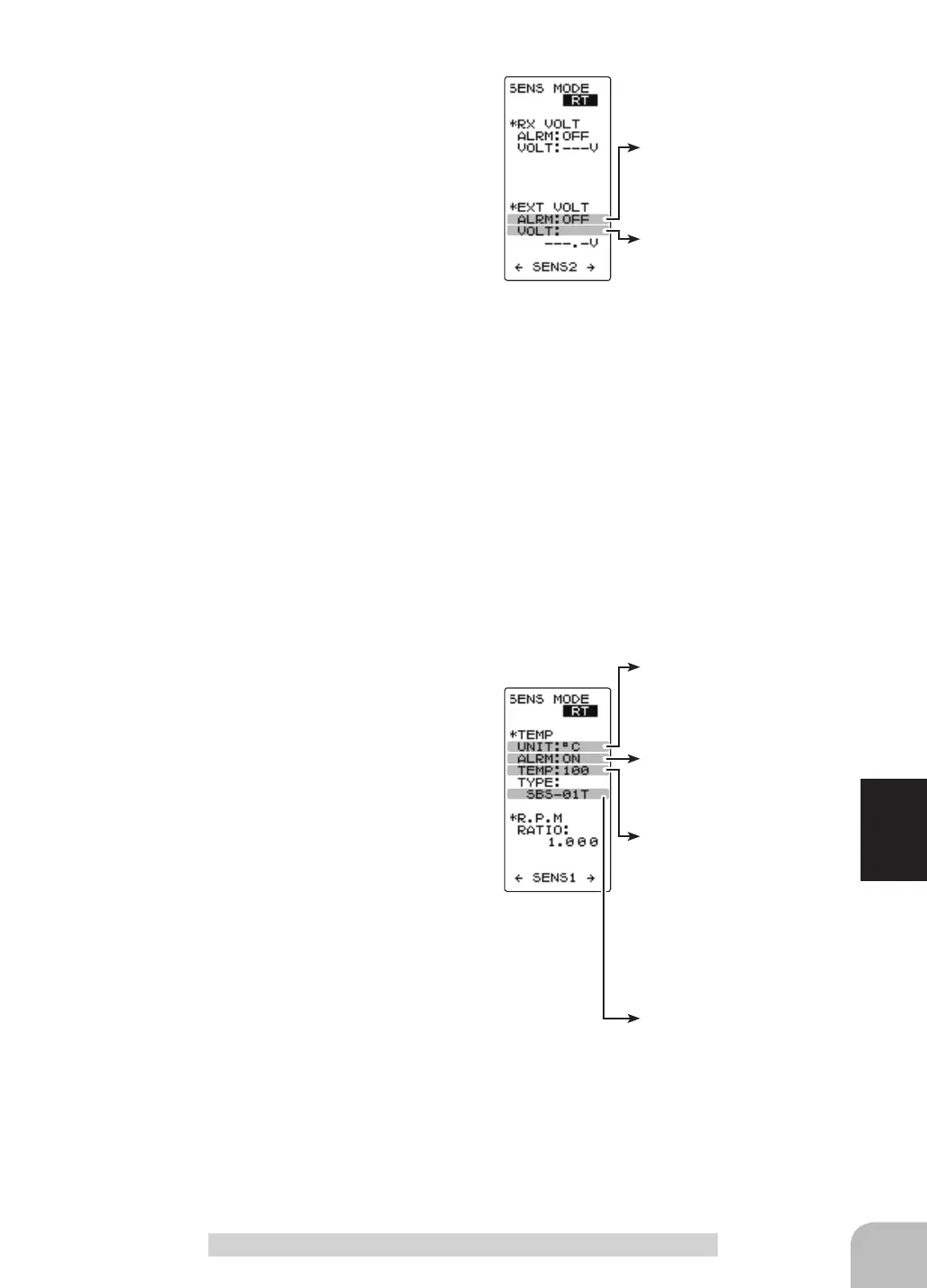

Telemetry "TELEMETRY"
Setting external power supply voltage alarm
Display page 1 using (JOG) button left or right
operation.
Select "ALRM" of the "EXT VOLT" setting
items using (JOG) button up or down opera-
tion, and set alarm ON/OFF with the (+) but-
ton or (-) button.
"OFF" : Alarm OFF
"ON" : Alarm ON by a voltage drop below the specified voltage
Select "VOLT" of the "*EXT VOLT" setting items using (JOG)
button up or down operation, and set the voltage at which
the alarm begins to sound with the (+) button or (-) button.
The number of digits can be shifted using (JOG) button left
or right operation.
When completed, move the cursor to [RT] using the (JOG)
button, and return to the HOME screen by pressing the (JOG)
button twice.
Setting the temperature alarm
Display page 2 using (JOG) button left or right operation.
Select "UNIT" of the "*TEMP" setting items using (JOG) but-
ton up or down operation, and select Celsius or Fahrenheit
temperature display with the (+) button or (-) button.
"°C" : Celsius display
"°F" : Fahrenheit
Select "ALRM" of the "*TEMP" setting items
using (JOG) button up or down operation, and
set alarm ON/OFF with the (+) button or (-)
button.
"OFF" : Alarm OFF
"ON" : Alarm ON at the specified temperature
Select "TEMP" of the "*TEMP" setting items using (JOG)
button up or down operation, and set the temperature at
which the alarm begins to sound with the (+) button or (-)
button. Select "TYPE" of the "*TEMP" setting items using
(JOG) button up or down operation, and set the type of
sensor with the (+) button or (-) button
"SBS-01T" : Option sensor
"Temp 125" : Option sensor for Europ
When completed, move the cursor to [RT] by the (JOG) but-
ton, and return to the HOME screen by pressing the (JOG)
button twice.
