The function select switch
screen can be displayed
from this screen.
< NO SW >
If function’s ON/OFF
switch is not selected,
<NO SW> is displayed.
81
Fun ction
4WS Mixes “4WS”
1
(4WS type selection)
Select the setting item "MODE" using the
(JOG) button up or down operation. Use the
(+) or (-) and set the function to the "ON" or
"OFF" state.
"INH" :Function OFF (front only)
"2TYP" :Front axle only, reverse steer switching
"3TYP" :Front axle only, reverse steer and same steer switching
"4TYP" :Front axle only, reverse steer, same steer, and rear steer only switching

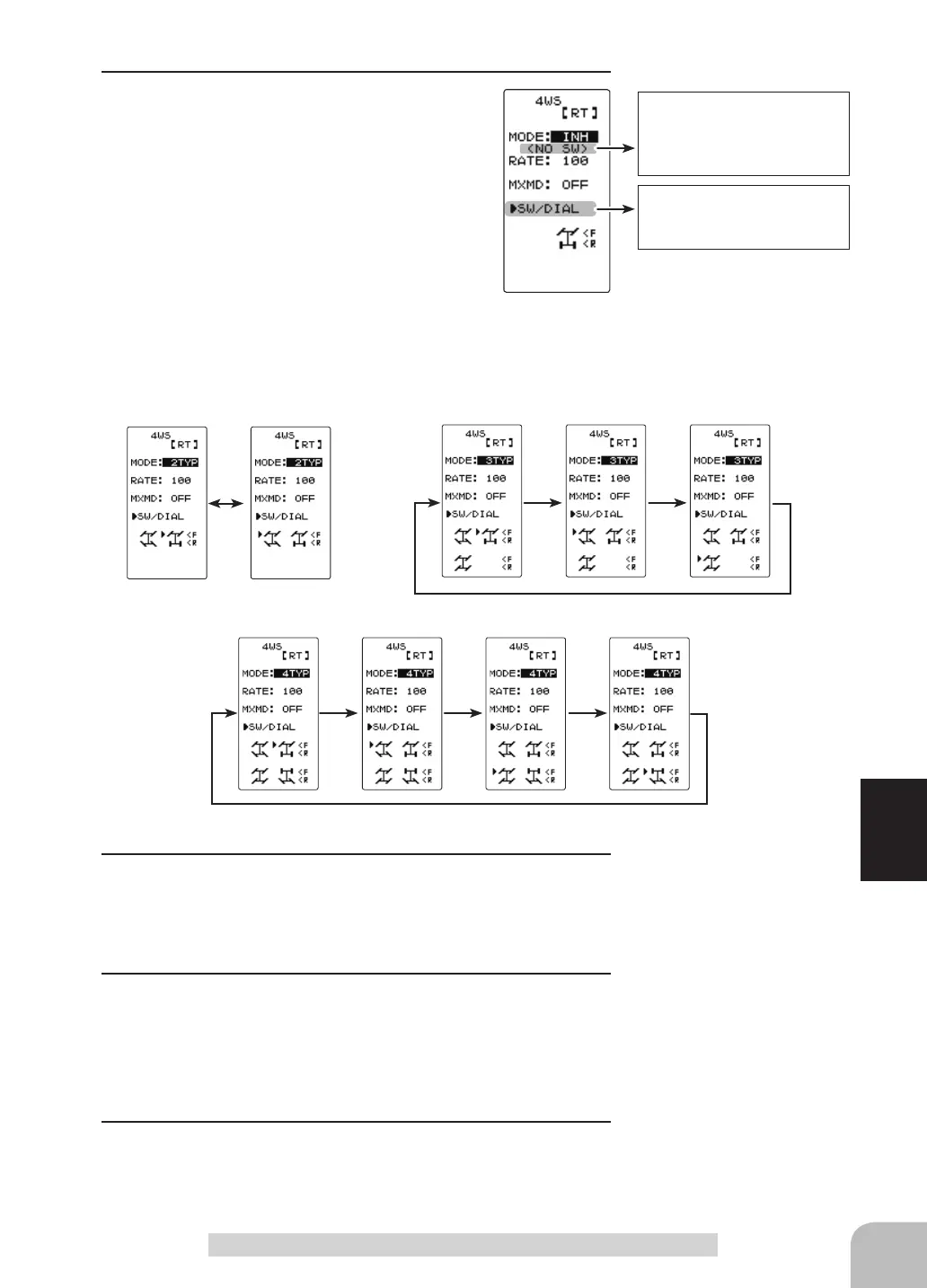

Switched in the order shown in the figure below by set SW
Function ON/OFF (MODE)
OFF, 2TYP, 3TYP, 4TYP
Mixing mode (MXMD)
OFF, ON
Initial value: OFF
Rear rate (RATE)
0 ~ 100
Initial value:100
"2TYP"
：
Front axle only and reverse
steer switching
"3TYP"
：
Front axle only, reverse steer, and same steer switching
"4TYP"
：
Front axle only, reverse steer, same steer, and rear axle only switching
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).
2
(Rear side travel adjustment)
Select setting item "RATE" using the (JOG) button up or
down operation. Adjust the rear axle travel with the (+) or (-)
button.
3
(Mix mode setting)
Select setting item "MXMD" using the (JOG) button up or
down operation. Set the mix mode with the (+) or (-) button.
"OFF" :The EXP function of the 1st CH and other settings are not mixed.
"ON" :The EXP function of the 1st CH and other settings are mixed.
4
When completed, return to the MENU screen by moving the
cursor to the positions other than SW/DIAL and pressing the
(JOG) button.
Select button
- Select with the (+) or (-) but-
tons.
Select button
- Select with the (+) or (-) but-
tons.
