＜ Linkagemenu ＞
Trainer
Trainer system starting and setting

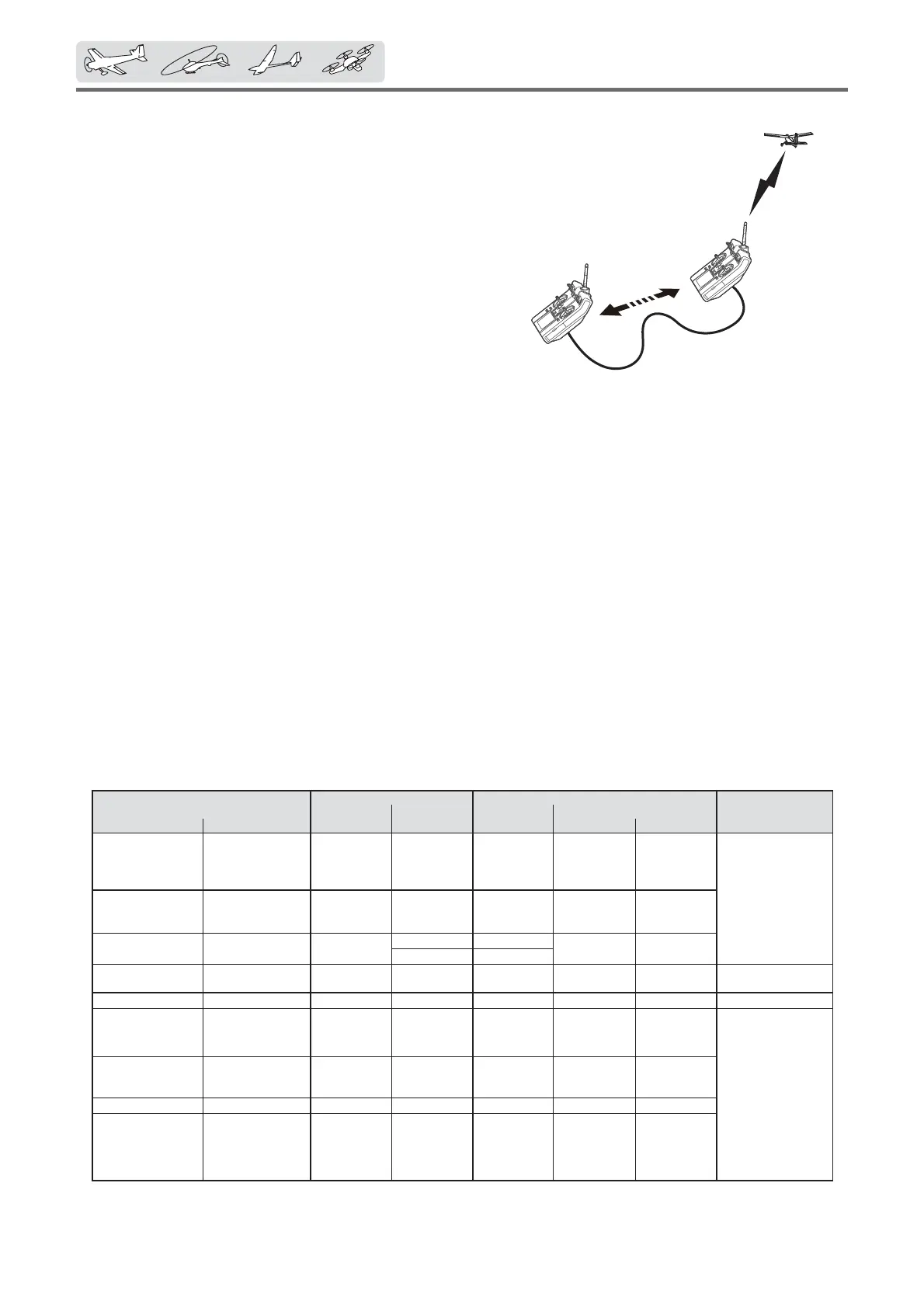

FX-36 trainer system makes it possible for the
instructor to choose which channels and operation
modes can be used in the student's transmitter.
The function and rate of each channel can be set.
The training method can also be matched to the
student's skill level. Two transmitters must be
connected by an optional Trainer Cord, and the
Instructor's transmitter should be programmed for
trainer operation, as described below.
When the Instructor activates the trainer switch,
the student has control of the aircraft (if MIX/
FUNC/NORM mode is turned on, the Instructor
can make corrections while the student has control).
When the switch is released the Instructor regains
control. This is very useful if the student gets the
aircraft into an undesirable situation.
ŏ Setting data are stored to model data.
ŏ Student rate can be adjusted at MIX/F8NC/
NORM mode.
ŏ Activated student channels can be selected
by switches.
Note: This trainer system can be used in the following
manner:
1. With the FX-36 transmitter and a conventional
transmitter, if the channel order is different, it is
necessary to match the channel order before using this
function.
You can select the channel of input data from student's
transmitter in the "FUNC" or "MIX" mode.
2. When the FX-36 is used as the instructor’s transmitter,
set the modulation mode of the student’s transmitter to
PPM.
If being used as the student, FX-36 can be connected to
the instructor's transmitter which requires the student's
mode to be PPM. FX-36 always sends PPM mode signal
from the trainer jack.
(In the case of student's transmitters other than 2.4 GHz)
3. Be sure that all channels work correctly in both
transmitters before Àying.
Corresponding types of transmitters and trainer mode settings:
Types of transmitters
Instructors transmitter settings Students transmitter settings
System Type Trainer setting System Type Trainer setting Trainer Cords
Instructor Student Mod. mode CH mode Mod. mode CH mode Mod. mode
FX-36,FX-32
T14SG,T16S=,T18S=
T18M=
FX-36,FX-32
T14SG,T16S=,T18S=
T18M=
Arbitrary 16CH Arbitrary 16CH -
T12FG (F8TM4405)
and 9C (F8TM4415)
Trainer Cords
FX-36
T14M=, FX-40, T12=,
T12FG,
FX-30
Arbitrary 12CH
PCM-G3
2.4G
12CH PPM
FX-36 T8FG, FX-20 Arbitrary
12CH FASST-MLT2
--
8CH FASST-M8LT
FX-36
T10C, T9C,
T7C,T6EX, T4EX
Arbitrary 8CH PPM - - T12FG (F8TM4405)
FX-36 T10CG,T7C Arbitrary 8CH Arbitrary - - T12FG (F8TM4405)
FX-36
T10-, T8-, T6., T6-,
T6L
Arbitrary 8CH Arbitrary - -
T12FG (F8TM4405)
and 9C (F8TM4415)
Trainer Cords
T14M=, FX-40, T12=,
T12FG,
FX-30
FX-36 Arbitrary 12CH Arbitrary 12CH -
T8FG, FX-20 FX-36 Arbitrary 12CH Arbitrary 12CH -
T10C, T10CG, T10-,
T9C, T7C
T7C, T8-, T6.
T6-
FX-36 Arbitrary - Arbitrary 8CH -
