Future Design FDC-8300 - Page 34

PV
Time
I actionI action
Perfect
TI too lowTI too low
TI too highTI too high
Set pointSet point
PV
Time
D actionD action
Perfect
TD too highTD too high
TD too lowTD too low
Set pointSet point
Figure 3.8 (Continued )
Effects of PID Adjustment
Figure 3.8 (Continued )
Effects of PID Adjustment
UM83001A-August-2024
34

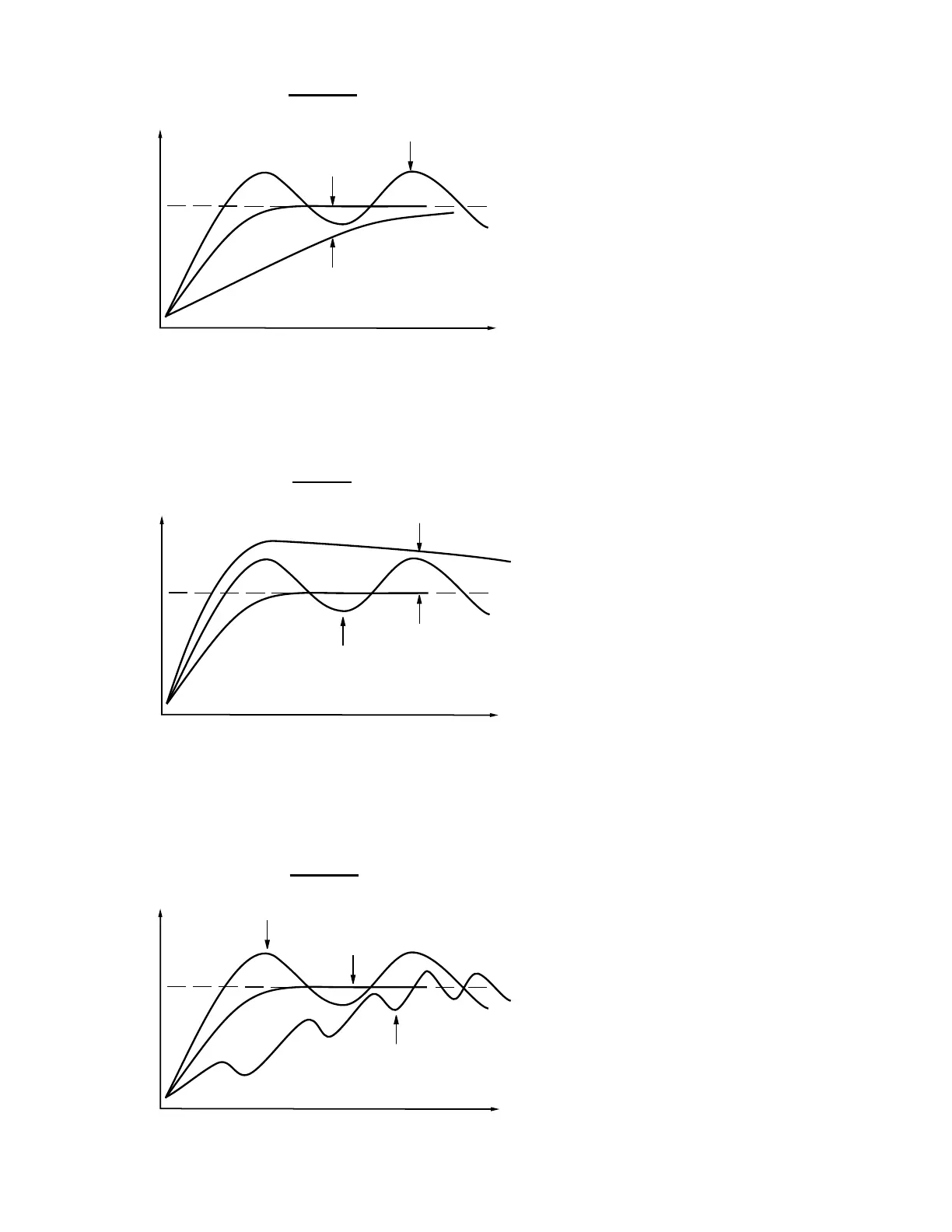

Figure 3.25 shows the effects of PID adjustment on process response.Figure 3.25 shows the effects of PID adjustment on process response.
Figure 3.7 Effects of PID
Adjustment
Figure 3.7 Effects of PID
Adjustment
PV
Time
P actionP action
Perfect
PB too widePB too wide
PB too narrowPB too narrow
Set pointSet point
