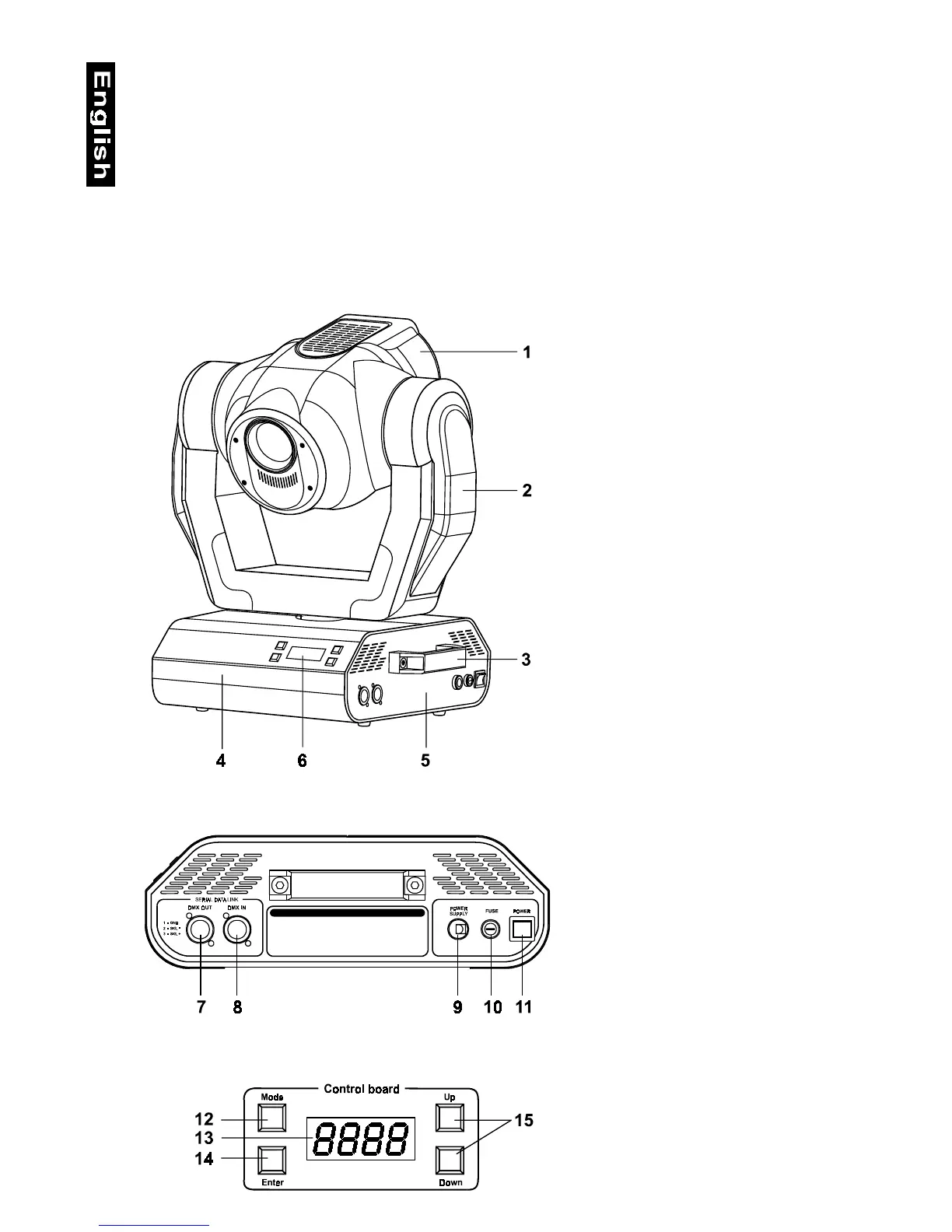

1 - Moving Head
2 - Moving arms
3 - Carring handles
4 - Base
5 - Base - side panel
6 - Control Board
Base - side panel:
7 - DMX-output
8 - DMX-input
9 - Powercord
10 - Fuseholder
11 - Power-switch
Control Board:
12 - Mode-button
13 - Display
14 - Enter-button
15 - Up/Down-buttons
digit LED display • Readout fixture and lamp usage, receiving DMX values, temperature, etc • Built-in analyzer for
easy fault finding, error messages • Remotely switching of the lamp • Built-in test sequence • Preprogrammed
variable/random strobe and dimmer pulse-effects • Macro-function for rotating gobos/rotating prism combinations
• Black-out while Head moving or gobo/colour/prism changing • Remotely controllable speed of Pan/Tilt movement
for easy programming • Remote reset function • Intelligent control panel with 4-digit LED display • Silent fans
cooling; remotely controllable speed of fans • 16 DMX-channels - 16 bit Pan/Tilt movement resolution • 14 DMX-
channels - 8 bit Pan/Tilt movement resolution • Pan-movement range 530° • Tilt-movement range 280° • 8/16 bit
movement resolution • Automatic Pan/Tilt position correction • High luminous-efficiency parabolic mirror and
double condenser system • 15° standard objective (12° and 18° optional) • All lenses are anti-reflection coated • 10
high-quality stepper-motors for smooth movements • Self-resetable thermo-fuse • For MSD/HSD 230 V/250 W
GY-9.5 or MSD/HSD 230 V/250 W GY-9.5 lamp • DMX-control via every standard DMX-controller • Suitable
FUTURELIGHT controllers: C-128 controller, CP-192 controller
2.2 Description of the fixture
