4. DMX-Protocol
4.1 Function of the control channels - 16 bit protocol

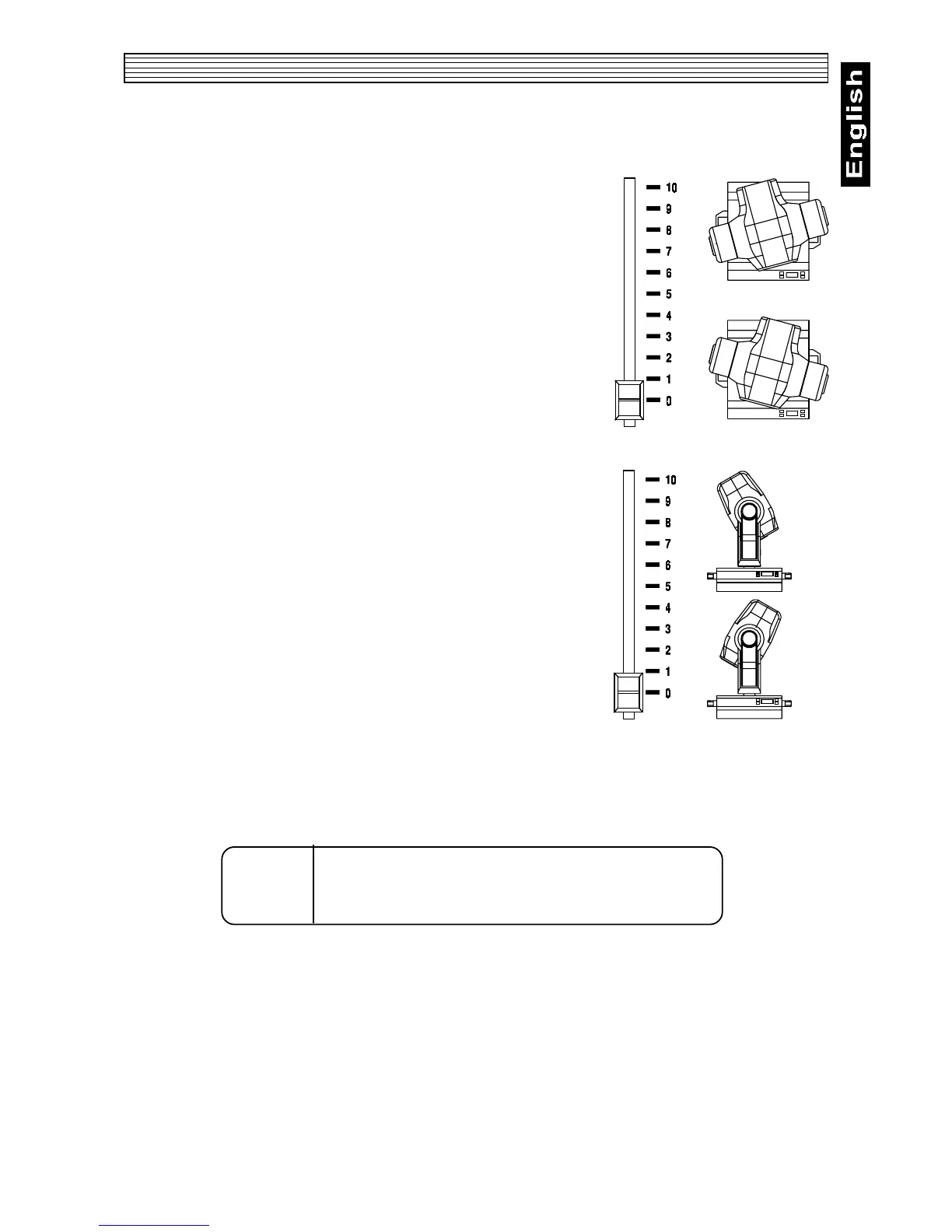

4.1.1 Channel 1 - Horizontal movement (Pan)
Push slider up in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other
(0-255, 128-center). The head can be turned by 530° and stopped
at any position you wish.
4.1.2 Channel 2 - Vertical movement (Tilt)
Push slider up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other
(0-255, 128-center). The head can be turned by 280° and stopped
at any position you wish.
4.1.3 Channel 3 - Pan fine 16 bit
4.1.4 Channel 4 - Tilt fine 16 bit
4.1.5 Channel 5 - Speed of PAN / TILT movement
0 Max speed
249 Min. speed
250-255 Max. speed, blackout while PAN, TILT moving or color,
rot. gobo or prism changes
