6 FOOTREST UPGRADED DUAL SWINGAWAY
540 –UM 1024402 REV08 10/2013 18 Capella / Capella 45
6 Footrest Upgraded Dual Swingaway
Installing Footrest Upgraded Dual Swingaway

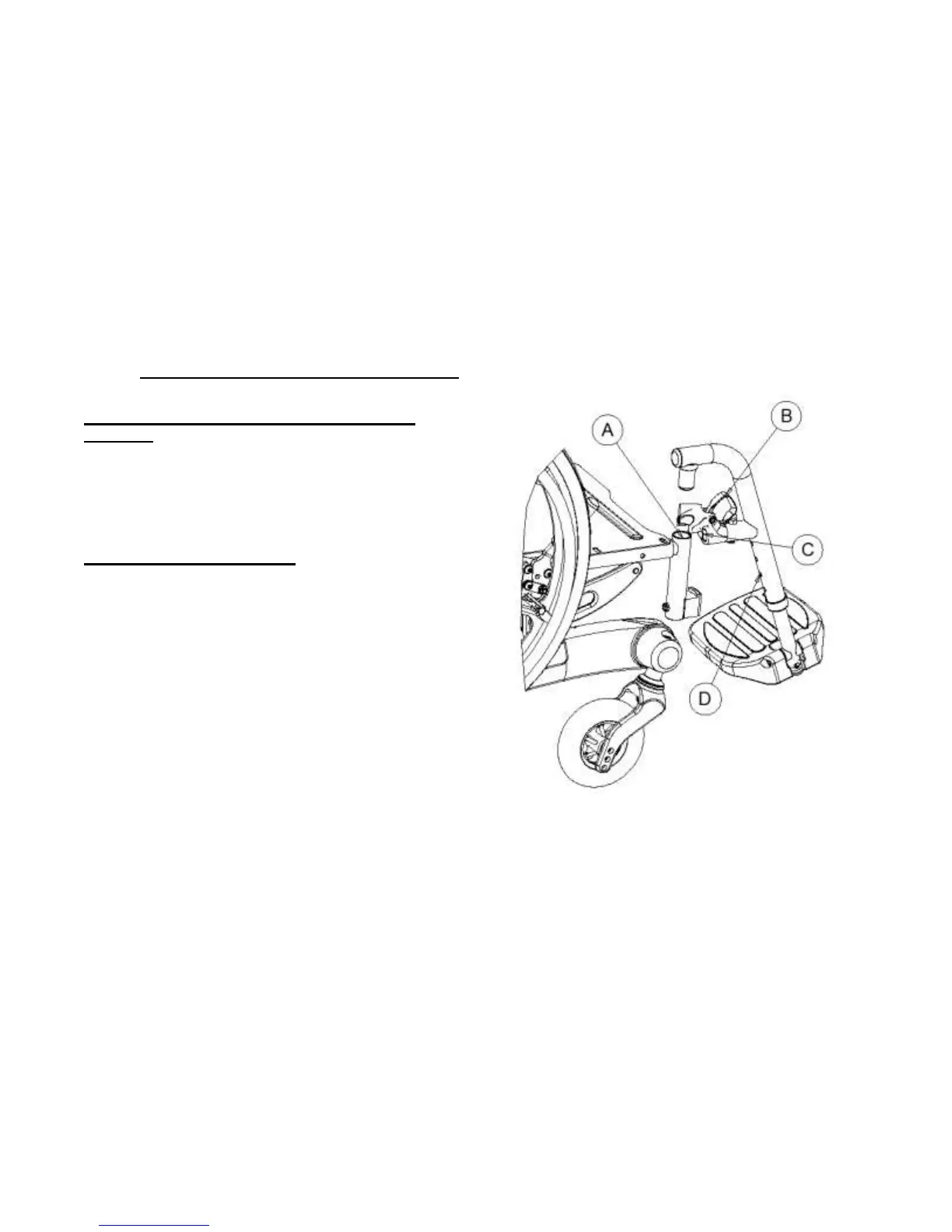

[Figure 5]
1. Position swing-away footrest onto hanger (‘A’)
ensuring pivot plug sits flush onto hanger tube.
2. To remove footrest pull up handle (‘B’) releasing latch
(‘C’) and swing footrest outward.
Footplate Length Adjustment
1. Loosen footrest bracket bolt from hole ‘D’. Slide
footrest extension tube up or down to desired height.
2. Tighten bolt.
Figure 5
