7 ELEVATING FOOTREST UPGRADED DUAL SWINGAWAY
540 –UM 1024402 REV08 10/2013 19 Capella / Capella 45
7 Elevating Footrest Upgraded Dual Swingaway

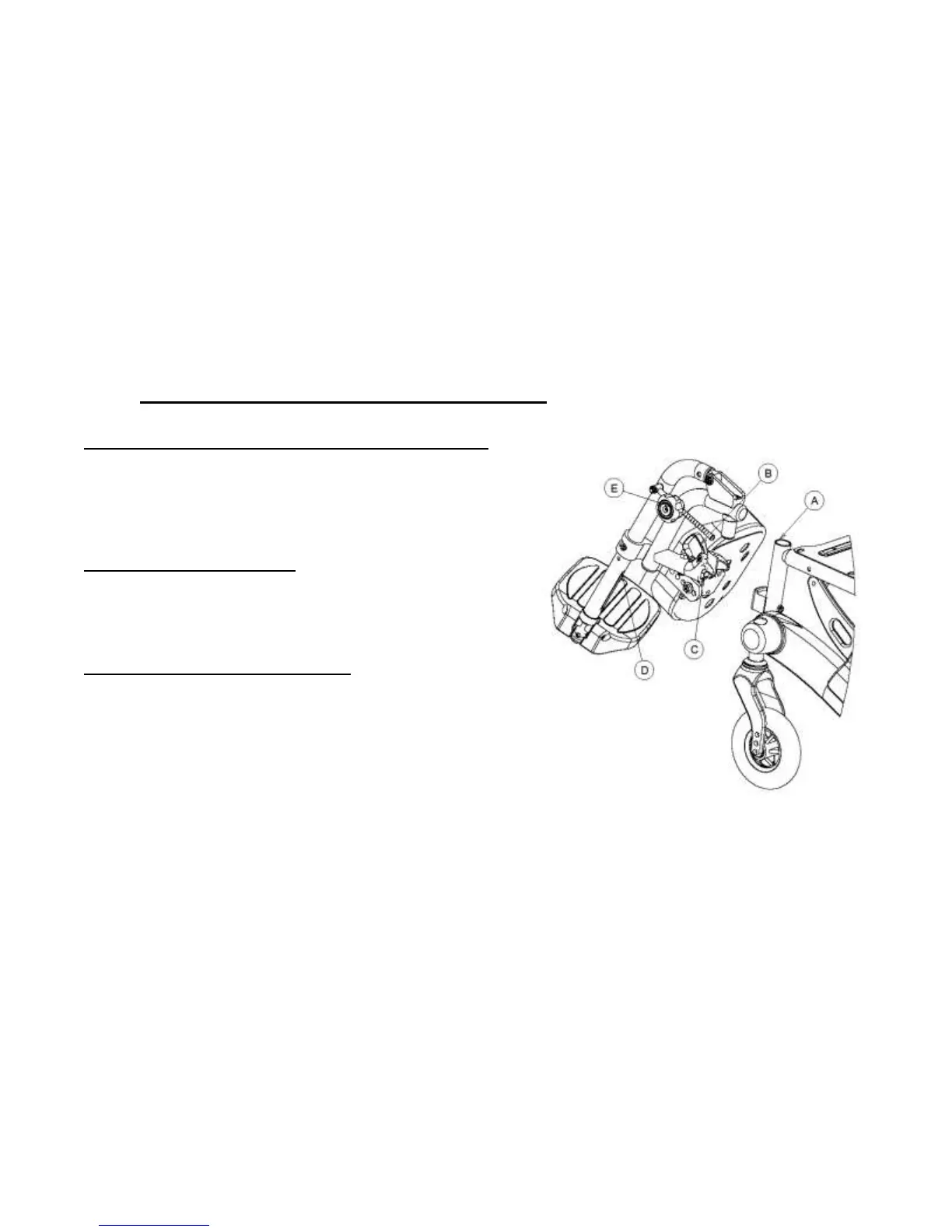

Installing Footrest Upgraded Dual Swingaway [Figure 6]
1. Position swing-away footrest onto hanger (‘A’) ensuring
pivot plug sits flush onto hanger tube.
2. To remove footrest pull up handle (‘B’) releasing latch (‘C’)
and swing footrest outward.
Footplate Length Adjustment
1. Loosen footrest bracket bolt from slot (‘D’). Slide footrest
extension tube up or down to desired height.
2. Tighten bolt.
Changing Angle of Elevating Legrest
1. Turn knob (‘E’) counterclockwise to release the elevating
legrest from being locked at an angle.
2. Grasp the elevating legrest outer part and slowly pull
towards oneself. The angle of the elevating legrest outer
part should become larger.
3. Set at desired angle and then turn knob (‘E’) clockwise to
‘lock’ the outer elevating legrest part in place.
4. Repeat for the other side if desired. Ensure that the legrest
is securely in place once adjustments have been made.
