8 CHAIR BACK
540 –UM 1024402 REV08 10/2013 20 Capella / Capella 45
8 Chair Back

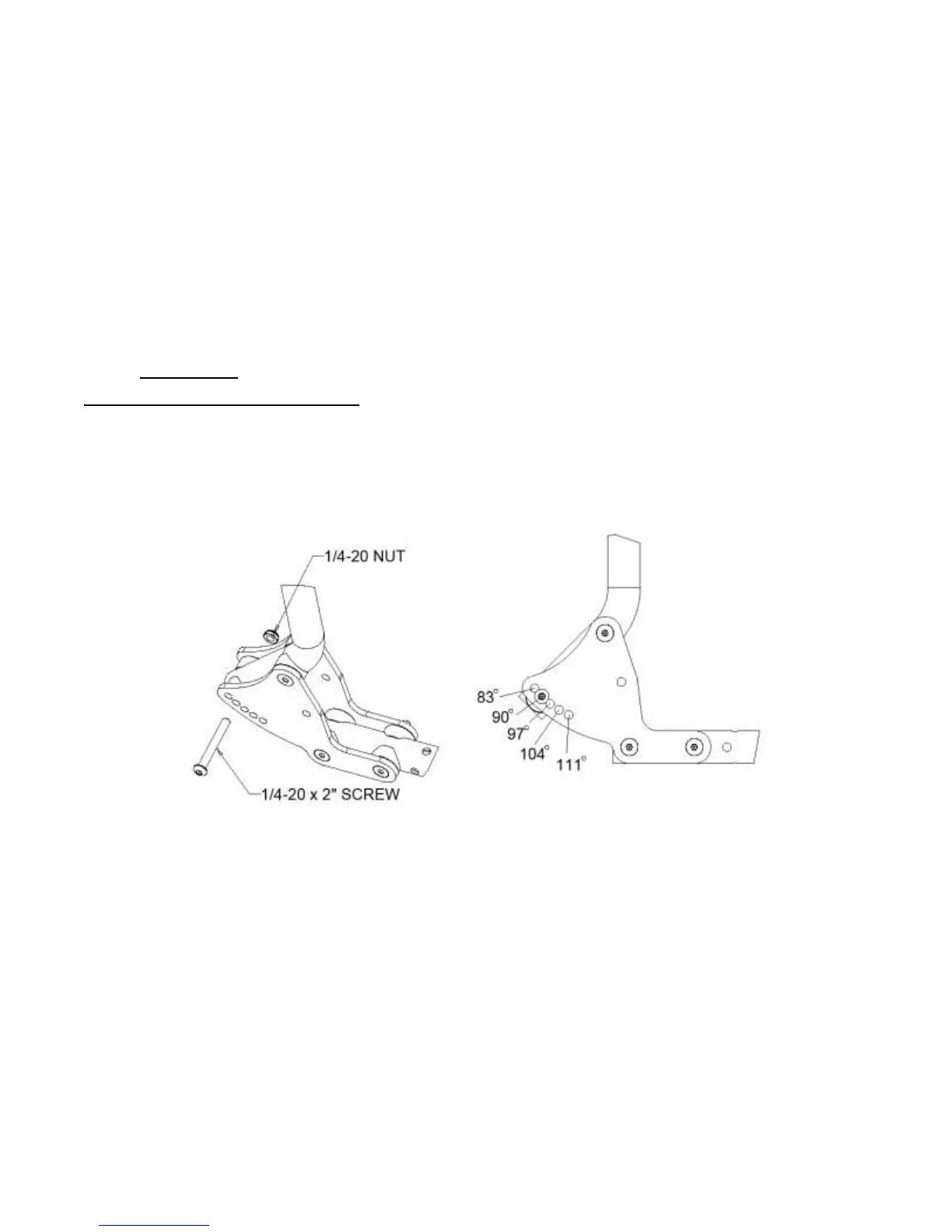

Adjusting Fixed Back Angle [Figure 7]
Manufacturer's setting is 90 degrees, with each hole representing 7 degree increments (holes range from 83 degrees to 111
degrees).
1. Remove nut and bolt on both sides of the back post.
2. Move back cane to desired angle and replace nuts and bolts making sure coved spacers are in place.
Figure 7
