12 FRONT CASTERS
540 –UM 1024402 REV08 10/2013 32 Capella / Capella 45

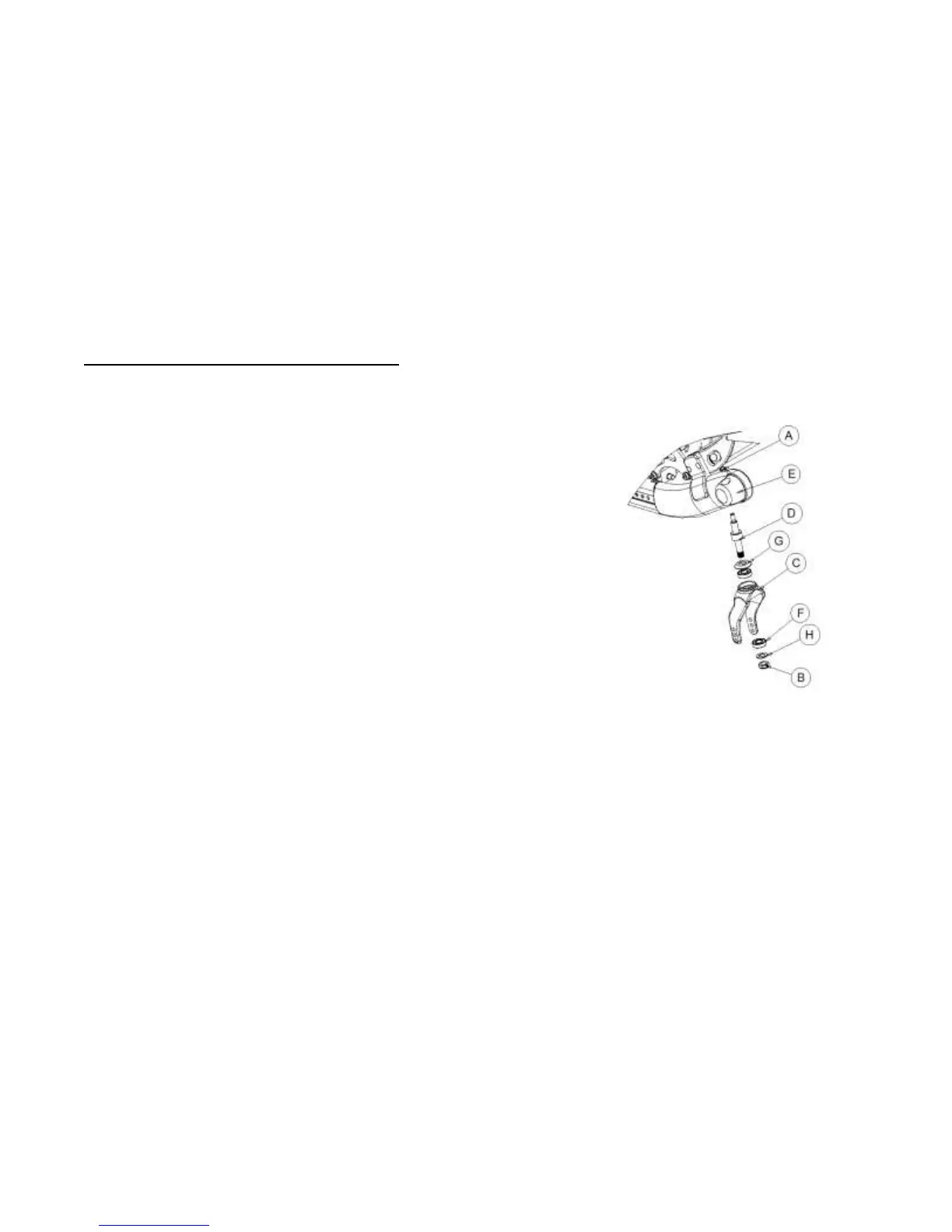

Replacing/Installing Front Forks [Figure 20]
1. Remove the locknut (‘A’) which secures the caster stem bolt (‘D’) to
the caster housing (‘E’).
2. Drop the front caster and fork assembly out of the caster housing.
3. Remove the locknut (‘B’) which secures the caster stem to the fork
(‘C’)
4. Also Remove the bearing (‘F’), Fork spacer seal (‘G’) and nylon spacer
(‘H’)
5. Follow REPLACING/INSTALLING FRONT CASTERS guide in this section
to remove the front caster from the fork assembly.
6. Place the caster in the new fork and assemble with the caster nut and
bolt and spacer.
7. Secure the new fork and caster assembly in place by using the locknut
and caster stem bolt.
8. Follow steps 5 to 9 of REPLACING/INSTALLING FRONT CASTERS guide
to properly install the new fork assembly and prevent fluttering.
Figure 20
