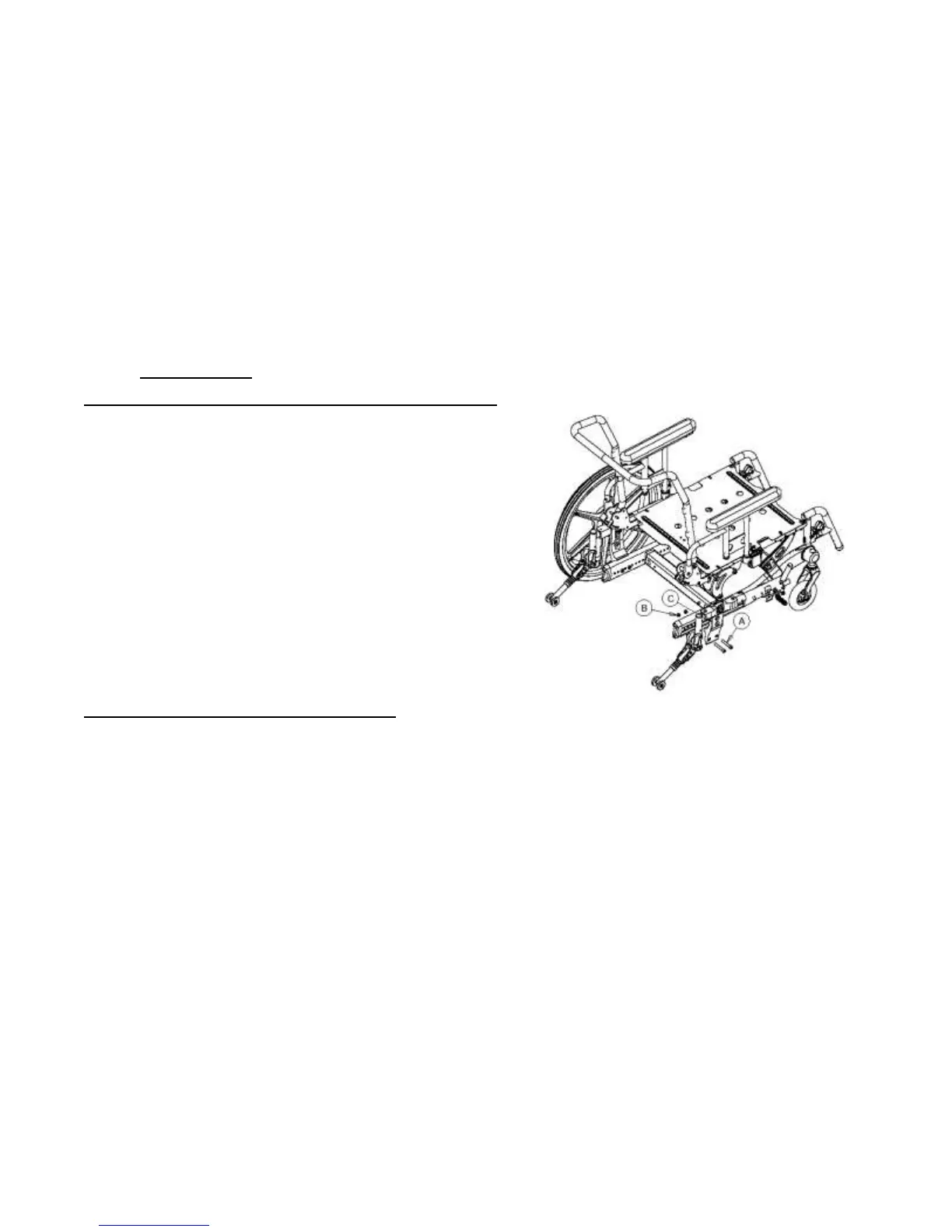

Changing Horizontal Location of Rear Wheels [Figure 14]
1. Remove the Rear wheels following the instructions in
section “Removing/Installing Rear Wheels”.
2. Remove two(2) 5/16-18 x 2” socket cap screws and two(2)
5/16-18 nuts from the wheel lock/anti-tip assembly.
3. If the seat depth is increased by 1” (from 15” to 16”) move
the wheel lock/anti-tip assembly backwards by 1” and insert
the two(2) 5/16-18 x 2” socket cap screws and two(2) 5/16-
18 nuts into the ‘new’ hole locations. If the seat depth is
decreased by 1” (from 16” to 15”) move the wheel lock/anti
–tip assembly forwards by 1” and insert the screws and
nuts.
4. Repeat steps #2 and #3 for the other side of the chair and
ensure the screws on both sides of the wheelchair holding
the wheel lock/anti-tip assembly are inline.
Changing Vertical Location of Rear Wheels
See section marked SEAT TO FLOOR
