Installing Anti-Tippers [Figure 25]
1. Bolt the anti-tip assembly (‘B’) onto the anti-tip mount tube
weldment (‘A’) at the desired height
2. Measure the distance between the bottom of the anti-
tipper wheels and the ground/floor.
3. If the distance between the bottom of the anti-tipper
wheels and the ground/floor is not 1-1/2” to 2” adjust the
anti-tipper location.
Note: A 1 1/2” to 2” clearance between the bottom of the anti-
tipper wheels and the ground/floor MUST be maintained at all
times.
Changing Vertical Location of Rear Wheels [Figure 26]
1. Pull the sleeve (‘A’) downwards on the tube to release the
pin engagement
2. Rotate the Anti-tip assembly (‘B’) upwards until the pin
engagement is at the top position.

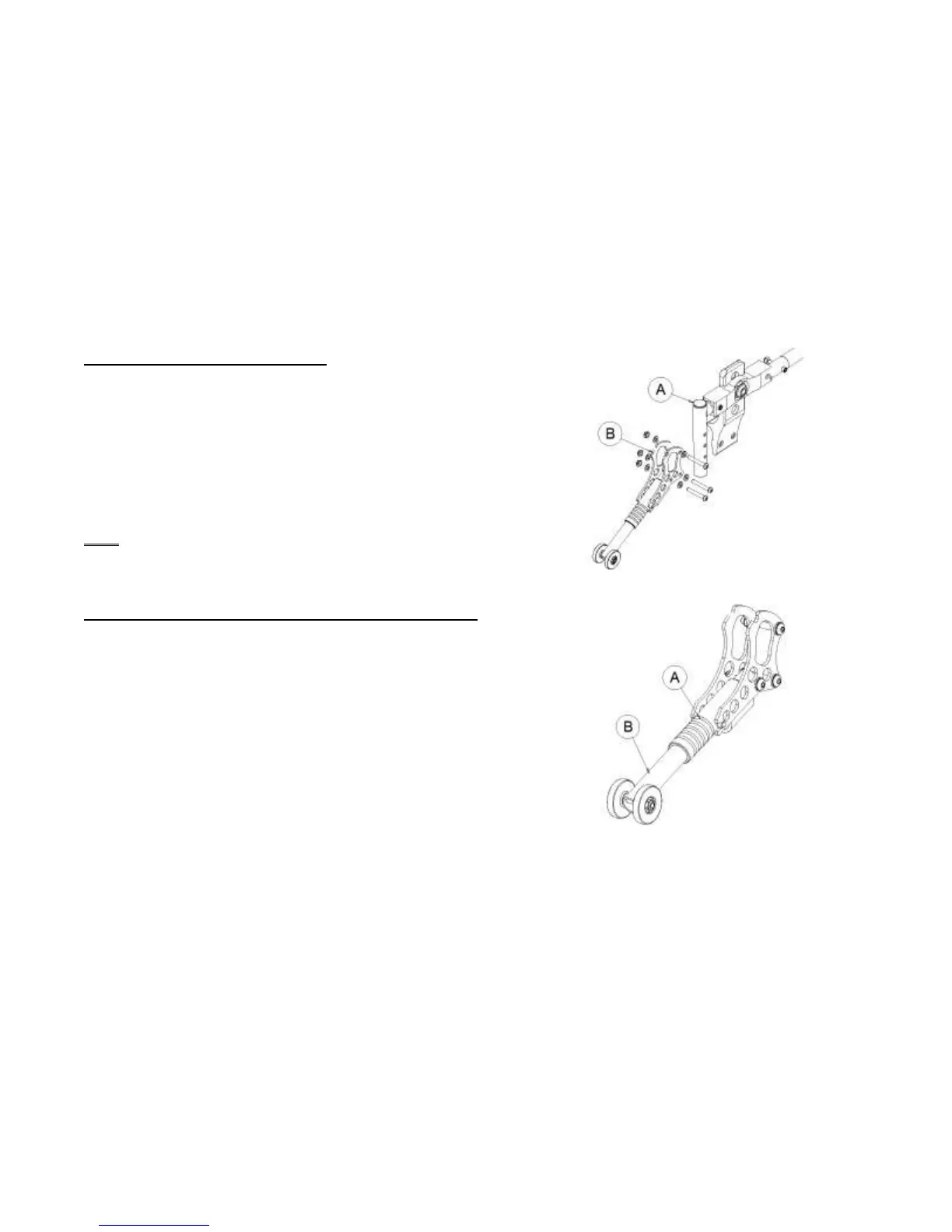

Figure 25
Figure 26
