Lf1390 series fiber cutting machine’s electric control system is mainly
composed of servo system, control system, movable system and low voltage
electrical system.

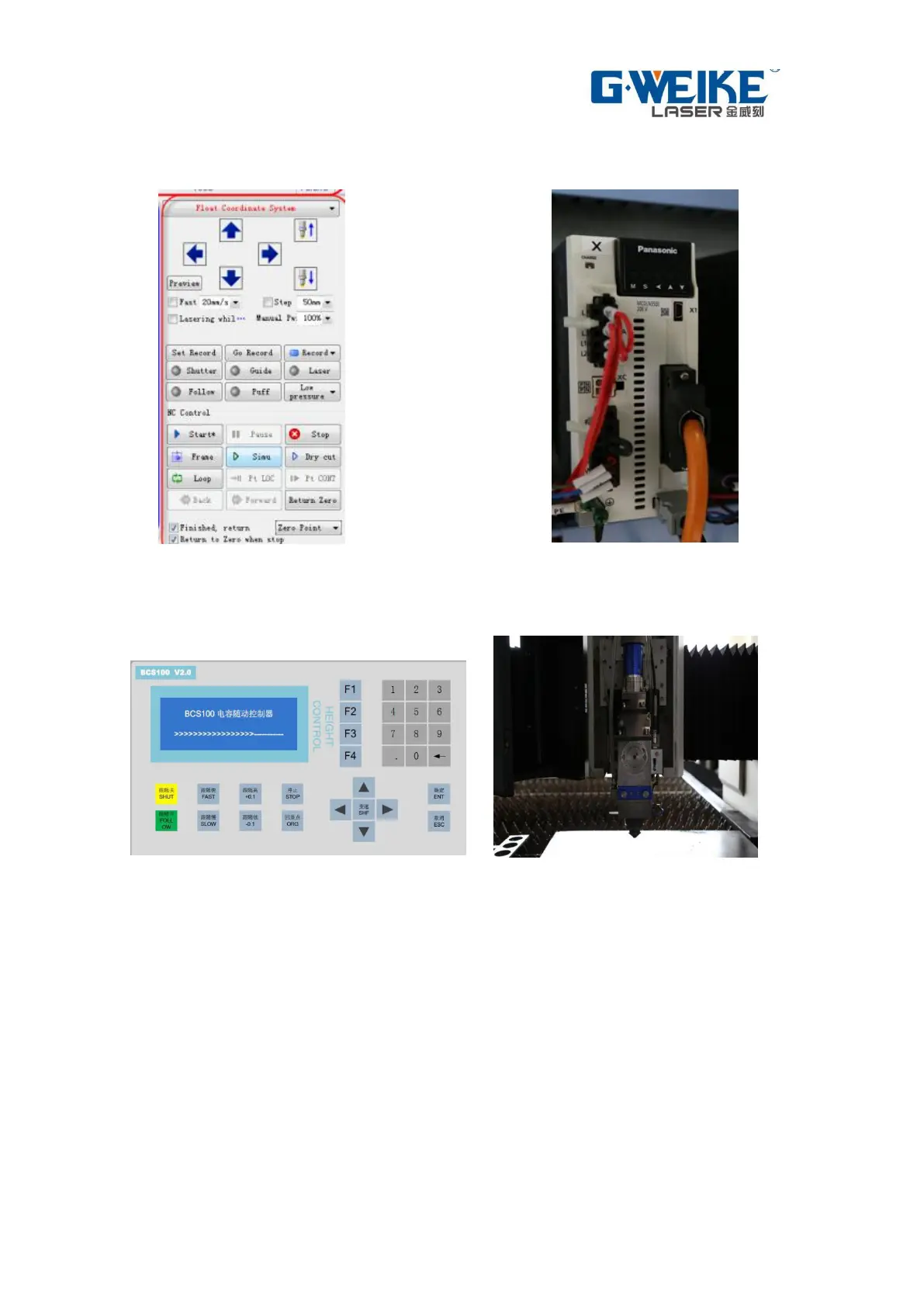

Picture 2-1 Software operating main interface Picture2-2 servo system
Picture2-3 Calibration operation main interface Picture2-4 Cutting head
2.6 Function, structure and working principle, working
characteristic of the auxiliary device
2.6.1 Gas path system
The gas path of the optical fiber cutting machine is provided with cutting gas
(compressed air, high purity oxygen and high purity nitrogen) to the cutting
head.
Cutting gas can be divided into oxygen and nitrogen, oxygen is mainly
used for cutting ordinary carbon steel; Nitrogen mainly used for cutting
