emergency to stop operation of the equipment. After the completion of the
processing reference" 4.2 machine shutdown procedures "
5.4 Regulating gas pressure
Open the pressure table: first loosen(t u r n l e f t t h e k n o b ) the pressure
adjusting knob and then open the gas bottle,then adjust the valve to insure the
pressure is in the safety range(please refer(chapter4.5) the finally according to
gas pressure button on the operation system to adjust outlet pressure.
5.5 Adjust nozzle light
Laser Position Adjustment
When adjust the focus position, the system can not be pressured(no cutting
pressure) and shut down the distance sensor system.
Caution:Laser Adjustment Error
Be very carefully to adjust the laser position, it may result in damage in laser
cutting procedure if improper adjustment.

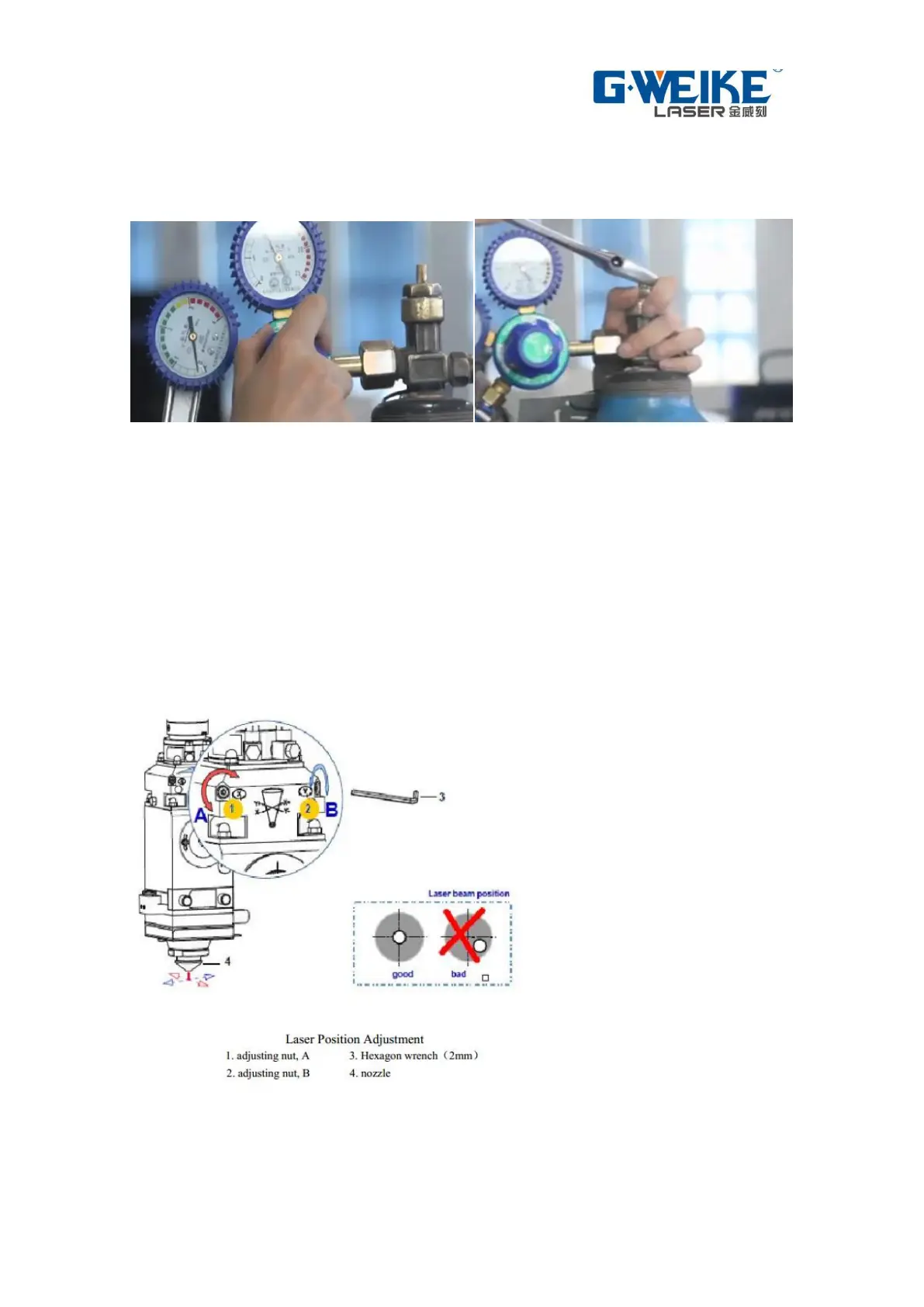

Picture 5-15
Use two adjusting nut(“1”,”2” on picture5-15) to adjust the beam position
Adjusting range: ±1,5 mm Tool: Hexagon wrench(2.5mm)
