40
If the device manufacturer has no other proposal, you can adjust like follow
procedure:
1. Choose a wide opening nozzle, its opening diameter should be larger than the
beam diameter, if the nozzle’ s opening size is too small, then remove it.
2. Paste gummed paper on the nozzle opening.

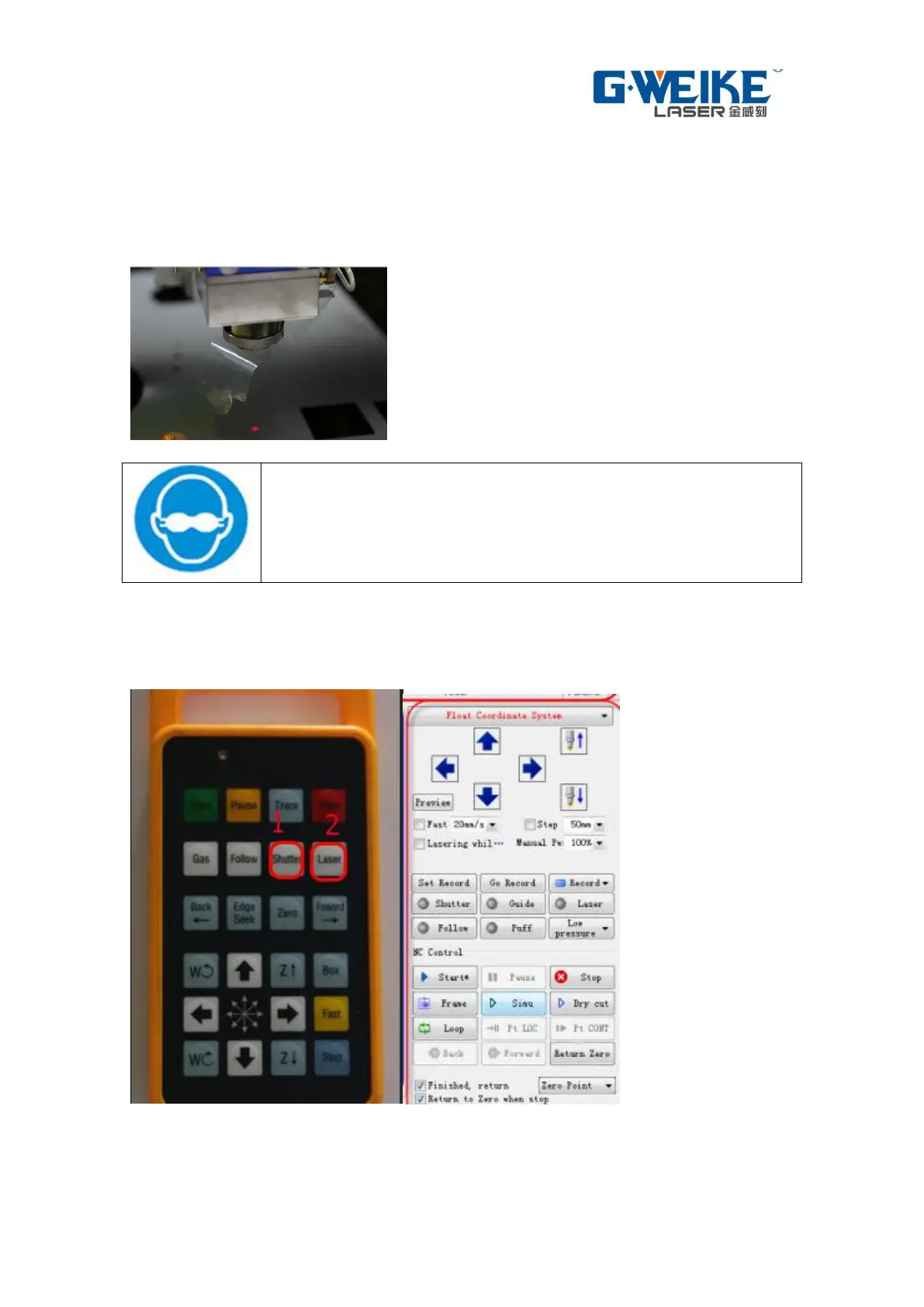

Caution: press the “shutter” button make sure the red dot like picture 5-16
is on before paste the gummed paper on the nozzle.
Picture 5-16
Caution: Please wear laser protective glasses. It may cause
level 4 laser in actual use and may hurt your eyes.Do not look
directly on the laser in any case, even if you wear some
protective devices.Use standard protective glasses.
3. You can use the handle or click the button on the operation system Press the
“SHUTTER” button to turn off the red dot →Press “LASER” button to release the
laser beam.→ Press the “SHUTTER” button to turn on the red dot. To penetrate
gummed paper on the nozzle and check the paper whether the hole is round or
in the center, if not, adjusts the lens.
Picture 5-17 Picture 5-18
4. Make the laser position aligned and centered by adjusting the two nuts(picture
5-6 “1”,”2”) on the laser head.
Pay attention: the maximum adjusting range is ±1.5 mm.
