when dismantle the laser head from the machine body. And the dismantle of the
laser head are totally reverse with the install process. So we just list the
dismantle in this manual.
Dismantle of Focal Lens
1.Turn left the instrument to loose the four nuts
2.Remove the dismantled parts then loose the other four nuts
3.Put aside the protective lens(if don’t need to clean), loosen 4 M3 flat head screws under the
protective lens holder, take down the protective lens holder and then get down the focal lens
barrel by professional wrenches

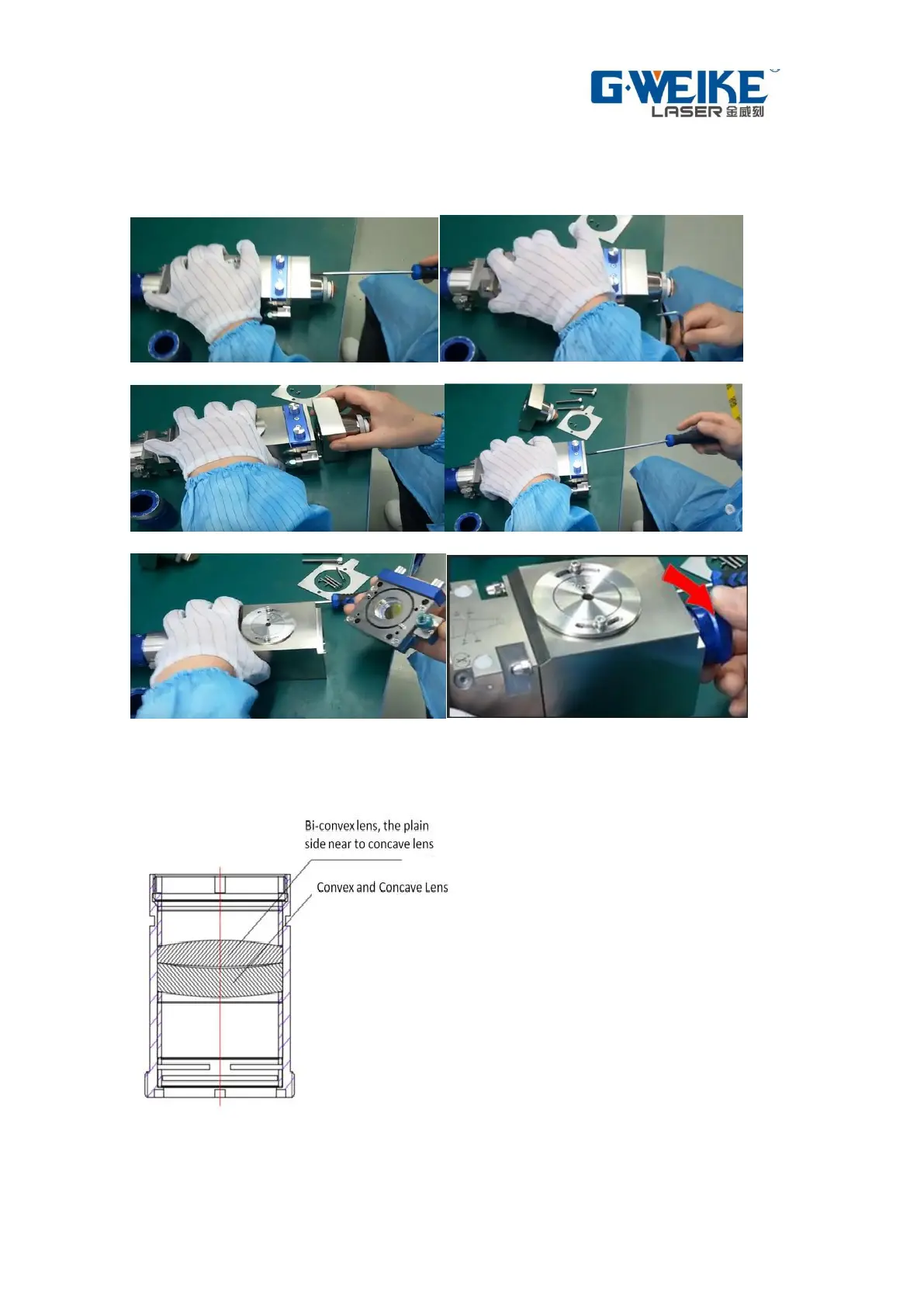

Picture 6-4
Caution:Please put the different kinds of lens in the right position as the picture
6-4.
