6. Usage and Maintenance

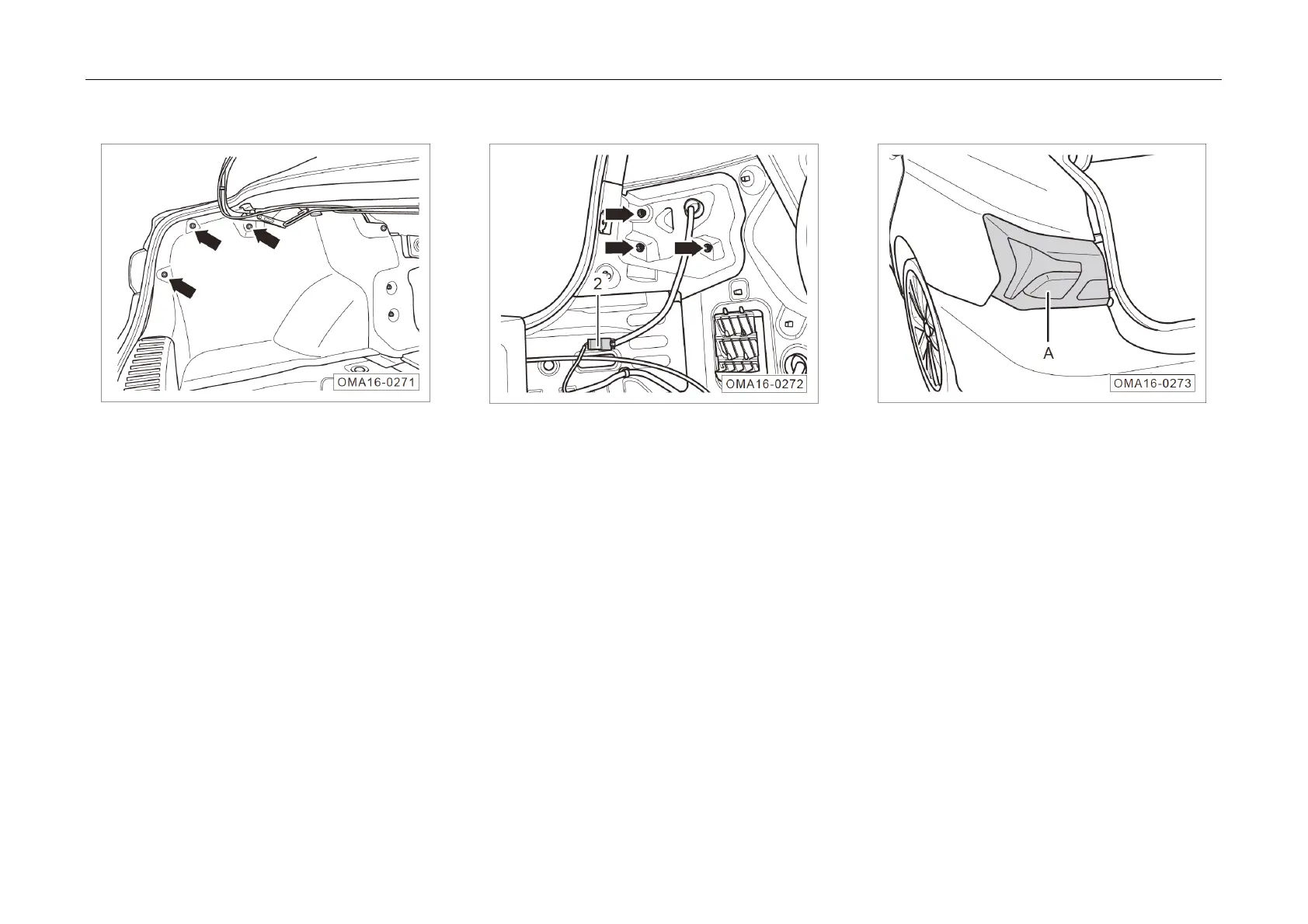

Removi
ng Rear Combination Light A
1. Switch
off the Start or Ignition switch.
2. Open the trunk lid.
3. Prise out the fixing plastic nails ① and open
the trunk side trimming.
4. Disco
nnect the connector ② of rear
combination light A.
5. Unscrew the fixing nuts (see arrow) of rear
combination light A.
6. Remove
the rear combination light A
backwards.
7. Generally, perform the installation in the
reverse order of removal procedures
