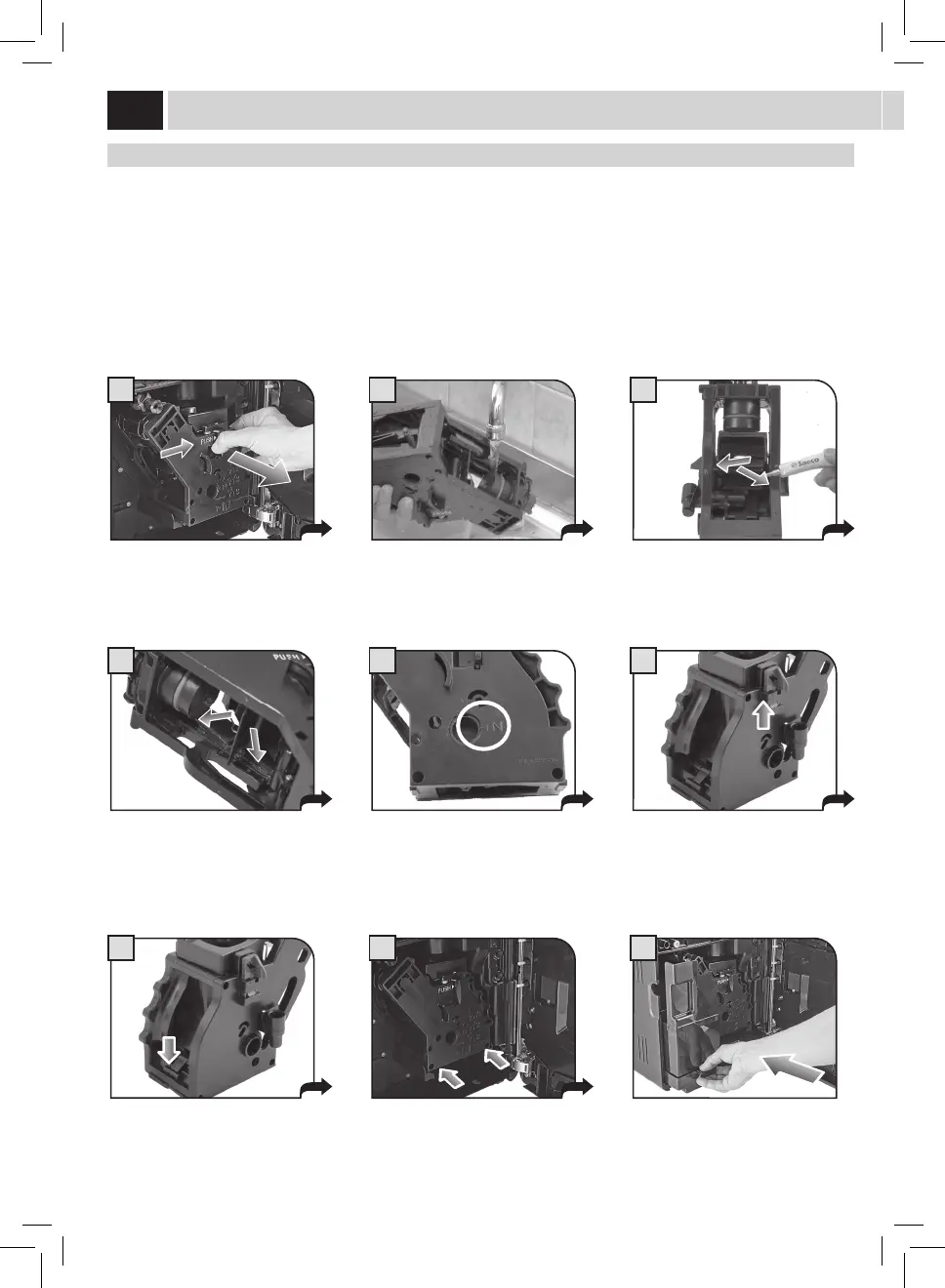

42
1
4
7
3
6
9
2
5
8
MILK CARAFE ASSEMBLY
Pay attention during the assembly phase. In case the components do not smoothly enter in their positions, read the instructions more
carefully and repeat the assembly procedure.
Note: The inner side of the service door shows a quick guide on how to reassemble the carafe.
Insert the inner tting in the hose and
press until fully inserting it.
Insert the unit previously assembled
in the cover base. Pay attention to the
reference.
Fit the cover on the carafe.
Insert the hose in the outer tting.
Rotate the handle clockwise up to the
( ) symbol.
The carafe is now ready for use.
Insert the outer tting in the inner
tting. Refer to the arrow in the gure for
the direction of insertion.
Insert the outer cover in the base guides.
Rotate the handle anti-clockwise to
bring it to the locked position.
CLEANING
