GALaxy eHydro Elevator Controller Section 6 – Main CPU Faults & Detailed Faults
6-114

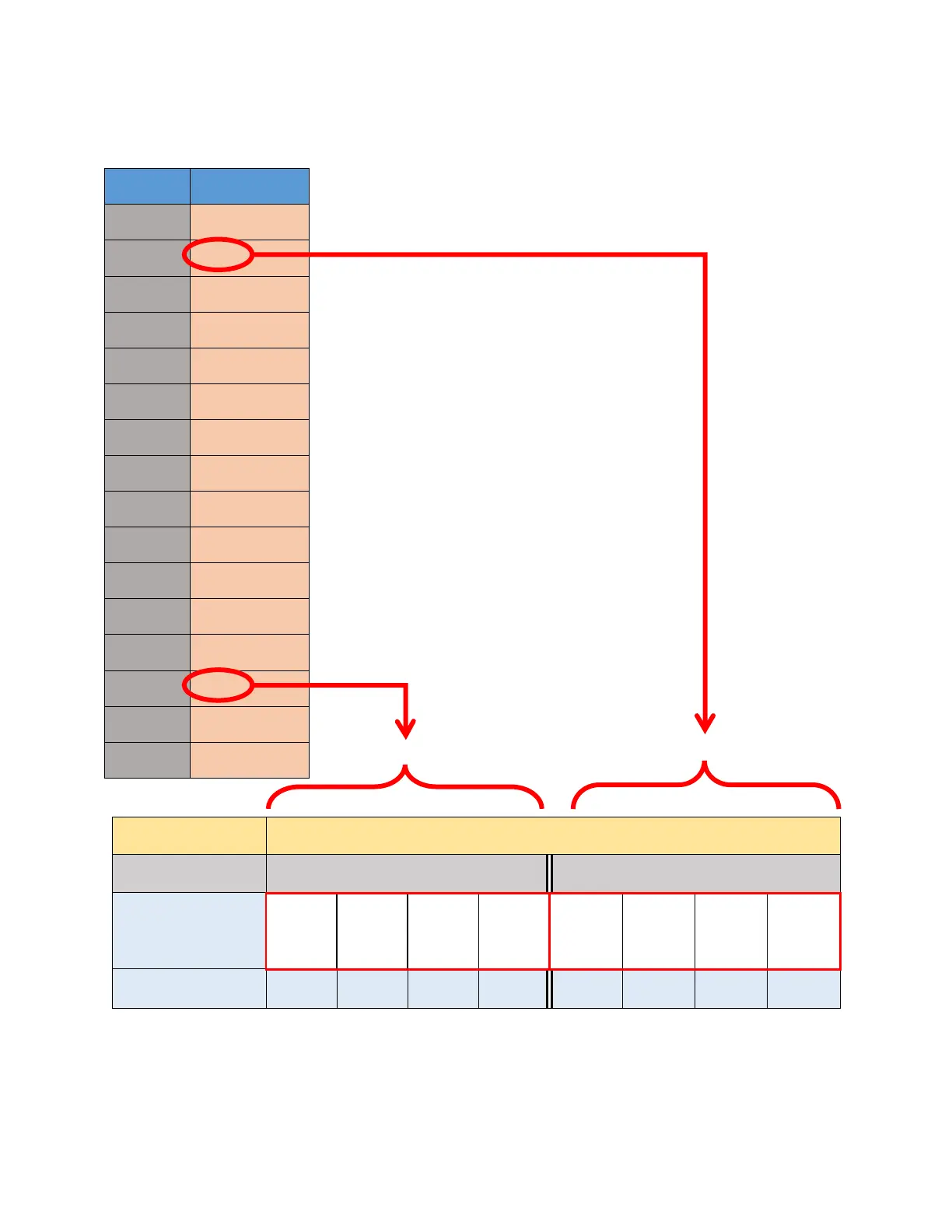

Place the Binary value for D (1101) in the first four bit locations and then place the binary value for 1
(0001) in the last four bit locations.
HEX
BINARY
0
0 0 0 0
1
0 0 0 1
2
0 0 1 0
3
0 0 1 1
4
0 1 0 0
5
0 1 0 1
6
0 1 1 0
7
0 1 1 1
8
1 0 0 0
9
1 0 0 1
A
1 0 1 0
B
1 0 1 1
C
1 1 0 0
D
1 1 0 1
E
1 1 1 0
F
1 1 1 1
I/O BLOCK
IO0
HEX VALUE
D
1
BINARY
Inputs 0=OFF 1=ON
Outputs 0=On 1=Off
1
1
O
1
0
0
0
1
I/O NAME
SDi
SD
SDF
SDFi
SUi
SU
SUFi
SUF
