GALaxy eHydro Elevator Controller Section 2 –Installation
2-17
• Move the car on inspection so that it is exactly level with a floor.
Pressing the door open button, while moving the car on inspection, will change the
inspection speed to 3 fpm during the inspection run. This allows the car to be positioned
at exactly floor level. The inspection speed will return to the value set for “Inspect Speed”
in the “Car Motion” Sub Menu when the door open button is not pressed.
• Adjust the J-hook bracket and guide clip so the door zone bridge is positioned at the
midpoint between the two APS cameras. If the alignment spotlights are not visible,
temporarily obstruct the field of view of the APS camera for 5 seconds, and then remove
the obstruction. Two red alignment spotlights should appear on the encoded tape. See
Figures 2-15 and 2-20.

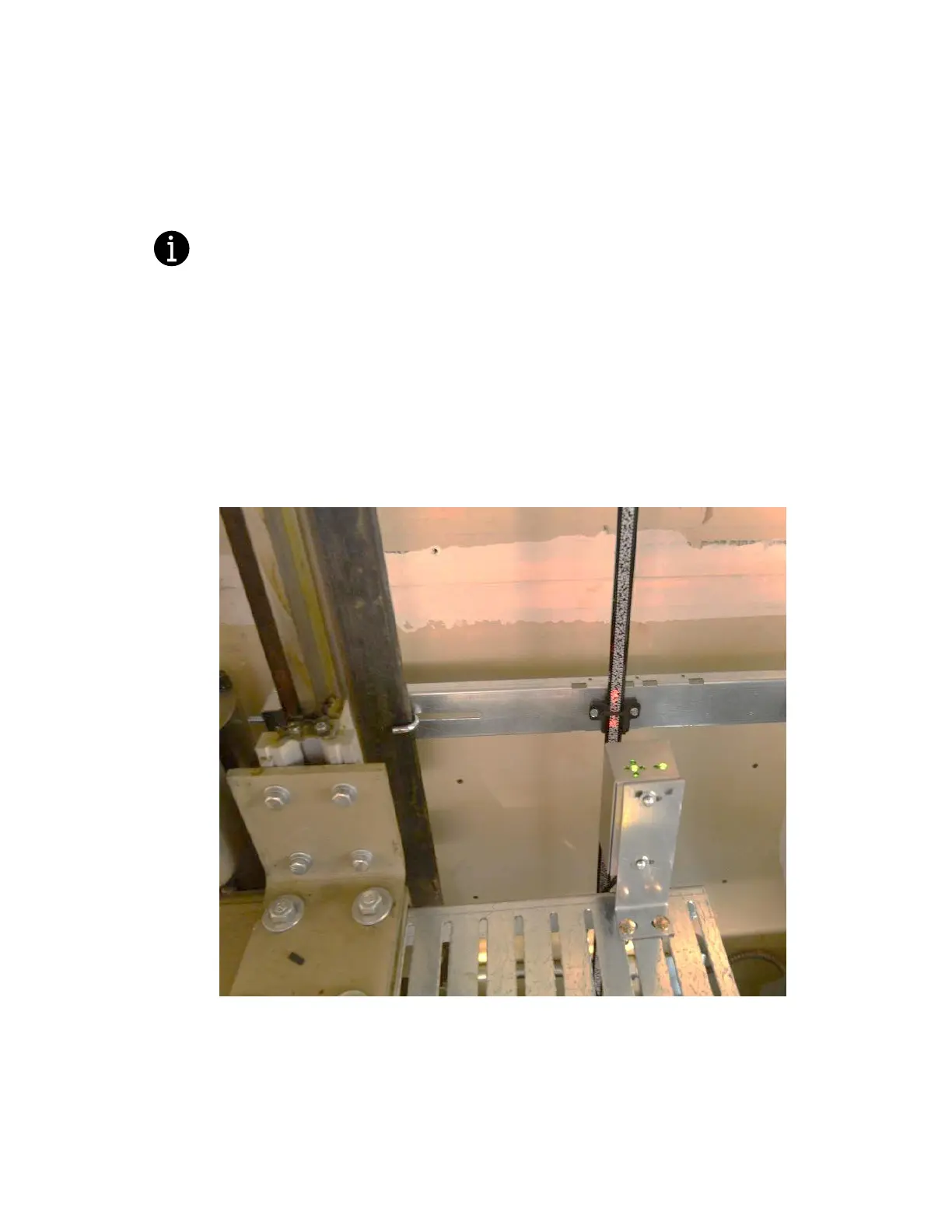

Figure 2-20: APS Selector Alignment Spotlights
