Console module »DP-HR-CON-Fiber«
Computer and console modules (DP-HR) · 114
Back panel

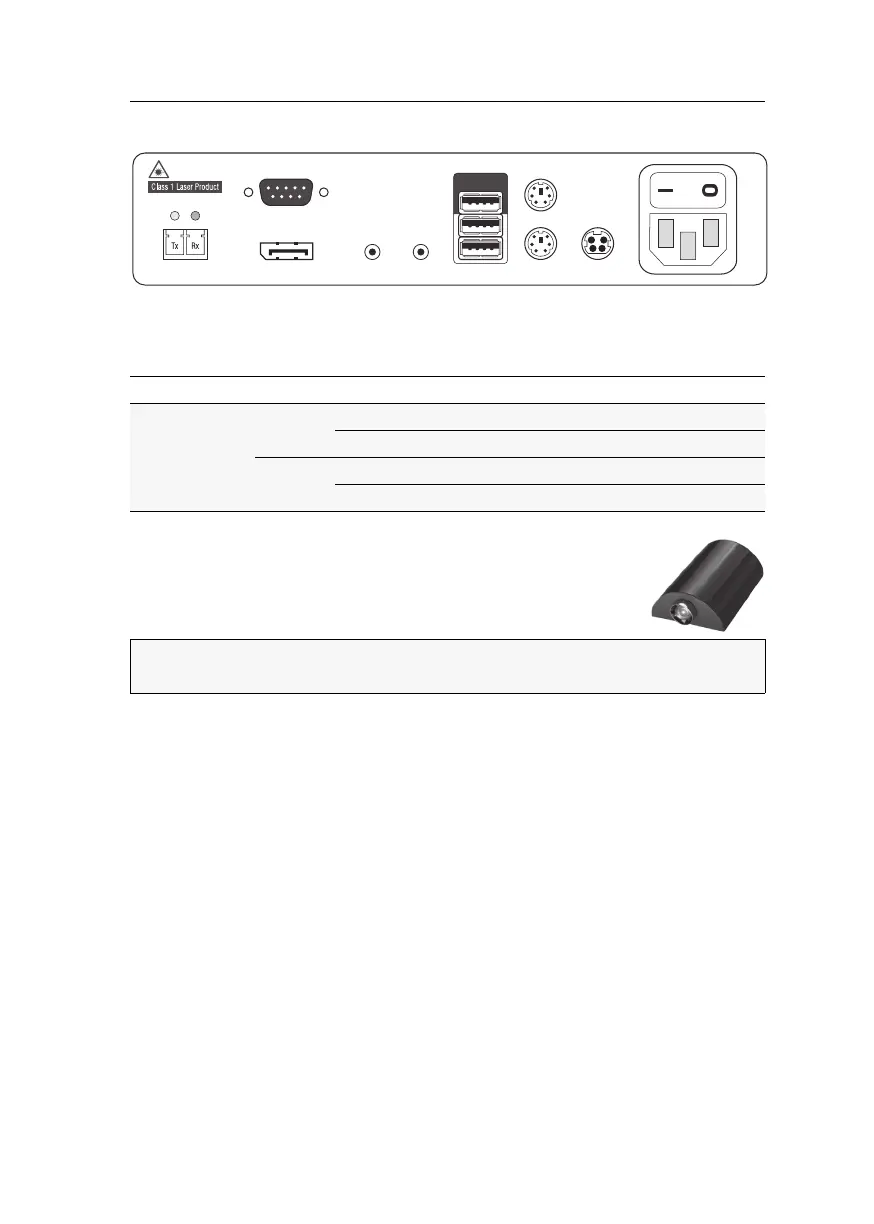

The Transmission interface at the back panel of the console module provides addi-
tional status LEDs. The LEDs have the following meaning:
TradeSwitch-LED
The optional TS-LED (order number A6100041) lights if the
keyboard and mouse signals of a leader console are accessing
the console module.
Interface LED Status Meaning
Transmission Yellow Off No data connection to the counterpart.
Flashing Data connection to the counterpart established.
Green Off No user is logged in at the console module.
On A user is logged in at the console module.
NOTE:
Keyboard and mouse signals can only access another console module or a
computer if you activated the TradeSwitch function for the matrix switch.
