Computer module »DP-HR-CPU-Fiber-DH«

Computer and console modules (DP-HR) · 66

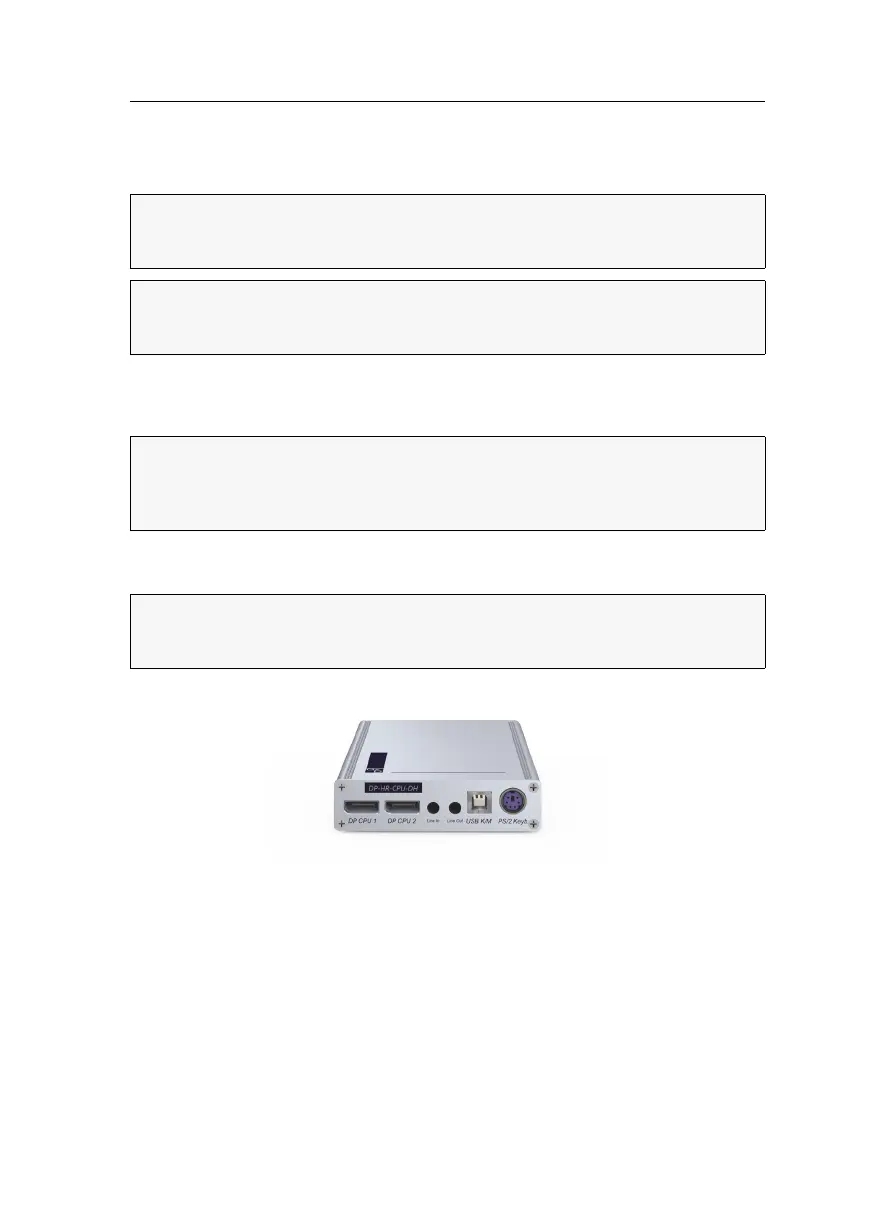

Computer module

»DP-HR-CPU-Fiber-DH«

With the DP-HR-CPU-Fiber-DH computer module you can connect a computer with up

to two

DisplayPort graphics outputs (dual monitor) to a digital matrix switch of the

ControlCenter-Compact or ControlCenter-Digital series by using one cable only.

Users at the consoles of the matrix switch can access the computer module and operate

the connected computer.

NOTE:

This computer module can be connected to a compatible fiber port of

ControlCenter-Compact matrix switches or ControlCenter-Digital matrix switches

(requires CCD-I/O 16-Card-Fiber).

IMPORTANT:

Both, the computer module and the fiber ports are available as single-

mode variants or as multimode variants. Make sure that the port at the computer

module, the fiber port and the optical fibers are compatible with each other.

ADVICE:

If you use the first video channel only, you are able to display resolutions

up to 4096

× 2160 @ 30 Hz (4K). Using both video channels allows resolutions up

to 1920

× 1200 @ 60 Hz. Detailed information about the supported resolutions is

given in the chapter

Technical data on page 70.

ADVICE:

At consoles with only one monitor, use the key combination

Alt+arrow right to switch to the video stream of the computer's second video output

(see page 183).
