Computer module »DP-HR-CPU-DH-UC«
Computer and console modules (DP-HR) · 60

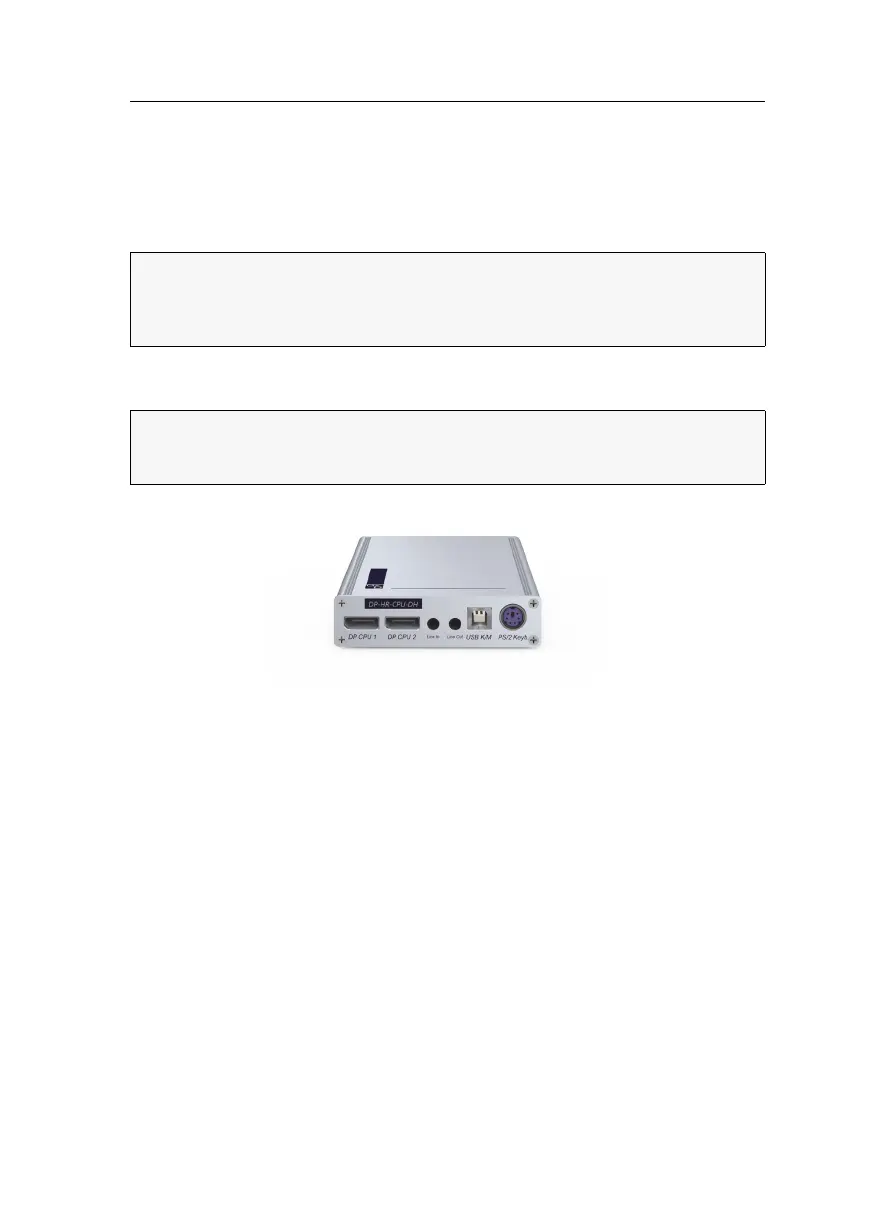

Computer module »DP-HR-CPU-DH-UC«
With the DP-HR-CPU-DH-UC computer module you can connect a computer with up to
two
DisplayPort graphics outputs (dual monitor) to two different digital matrix
switches of the ControlCenter-Compact or ControlCenter-Digital series by using one cable
only.
At the consoles of both matrix switches, users can access a computer module to
operate the connected computer.
Package contents
 1 × Computer module DP-HR-CPU-DH-UC
 2 × DisplayPort video cable (DP-Cable-M/M-2)
 1 × USB device cable
 2 × Audio cable
 1 × Power pack (12V/2A, only with variants incl. PowerPack)
 1 × Power cable (only with variants incl. PowerPack)
 1 × »Manual information« flyer
 1 × »Safety instructions« flyer
Required accessories
 2 × Category 5e (or better) twisted pair cables to connect the computer module to
two different matrix switches
ADVICE: If you use the first video channel only, you are able to display resolutions
up to 4096
× 2160 @ 30 Hz (4K). Using both video channels allows resolutions up
to 1920
× 1200 @ 60 Hz. Detailed information about the supported resolutions is
given in the chapter
Technical data on page 64.
ADVICE: At consoles with only one monitor, use the key combination
Alt+arrow right to switch to the video stream of the computer's second video output
(see page 183).
