Computer module »DP-HR-CPU-DH-UC«

61 · Computer and console modules (DP-HR)

Installation

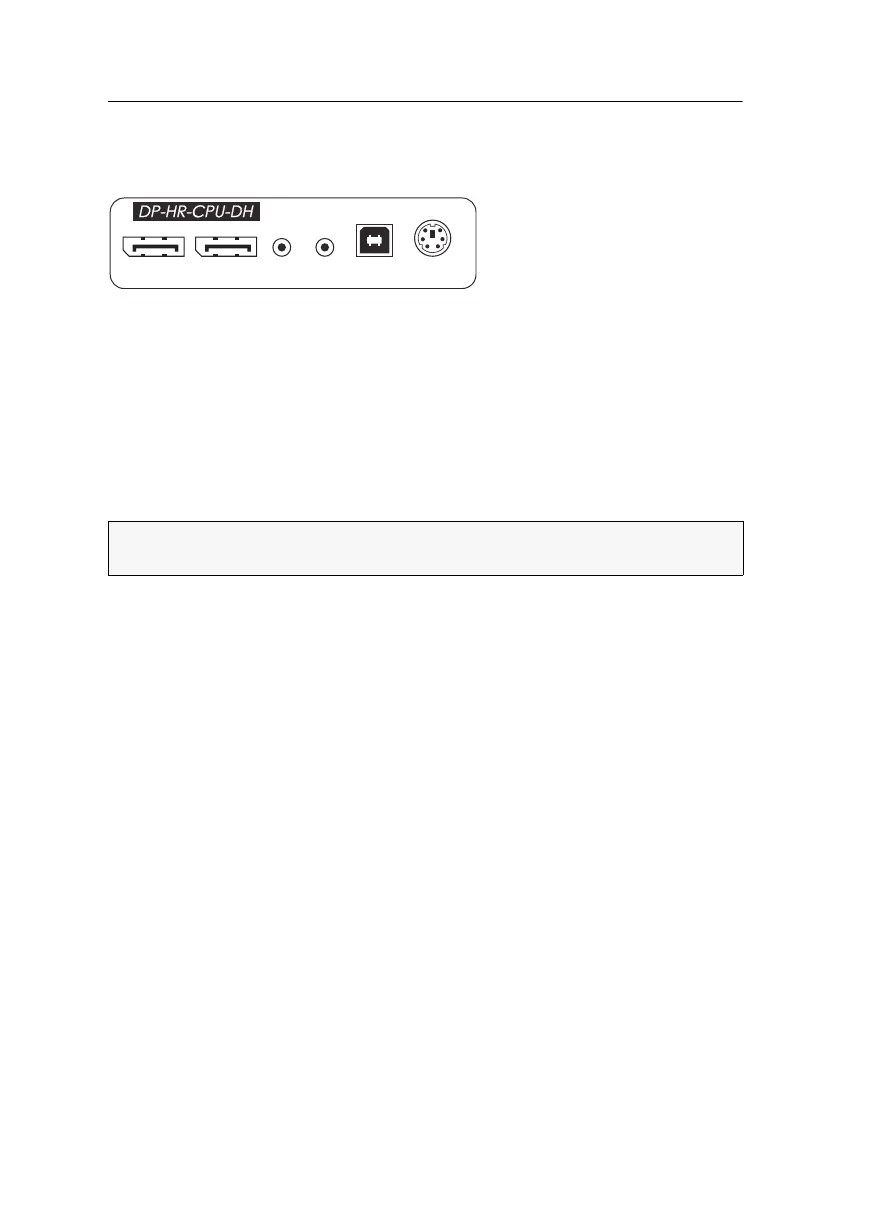

Connecting the computer

DP CPU 1: Use one of the supplied video cables to connect the computer’s first Display

Port video output to this interface.

DP CPU 2: Use one of the supplied video cables to connect the computer’s second Dis-

play Port video output to this interface.

Line In: Use one of the supplied audio cables to connect the computer’s Line Out

interface to this interface.

Line Out: Use one of the supplied audio cables to connect the computer’s Line In inter-

face to this interface.

USB K/M: Use the USB device cable to connect one of the computer’s USB interfaces

to this interface.

PS/2 Keyb.: Use the optional PS/2 cable to connect the computer’s PS/2 keyboard

interface to this interface.

NOTE:

Keyboard and mouse signals can be transmitted to the computer using either

the PS/2 interfaces or the USB interface.

PS/2 Keyb.

USB K/M

Line In

Line Out

DP CPU 1 DP CPU 2
