Computer module »DP-HR-CPU-DH«
Computer and console modules (DP-HR) · 54

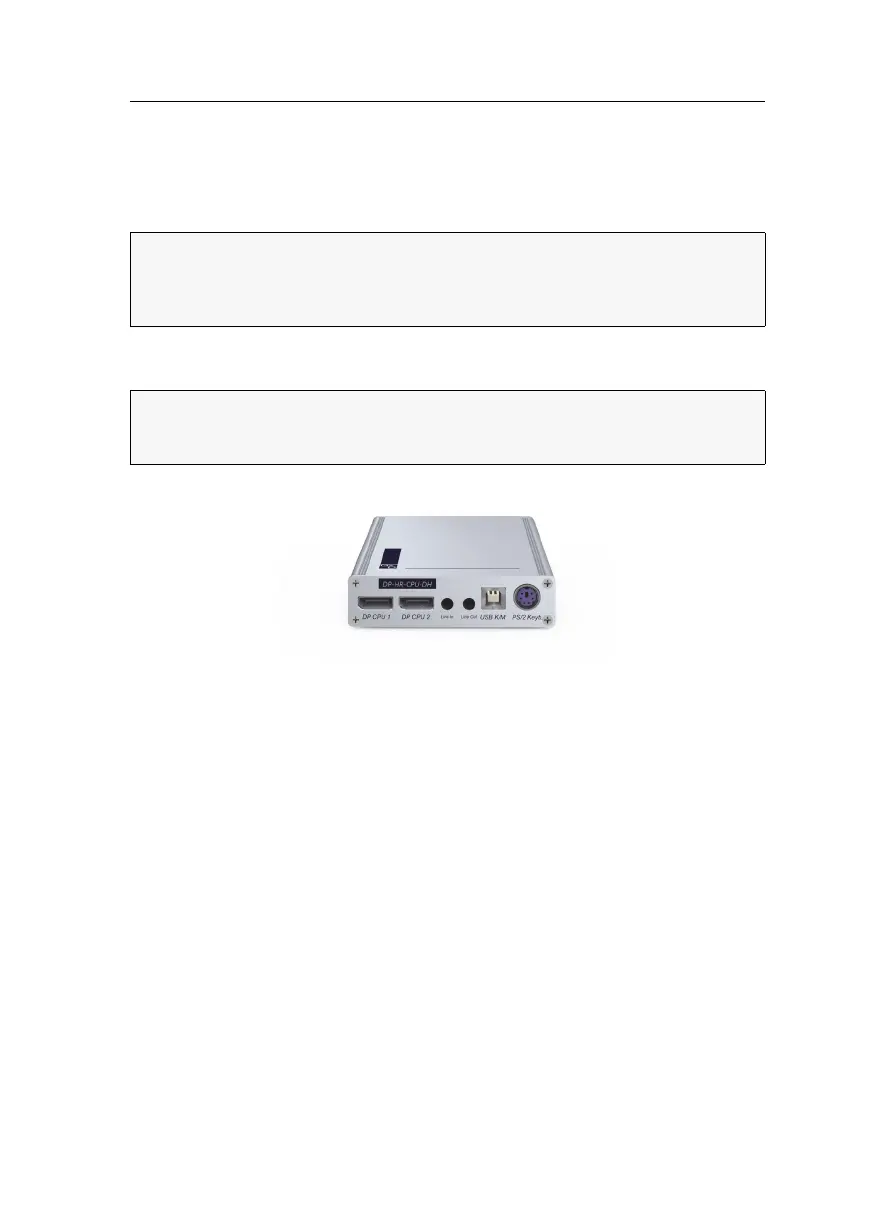

Computer module »DP-HR-CPU-DH«
With the DP-HR-CPU-DH computer module you can connect a computer with up to
two
DisplayPort graphics outputs (dual monitor) to a digital matrix switch of the Con-
trolCenter-Compact or ControlCenter-Digital series by using one cable only.
Users at the consoles of the matrix switch can access the computer module and operate
the connected computer.
Package contents
 1 × Computer module DP-HR-CPU-DH
 2 × DisplayPort video cable (DP-Cable-M/M-2)
 1 × USB device cable
 2 × Audio cable
 1 × Power pack (12V/2A, only with variants incl. PowerPack)
 1 × Power cable (only with variants incl. PowerPack)
 1 × »Manual information« flyer
 1 × »Safety instructions« flyer
Required accessories
 1 × Category 5e (or better) twisted pair cable to connect the computer module
to the matrix switch
ADVICE: If you use the first video channel only, you are able to display resolutions
up to 4096
× 2160 @ 30 Hz (4K). Using both video channels allows resolutions up
to 1920
× 1200 @ 60 Hz. Detailed information about the supported resolutions is
given in the chapter
Technical data on page 58.
ADVICE: At consoles with only one monitor, use the key combination
Alt+arrow right to switch to the video stream of the computer's second video output
(see page 183).

G&D DP-HR-CPU Specifications

General

Brand	G&D
Model	DP-HR-CPU
Category	Control Unit
Language	English
