Console module »DP-HR-CON-2-Fiber«
Computer and console modules (DP-HR) · 118
Required accessories
2 × Compatible optical fibre cable to connect the console module to two matrix
switches
Installation

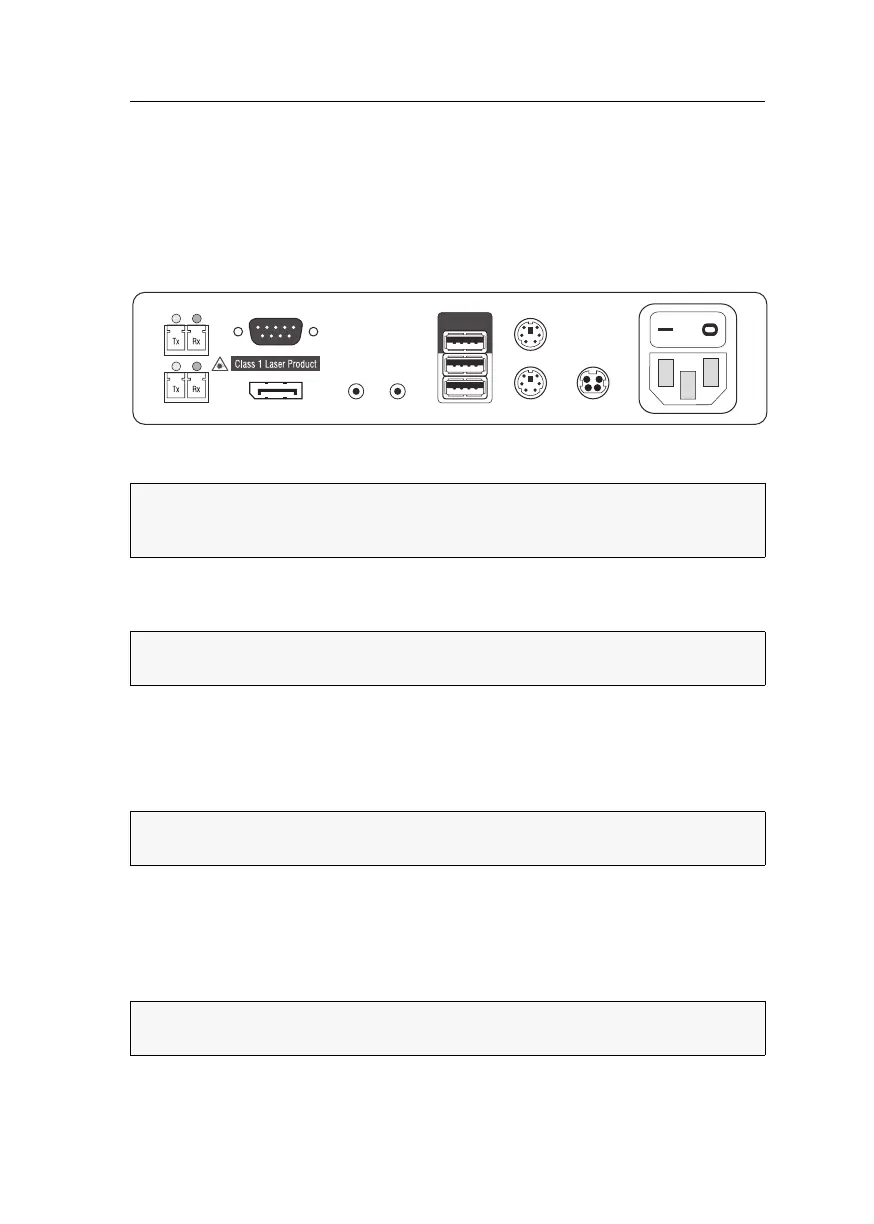

Connecting the console devices
DisplayPort Out: Connect the monitor/projector of the local console.
Micro In: Connect the optional microphone of the local console.
Speaker: Connect the optional speakers of the local console.
Keyb.: Connect the PS/2 keyboard of the local console.
Mouse: Connect the PS/2 mouse of the local console.
Keyb./Mouse: Connect the USB keyboard and/or the USB mouse of the local
console.
Generic: By default (Keyb./Mouse mode), you can use this interface to connect another
USB input device or supported displays or tablets.
Enable the Generic HID mode (see page 177 f.) if you want to connect another USB
input device. In this mode, data of the USB input device remains unaltered when
transmitted to the active computer module.
LED Out: If you purchased and added the TradeSwitch feature to the matrix switch, con-
nect the optional TS-LED2 here (order number A6100041).
NOTE:
Check the monitor's manual if the OSD provides a setting for the mode of
the DisplayPort input. If so, select the mode in which the image data is processed
according to the standard DisplayPort 1.1.
HINWEIS:
Console keyboard and console mouse can be connected to the console
module’s USB or PS/2 interfaces.
NOTE:
Mixed operation, for example connecting a USB mouse and a PS/2 key-
board is supported, too.
IMPORTANT:
With enabled Generic HID mode, it is not possible to operate the OSD
with a keyboard connected to the
Generic socket.
Micro In
Speaker Keyb./Mouse
Generic
Main Power
Red. Power
Mouse
Keyb.
DisplayPort Out
LED Out
Trans. 1
Trans. 2
