G&D DP-HR-CPU Installation And Operation Manual

Computer module »DP-HR-CPU-Fiber-MC2«
Computer and console modules (DP-HR) · 42
Connection to the matrix switch
Trans.|Channel 1|Tx: Insert the LC plug of a compatible optical fibre cable. Connect
the other end of the cable to the
Rx interface of a Dynamic Port provided at the matrix
switch.
Trans.|Channel 1|Rx: Insert the LC plug of a compatible optical fibre cable. Connect
the other end of the cable to the
Tx interface of the same Dynamic Port provided at the
matrix switch.
Trans.|Channel 2|Tx: Insert the LC plug of a compatible optical fibre cable. Connect
the other end of the cable to the
Rx interface of another Dynamic Port provided at the
matrix switch.
Trans.|Channel 2|Rx: Insert the LC plug of a compatible optical fibre cable. Connect
the other end of the cable to the
Tx interface of the same Dynamic Port provided at the
matrix switch.
Power supply
Power In: Insert the power pack’s connection cable to this interface.
IMPORTANT: The devices use components with laser technology which comply
with laser class
1.
They meet the requirements in accordance to EN 60825-1:2014 as well as
U.S. CFR 1040.10 and 1040.11.
Mind the following instructions when dealing with laser beams:
 Avoid direct eye exposure to beam on page 3
 Always connect optical connections or cover them with protection caps on page 3
 Only use G&D certified transmission modules on page 3
NOTE: Use optical fibres with LC plugs to connect the devices. The cables are
available as accessories.
ADVICE: You can also connect the computer module directly to a compatible console
module.

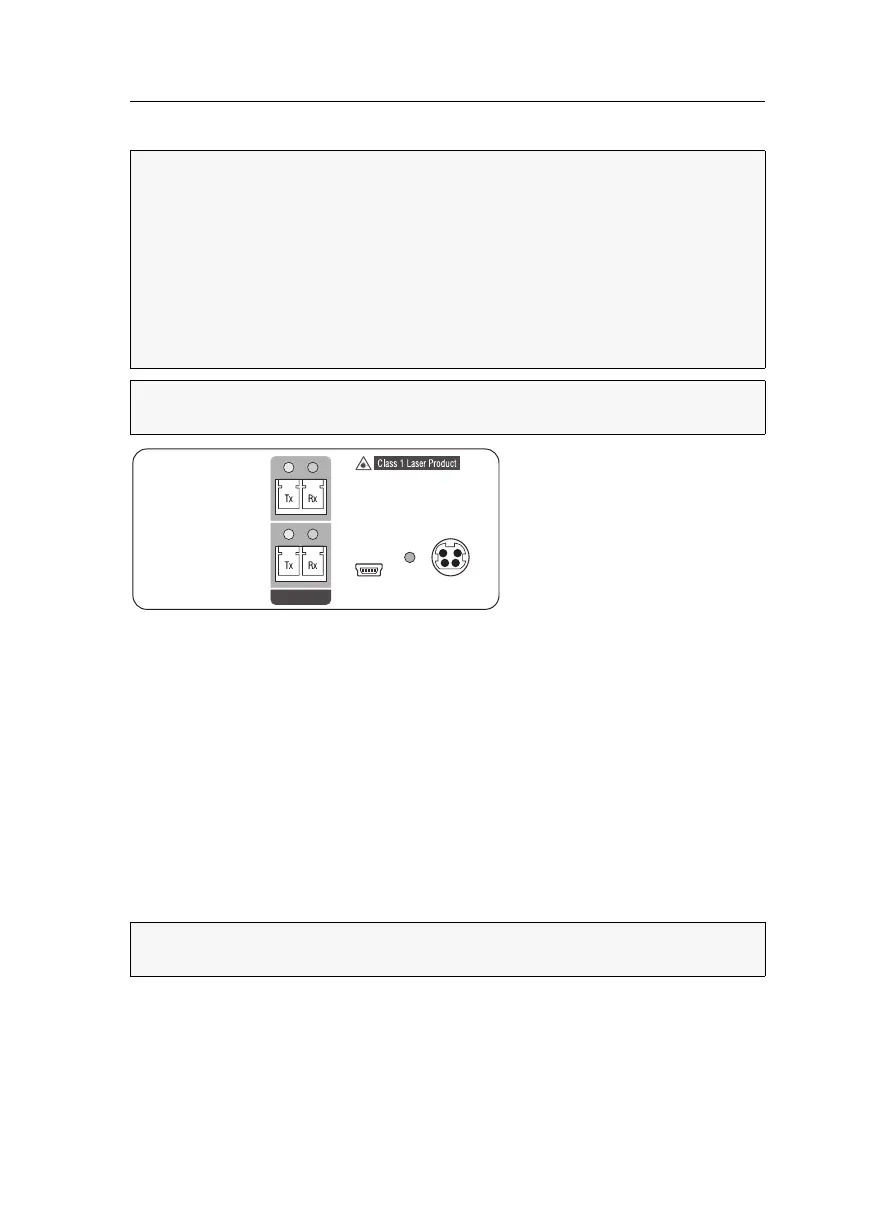

Trans.
Channel 1
Channel 2
Service
Power In
Power
