Gantner GAT NET.Lock 7000 - Dimension Drawings for the Mounting; Door Width; Basic Dimensions of GAT Net.lock 7000 and the GAT Net.lock Bolt Sets

GAT NET.Lock 7000 System
Mounting
14 HB_GAT-NETLOCK7000--EN_30 www.gantner.com
3.3 Dimension Drawings for the Mounting
3.3.1 Door Width
The minimum door width allowed (measured from the door shackle to the hinge) is 230 mm. If the door is narrower,
the door shackle would hit the locker when the door is being closed.

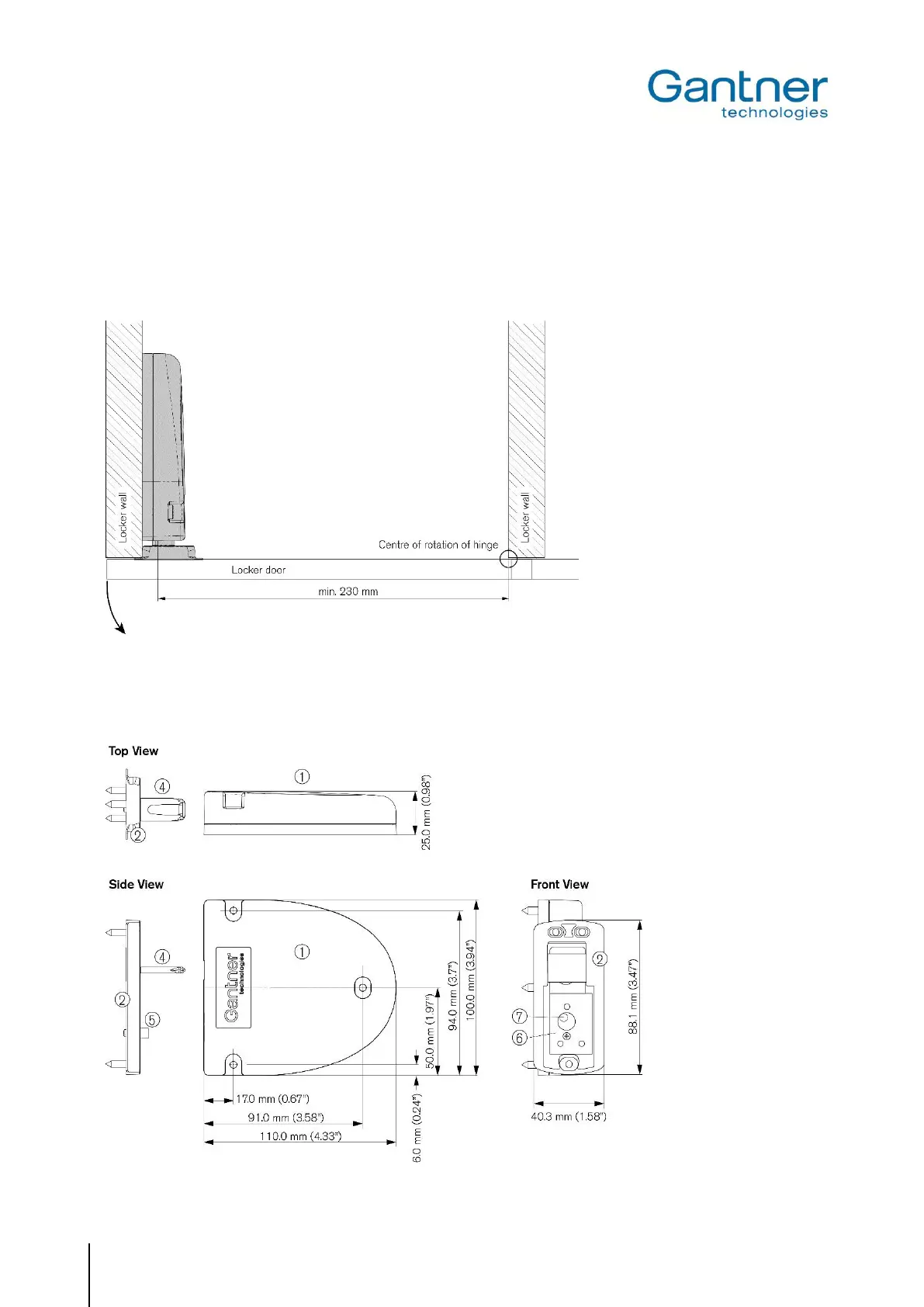

Figure 3.2 - Minimal door width
3.3.2 Basic Dimensions of GAT NET.Lock 7000 and the GAT NET.Lock Bolt Sets
