Gantner GAT NET.Lock 7000 User Manual

GAT NET.Lock 7000 System
Mounting
www.gantner.com HB_GAT-NETLOCK7000--EN_30 15

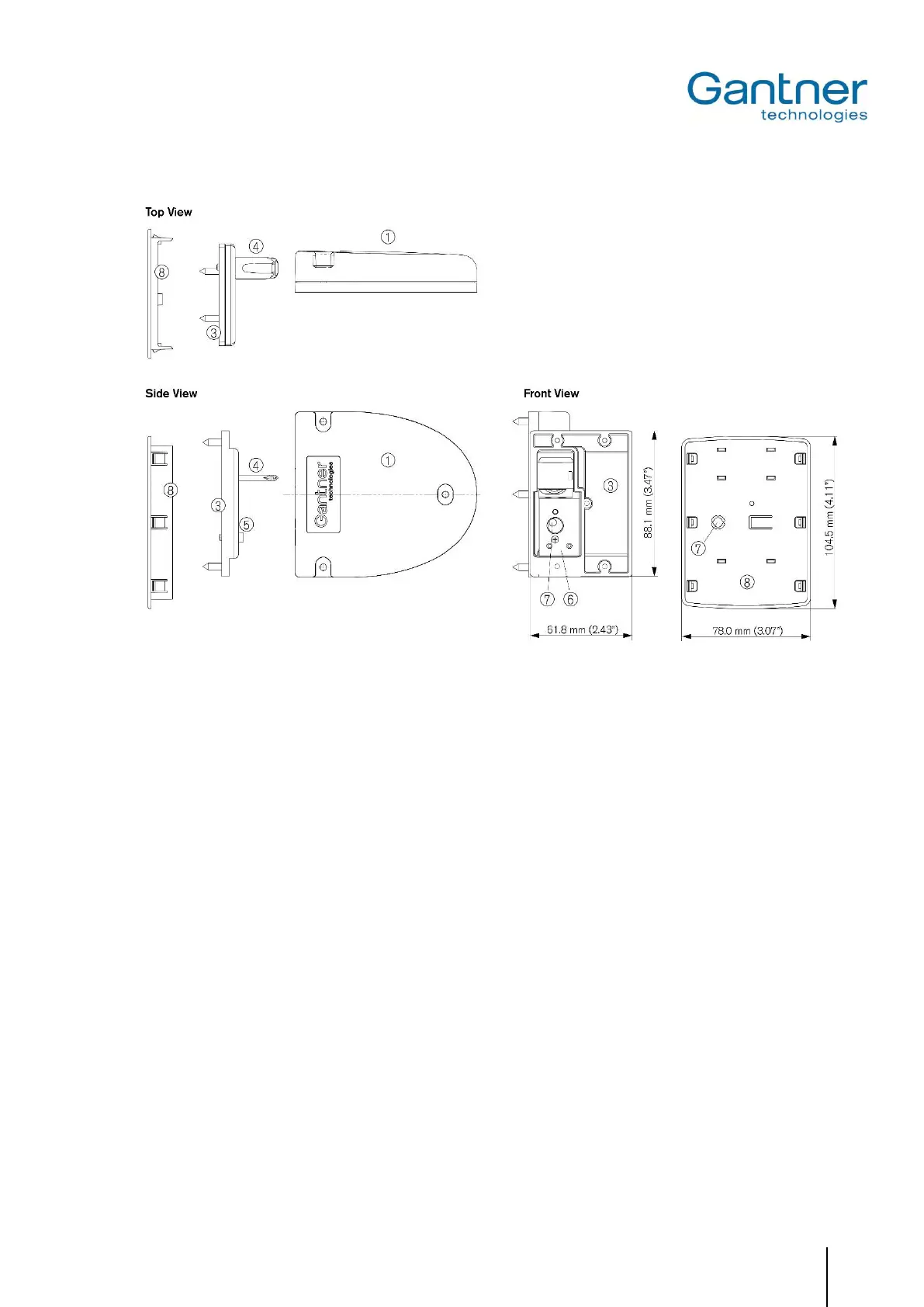

Figure 3.3 - Dimensions of the GAT NET.Lock 7000 with GAT NET.Lock BoltSet 7100 for non-metallic doors
Figure 3.4 - Dimensions of the GAT NET.Lock 7000 with GAT NET.Lock BoltSet 7200 for metallic doors
1. GAT NET.Lock 7000
2. GAT NET.Lock BoltSet 7100 (for non-metallic doors)
3. GAT NET.Lock BoltSet 7200 (for metallic doors)
4. Door shackle
5. Door contact
6. Booster
7. Status LED
8. Label carrier
3.4 Door Status Contact
The GAT NET.Lock 7000 has a feedback which gets activated by the door contact (5) at the bolt set as soon as the
locker door is closed. To guarantee the correct functionality of the GAT NET.Lock 7000 it is important, that this contact
is clean and not damaged.
