5.5 Status Information at GAT NET.Controller S 7000 and GAT NET.Controller M 7000

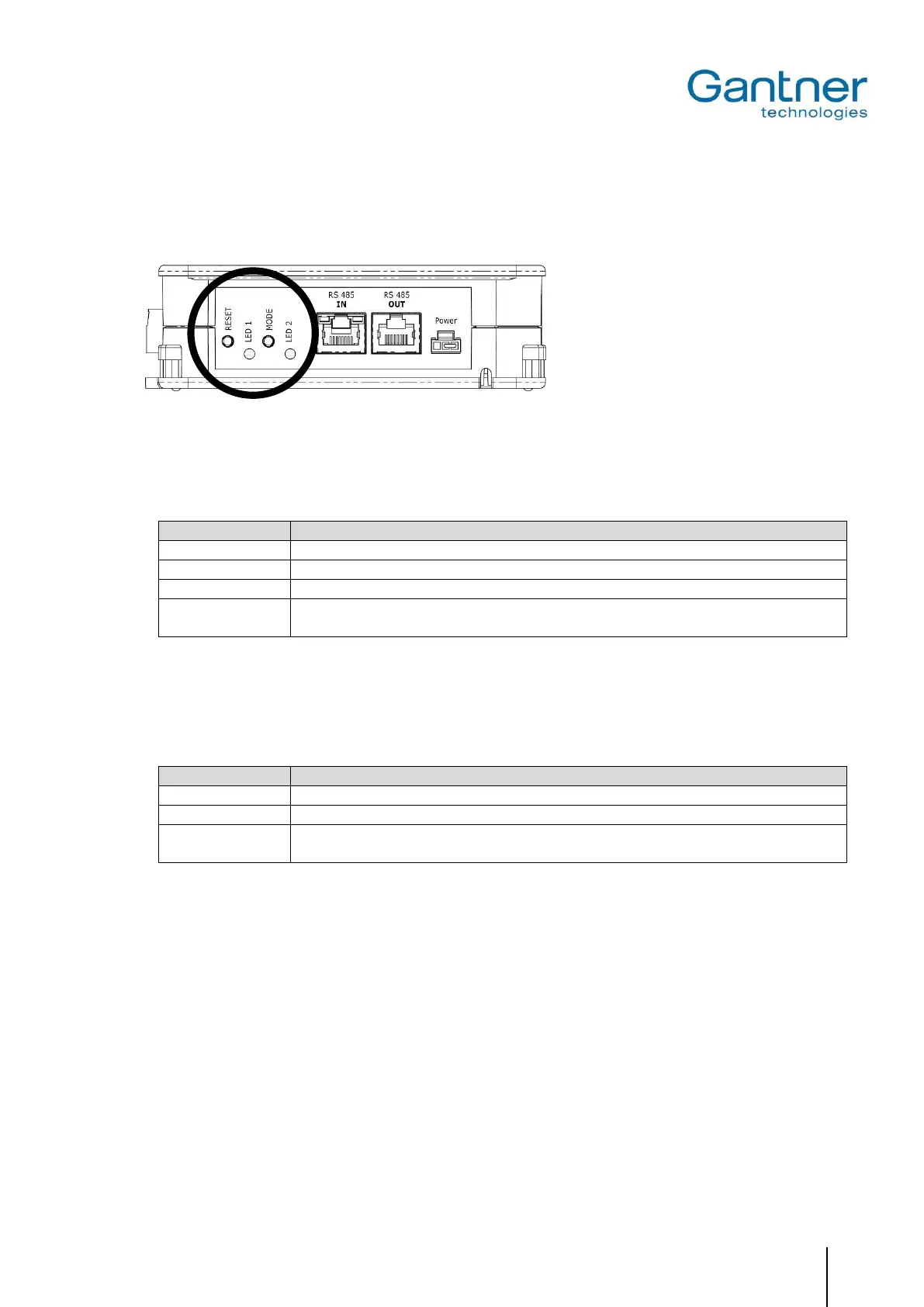

LED 2 shows the following status information at a slave and master controller.
5.5.1 Slave Controller
LED 2
Status Information
red
Emergency operation (no connection, neither to the master controller nor to the server/software)
red blinking
Emergency operation (connection to master controller OK, but no connection to server/software)
green
Normal operation (connection to master controller and server/software is OK)
alternately red/green
blinking
Bootloader mode (a firmware update is currently being loaded or there is no firmware present in the
controller)
Table 5.1 - Status information at a slave controller GAT NET.Controller S 7000
5.5.2 Master Controller
LED 2
Status Information
red
Emergency operation (no connection to the server/software)
green
Normal operation (connection to server/software is OK)
alternately red/green
blinking
Bootloader mode (a firmware update is currently being loaded or there is no firmware present in the
controller)
Table 5.2 - Status information at a master controller GAT NET.Controller M 7000
