3.5 Mounting in Lockers with Non-Metallic Doors
In lockers with non-metallic doors the GAT NET.Lock 7000 is mounted on the left or right inner locker wall (depending
if it is a right or left locker) and the GAT NET.Lock Bolt Set 71x0 is mounted on the inside of the locker door. Also a
drilling in the locker door is required for the LED status display. See the following figure and the steps afterwards for
the mounting instructions.
1. GAT NET.Lock 7000
2. GAT NET.Lock Bolt Set 7100
3. Mounting screws for the GAT NET.Lock 7000 (3x), type depending on the locker material
4. Door shackle
5. Door contact
6. Mounting screws for bolt set
7. LED (hole in the locker door)

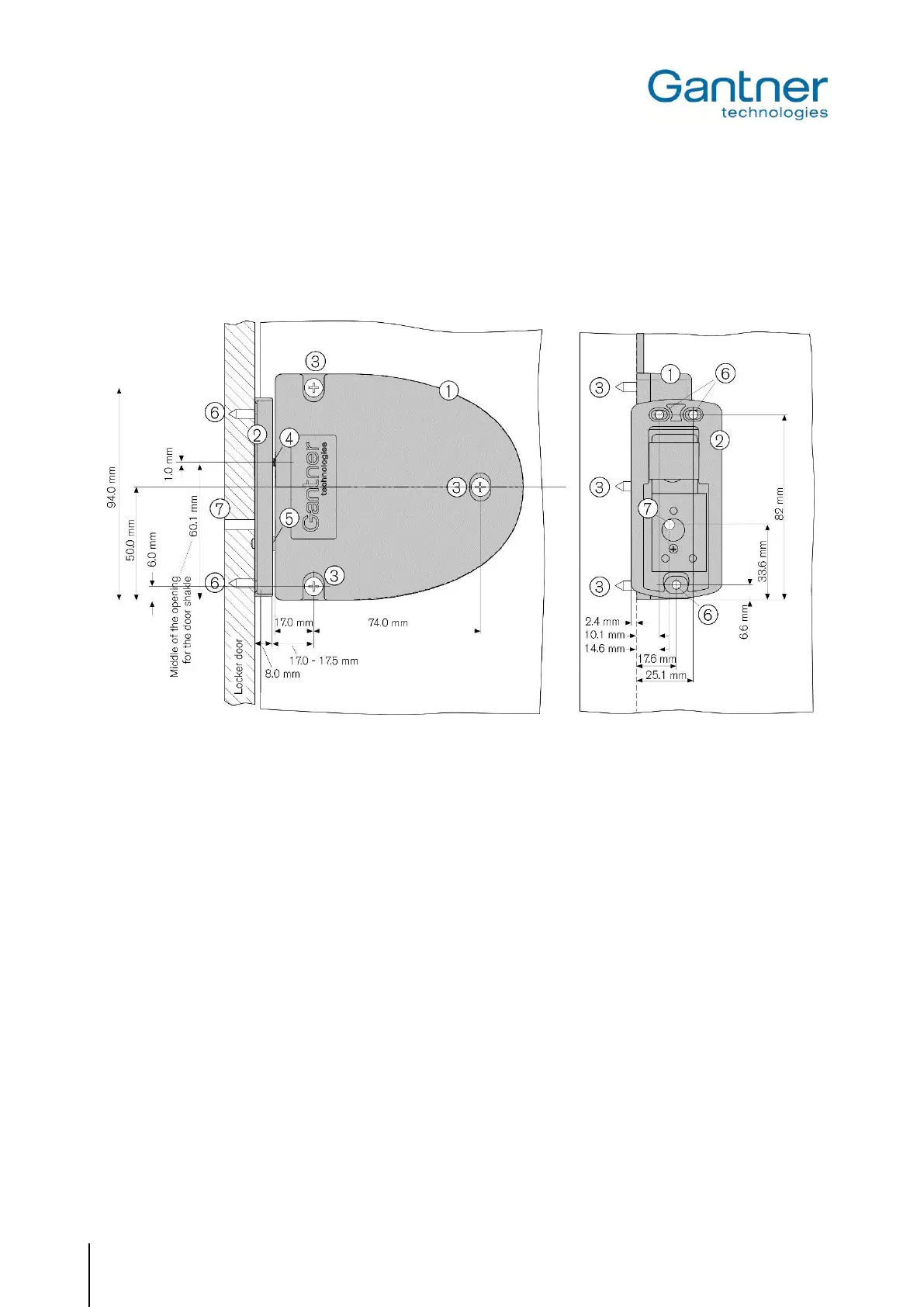

Figure 3.5 - Mounting of the GAT NET.Lock 7000 in a locker with non-metallic door (right door)
3.5.1 Important Measures when Mounting the GAT NET.Lock 7000 and Bolt Set (Non-Metal Doors)
During the mounting, please pay particular attention to the following points:
- When the door is pressed shut, the gap between the bolt set and the front of the GAT NET.Lock 7000 must not
exceed 0.5 mm. Ideally the bolt set should touch the front of the lock (see measure in Figure 3.5).
- The middle of the door shackle (4) must be 1 mm higher than the middle of the door shackle opening in the GAT
NET.Lock 7000 (see measure in Figure 3.5). This ensures the door’s ability to close even if the door position is
modified 3 mm downwards or 1 mm upwards (tolerance ±2 mm).
