GAT NET.Lock 7020 System
General Information
14 HB_GAT-NETLOCK7020--EN_12 www.gantner.com

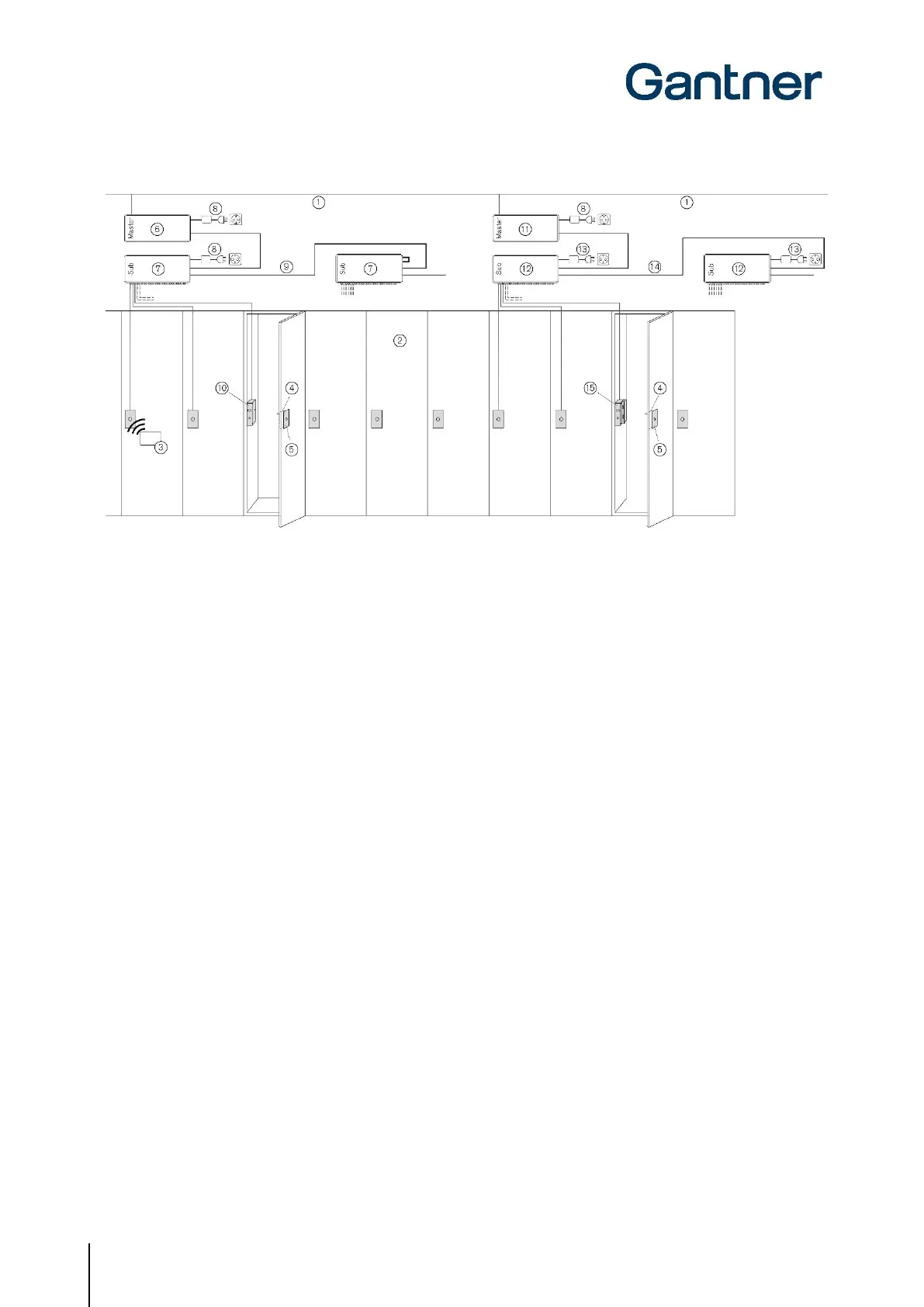

Figure 2.1 – Typical application of the GAT NET.Lock 7020 system
1. LAN Network
2. Lockers
3. RFID data carrier
4. Bolt set (GAT NET.Lock BoltSet 7xxx)
5. Front label
Different variants of GAT NET.Lock locks and controllers can operate in combination:
6. Master controller 7020 or 7000
7. Sub controller 7020 or 7000
8. GAT NET.Power Supply 7020 (without "USB") or 7000
9. RS-485 + power
10. GAT NET.Lock 7020 / 7020 P or GAT NET.Lock 7000
To use the USB and LED function, the GAT NET.Lock 7020 USB (P) and the following combination of controllers and
power supplies must be used:
11. Master controller 7020 or 7000
12. Sub controller 7020
13. GAT NET.Power Supply 7020 USB
14. RS-485 (without direct power, each sub controller needs its own "USB" type power supply)
15. GAT NET.Lock 7020 USB or 7020 USB P
