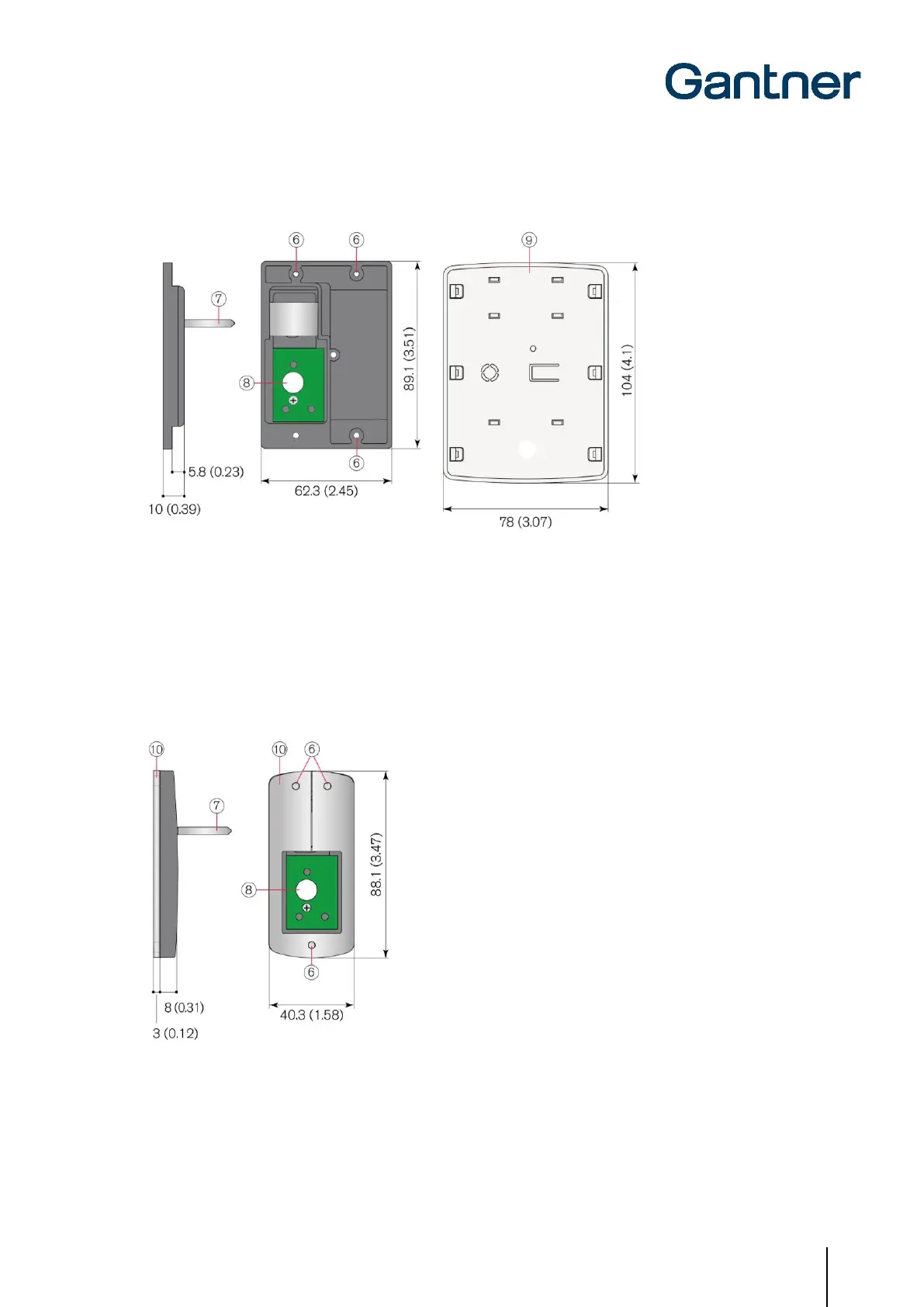

3.9.5 Dimensions of the GAT NET.Lock BoltSet 7220 (Metallic Doors)
Figure 3.7 - Dimensions of the GAT NET.Lock BoltSet 7220
6. Mounting holes for GAT NET.Lock BoltSet on the inner side of the locker door
7. Door shackle
8. Hole for status LED
9. Front cover
3.9.6 Dimensions of the GAT NET.Lock BoltSet 7320 (Glass Doors)
Figure 3.8 - Dimensions of the GAT NET.Lock BoltSet 7320
6. Mounting holes for GAT NET.Lock BoltSet on the inner side of the locker door
7. Door shackle
8. Hole for status LED
9. Front cover
10. Metal support
