3.11.1 Cutouts in the Metallic Locker Door
The following cutouts must be made on the inner and outer walls of the locker door in order to mount the GAT
NET.Lock BoltSet 7220 and label carrier. The measurements for the cutouts are as follows.

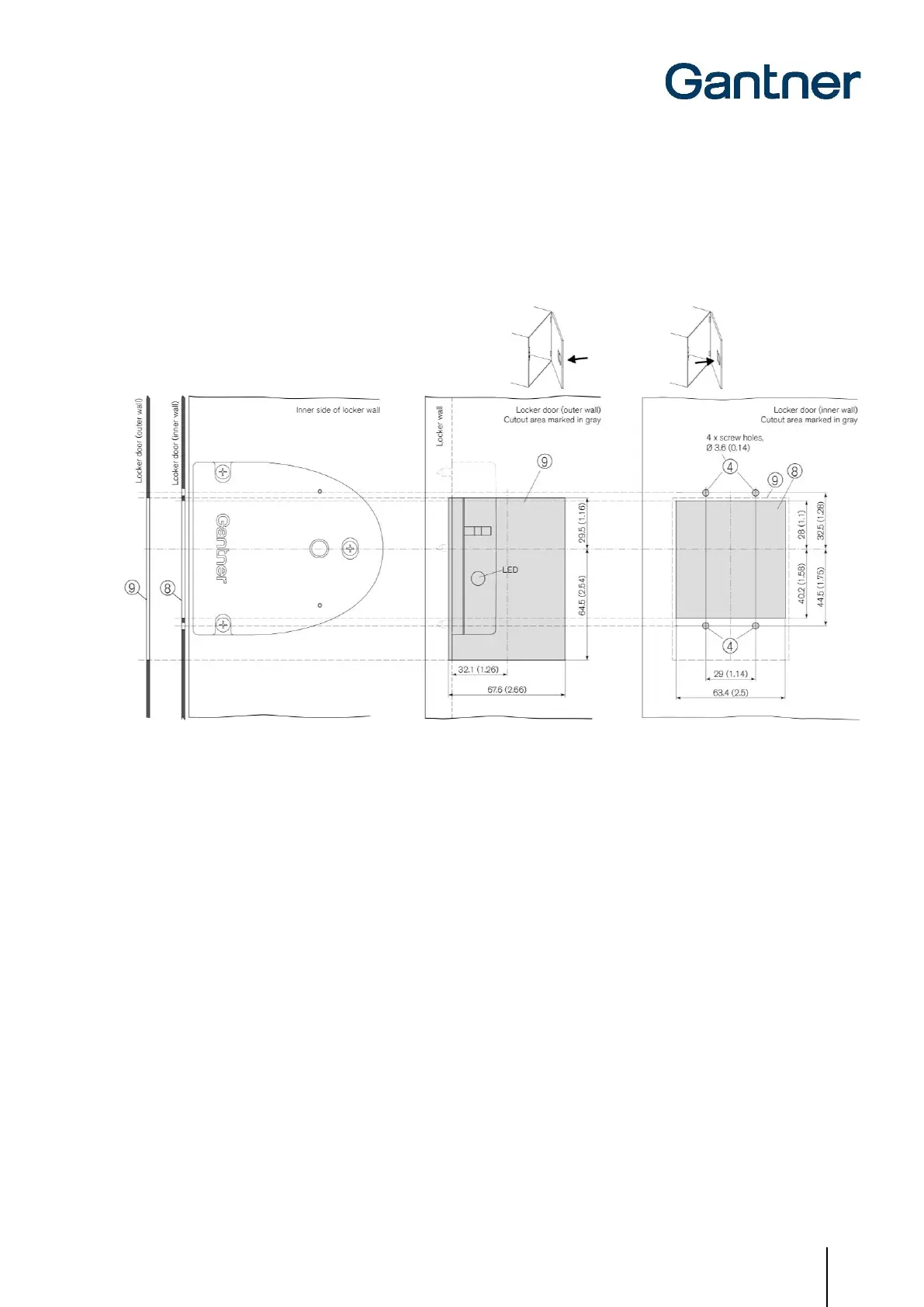

Figure 3.11 - Cutouts for metallic locker doors
