28 HB_GAT-NETLOCK7020--EN_12 www.gantner.com
3.10 Installation in Lockers with Non-Metallic Doors
For lockers with glass or plastic doors, see “3.12 Installation in Lockers with Glass Doors”.
The GAT NET.Lock 7020 can be installed on the left or right side of the inner locker wall depending on whether it is
a right or left-hinged locker door (see “3.7. Definition of the Door Hinge (Right or Left Door)). The GAT NET.Lock Bolt
Set 7120 is installed on the inner side of the locker door. One drill hole is required in the locker door for the LED status
light. See Figure 3.9 and the following installation instructions.
1. GAT NET.Lock 7020
2. GAT NET.Lock Bolt Set 7120
3. 3 x mounting holes for the GAT NET.Lock 7020
4. 3 x mounting holes for the GAT NET.Lock BoltSet 7120
5. Hole for LED

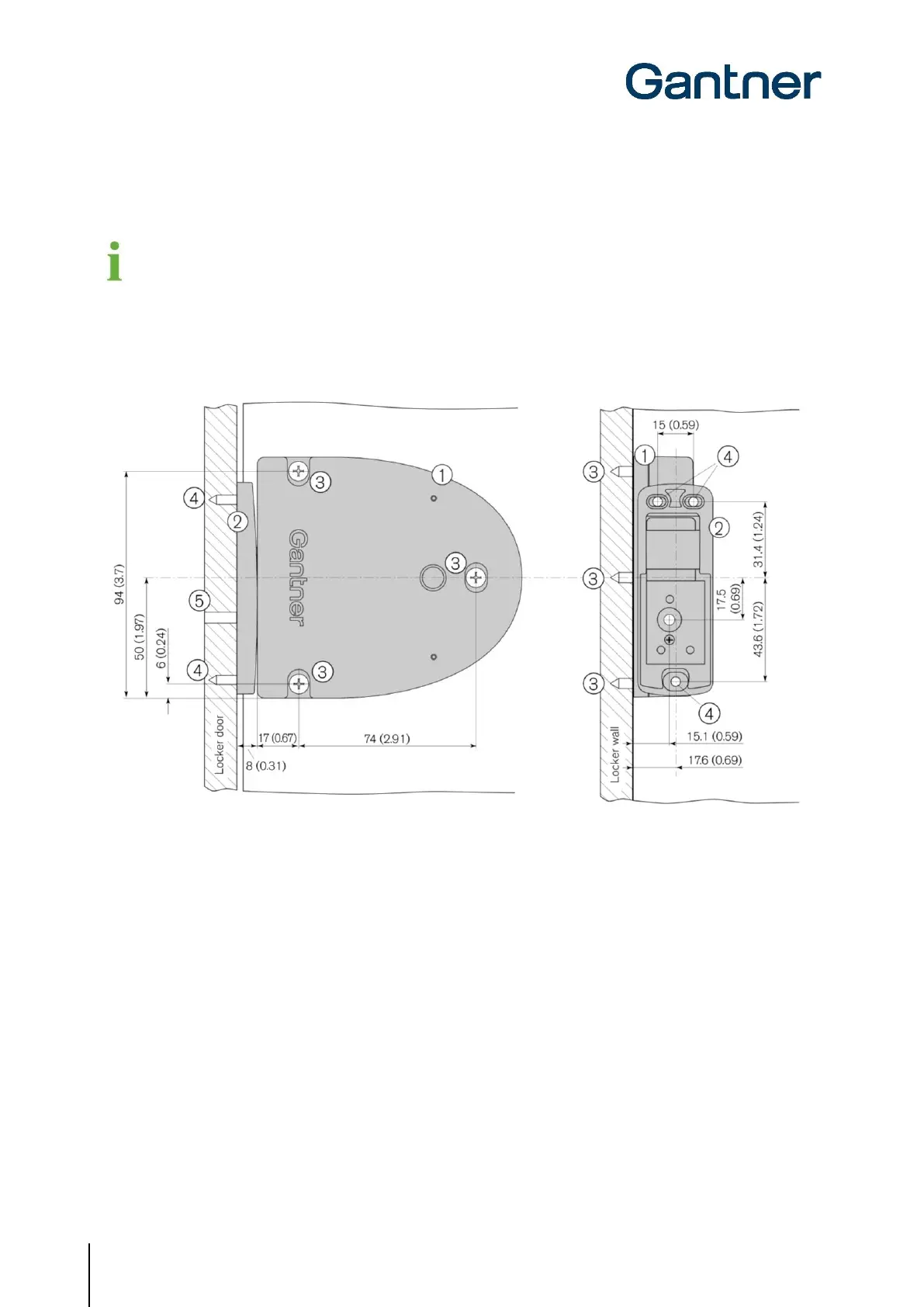

Figure 3.9 - Installation in a locker with non-metallic door (right-hinged)
