5.4 Controller LED Signaling and Buttons
5.4.1 Sub Controller
To display different operating states and to start certain functions, the following LED indicators and buttons are
provided on the GAT NET.Controller S 7020.

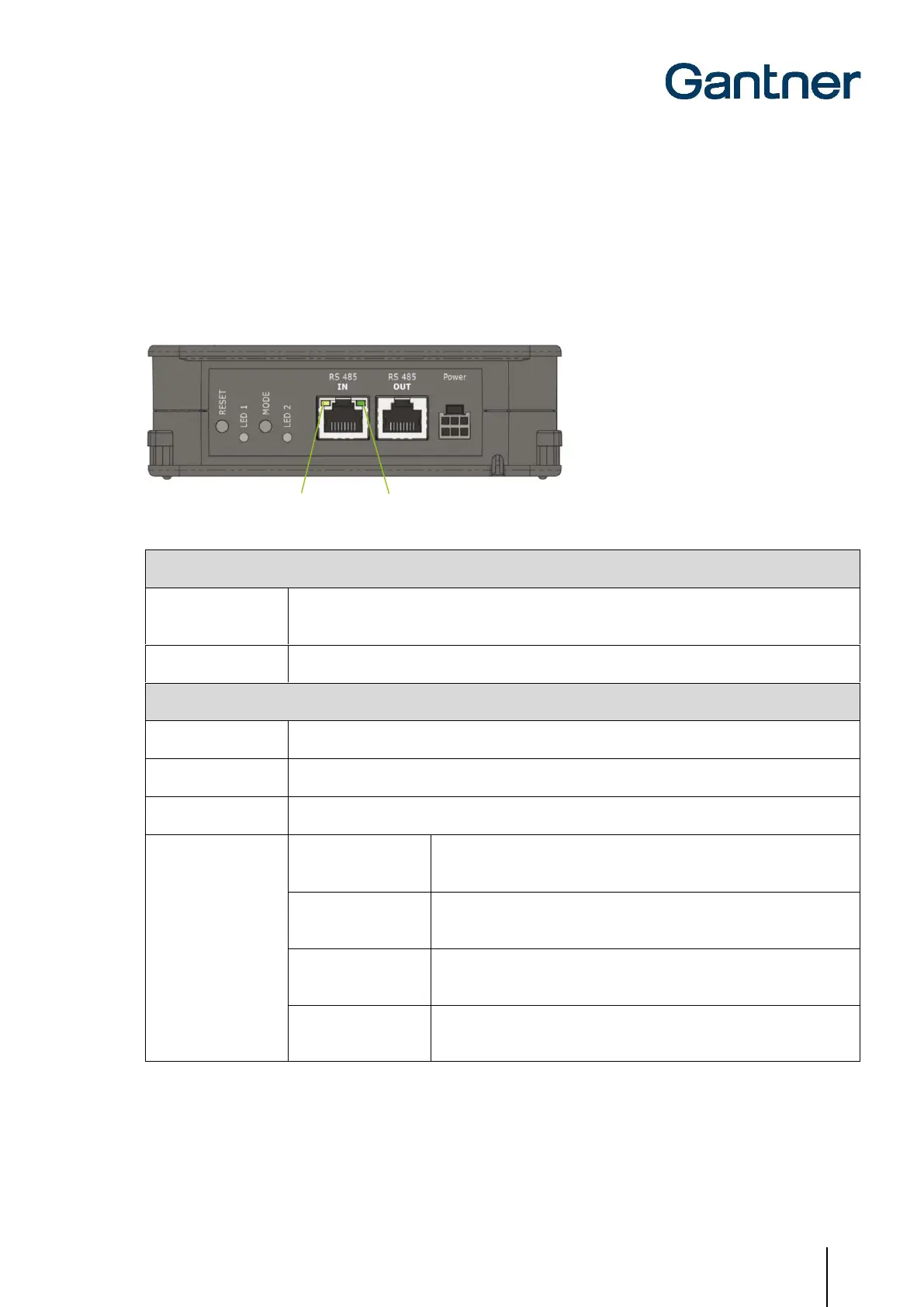

Figure 5.4 - LEDs and buttons provided on the GAT NET.Controller S 7020
BUTTONS
RESET
1. See "5.2. Restarting a Controller"
2. See "5.3 Resetting a Controller to the Default Settings"
MODE
See "5.1 GAT NET.Lock 7020 Antenna Calibration "
LEDs
RS 485 IN (yellow)
The connection to the master controller has been established
RS 485 IN (green)
RS-485 communication active
LED 1 (blue)
Lock activated/controlled
LED 2 (green/red)
Red:
Emergency operation (no connection to master controller; no
connection to server/software)
Red flashing:
Emergency operation (connection to master controller OK; no
connection to server/software)
Green:
Normal operation (connection to master controller and
server/software OK)
Red/green flashing:
Bootloader mode (a firmware update is currently being loaded or
there is no firmware installed)
Table 5.1 - Buttons and LEDs of the GAT NET.Controller S 7020 sub controller
Yellow LED
Green LED
