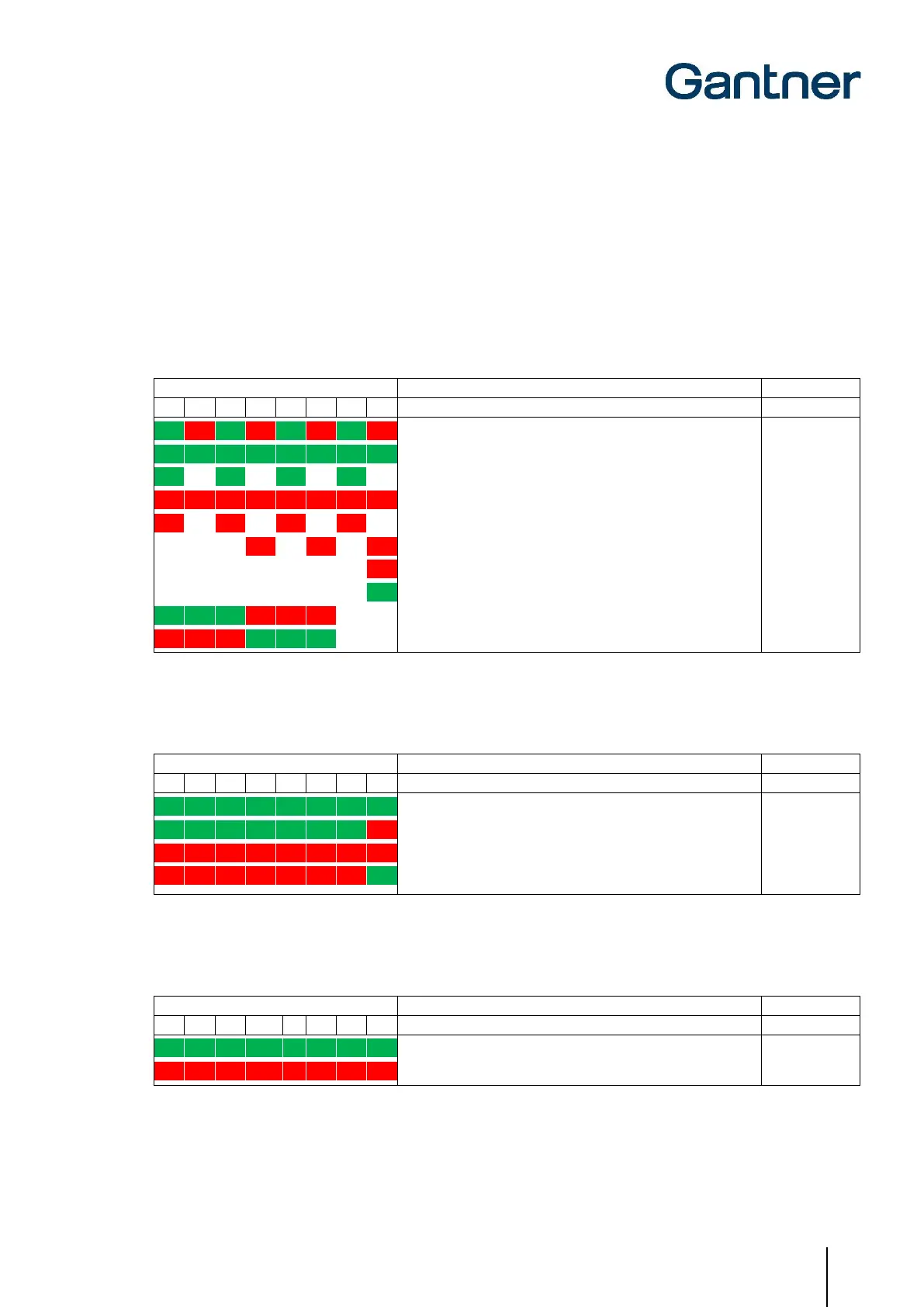

5.5 GAT NET.Lock 7020 Signalization Overview
The GAT NET.Lock 7020 displays current status information via an integrated multi-color status LED. The status LED
is designed to remain visible through a hole in the locker door even when the locker door is closed (provided the GAT
NET.Lock 7020 is installed correctly). The following tables show the different LED signals and their corresponding
lock states.
5.5.1 General (applicable for all modes)
LED Signal (each field = 0.5 second)
Status
Configurable
1
2
3
4
5
6
7
8
Not configured (default setting on delivery)
Door is open, lock is unlocked (also when pre-closed)
Door is closed, ready to lock
Door is closed and locked
Door is closed and locked, data carrier not valid
ALARM (recommended with beeper)
X (beeper)
Door is closed and locked, lock is disabled
Door is open, lock is disabled
Door is open, lock is in cleaning mode
X
Door is closed and locked, lock is in cleaning mode
X
Table 5.1 - LED status signals of the GAT NET.Lock 7020 - applicable for all modes
5.5.2 Personal Locker Mode
LED Signal (each field = 0.5 second)
Status
Configurable
1
2
3
4
5
6
7
8
Door is open, lock is unlocked, no data carrier assigned
Door is open, lock is unlocked, min. 1. data carrier assigned
X
Door is closed, lock is locked, min. 1. data carrier assigned
Door is closed, lock is locked, no data carrier assigned
X
Table 5.2 - LED status signals of the GAT NET.Lock 7020 - personal locker mode
5.5.3 Dynamic Personal Locker Mode
LED Signal (each field = 0.5 second)
Status
Configurable
1
2
3
4
5
6
7
8
Free - no data carrier assigned
X*
In use - data carrier assigned
X*
*Show inactive rental locker in advanced configuration
Table 5.3 - LED status signals of the GAT NET.Lock 7020 – dynamic personal locker mode
