Gantner GAT NET.Lock 7020 System User Manual

GAT NET.Lock 7020 System
Installation
www.gantner.com HB_GAT-NETLOCK7020--EN_12 25

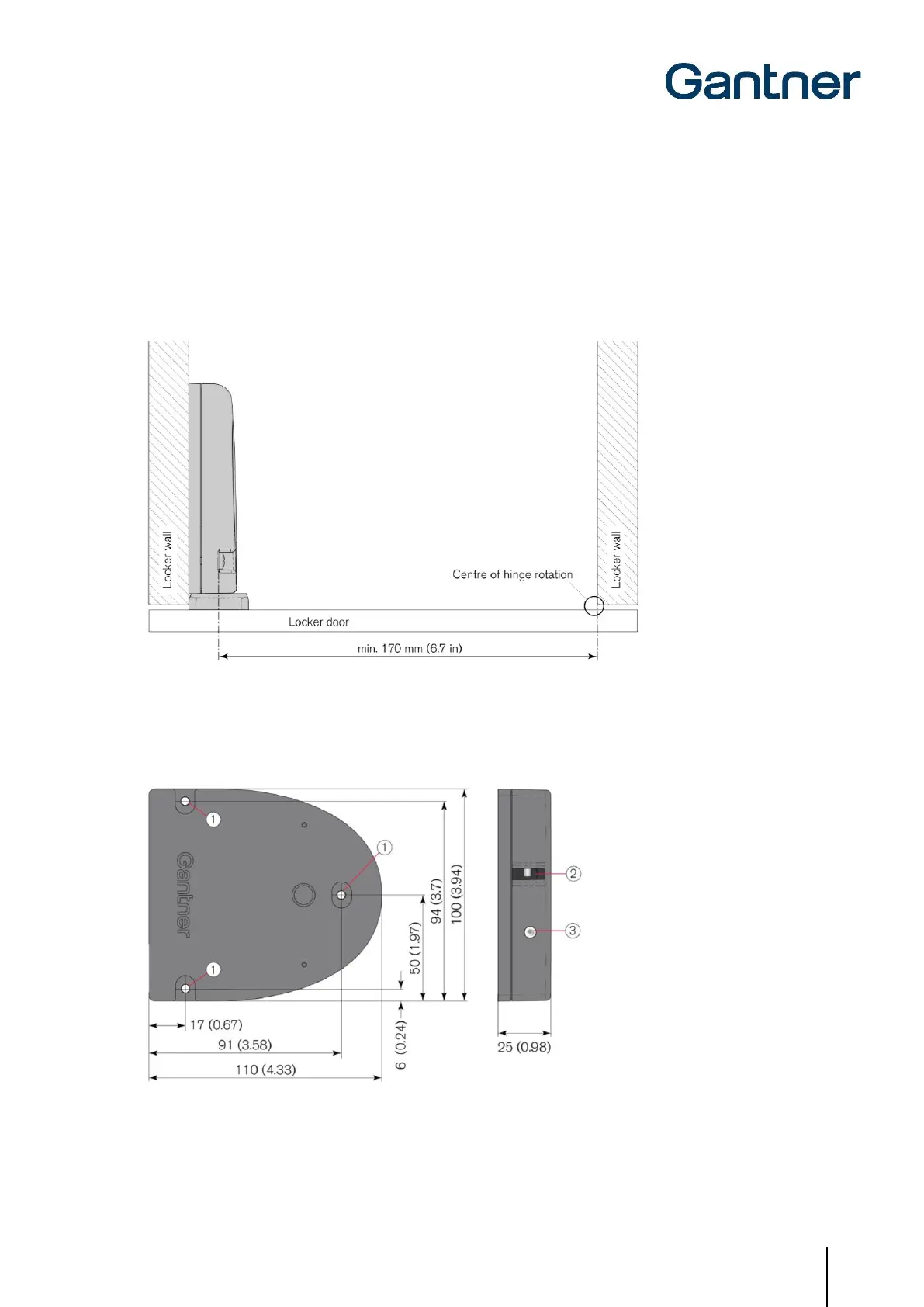

3.9 Measurement Diagrams for Installation
3.9.1 Door Width
The minimum allowed door width (measured from the door shackle to the hinge) is 170 mm (6.7 in). If the door is
narrower than 170 mm, the door shackle will hit the lock when the door is being closed.
Figure 3.3 – Minimum door width
3.9.2 Dimensions of the GAT NET.Lock 7020 / GAT NET.Lock 7020 P
Figure 3.4 - Dimensions of the GAT NET.Lock 7020 / GAT NET.Lock 7020 P
1. Mounting holes for GAT NET.Lock 7020 on the inner side of the locker wall (3x)
2. Opening for door shackle
3. Status LED
