13-20-604 Page 43
Use only the replacement element shown on the filter tag or refer to the parts list for the part number. Use
the following procedure to replace the filter element. Do not disturb the piping.
Air/oil under pressure will cause severe personal injury or death. Shut down
compressor, relieve system of all pressure, disconnect, lockout and tagout
power supply to the starter before removing valves, caps, plugs, fittings, bolts
and filters.
Compressor, air/oil reservoir, separation chamber and all piping and tubing
may be at high temperature during and after operation.
1. Stop unit and be sure no air pressure is in the oil reservoir.
2. Disconnect, lockout and tagout the power supply to the starter.
3. Remove the spin-on element.
4. Clean the gasket face of the filter body.
5. Coat the new element gasket with clean lubricant used in the unit.
6. Screw new element on filter body and tighten clockwise by hand 3/4 turn after contact. DO NOT
OVERTIGHTEN ELEMENT.
7. Reset the filter life setting to 1000 hours, see “Maintenance Adjustments” in the Controller Operating
and Service Manual.
8. Run the unit and check for leaks.

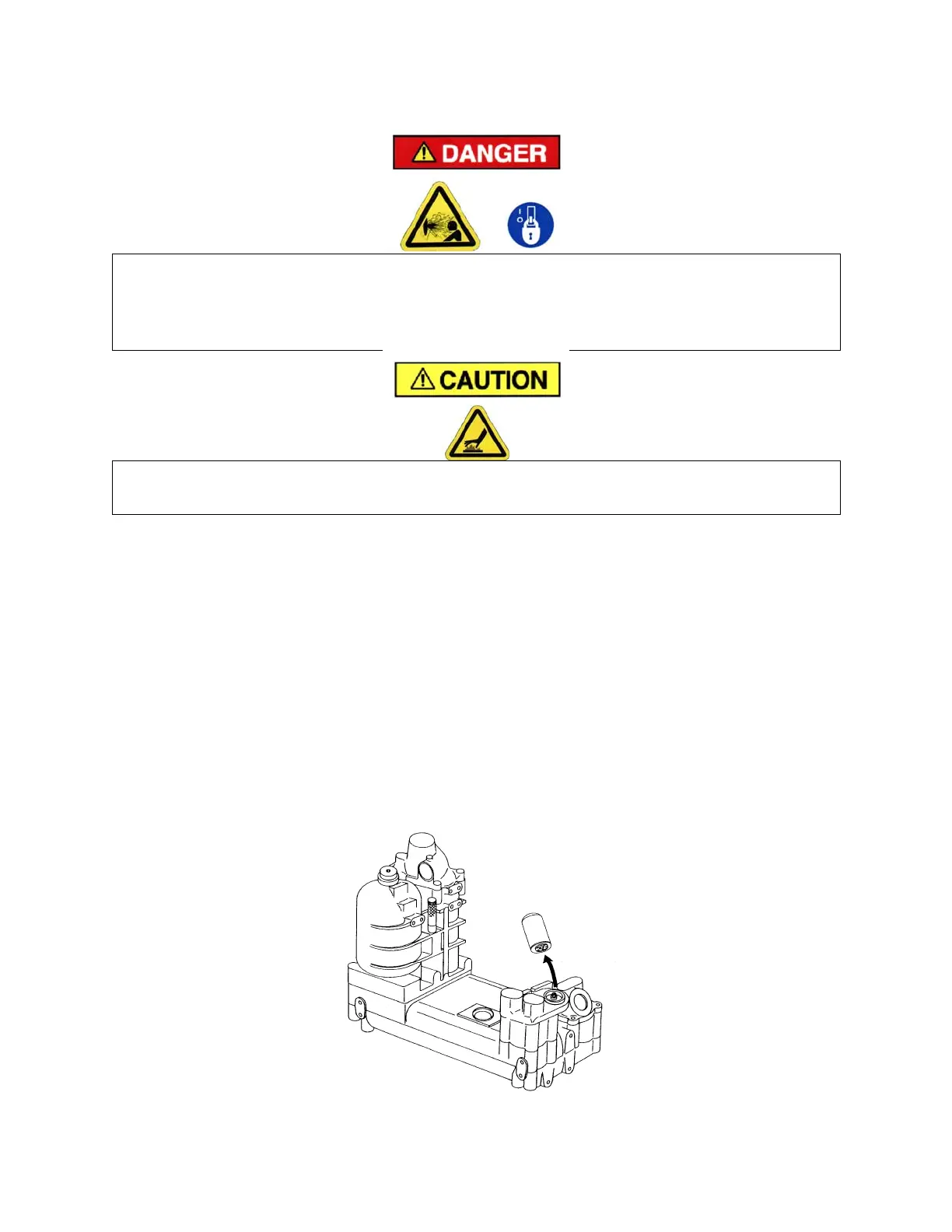

Figure 5-5 – OIL FILTER
