General Information Section 1
1. On/Off Power Switch.
2. easyToUCH™ Touch sensitive controls for easy operation.
3. Green Push Button.
• press to start cook.
• press and hold to abort.
4. Grease Buckets.
• with straight sides to save space.
• with flared sides to accommodate optional tool
holders.
5. USB Ports - for easyToUCH.
6. Incoming gas manifold (gas models only).
7. Main gas shut off (gas models only). Supply with
optional flexible hose connection assembly.
8. Main Electric Power Cables and Plugs.
9. Restraining device assembly (gas models only)
10. Platen - providing double-side cooking. Each platen can
be controlled separately.
11. Grill Plate - cooking surface with three (3) Independently
controlled heaters per cook zones.
12. Front Casters - height adjustable swivel casters, with
brakes and swivel lock pins.
13. Rear Casters - height adjustable swivel casters and
swivel lock pins (without brakes).
14. Release Material Sheet - non-stick surface for case of
operation and cleaning.
15. Circuit Breaker(s)
16. Rating Plate location. - Important information such as
the unit’s model number, serial number, and electrical
specifications can be found on the serial plate.
Note: Serial number also can be found in the control in
the “Diagnostic Menu” in the “Revision” screen.

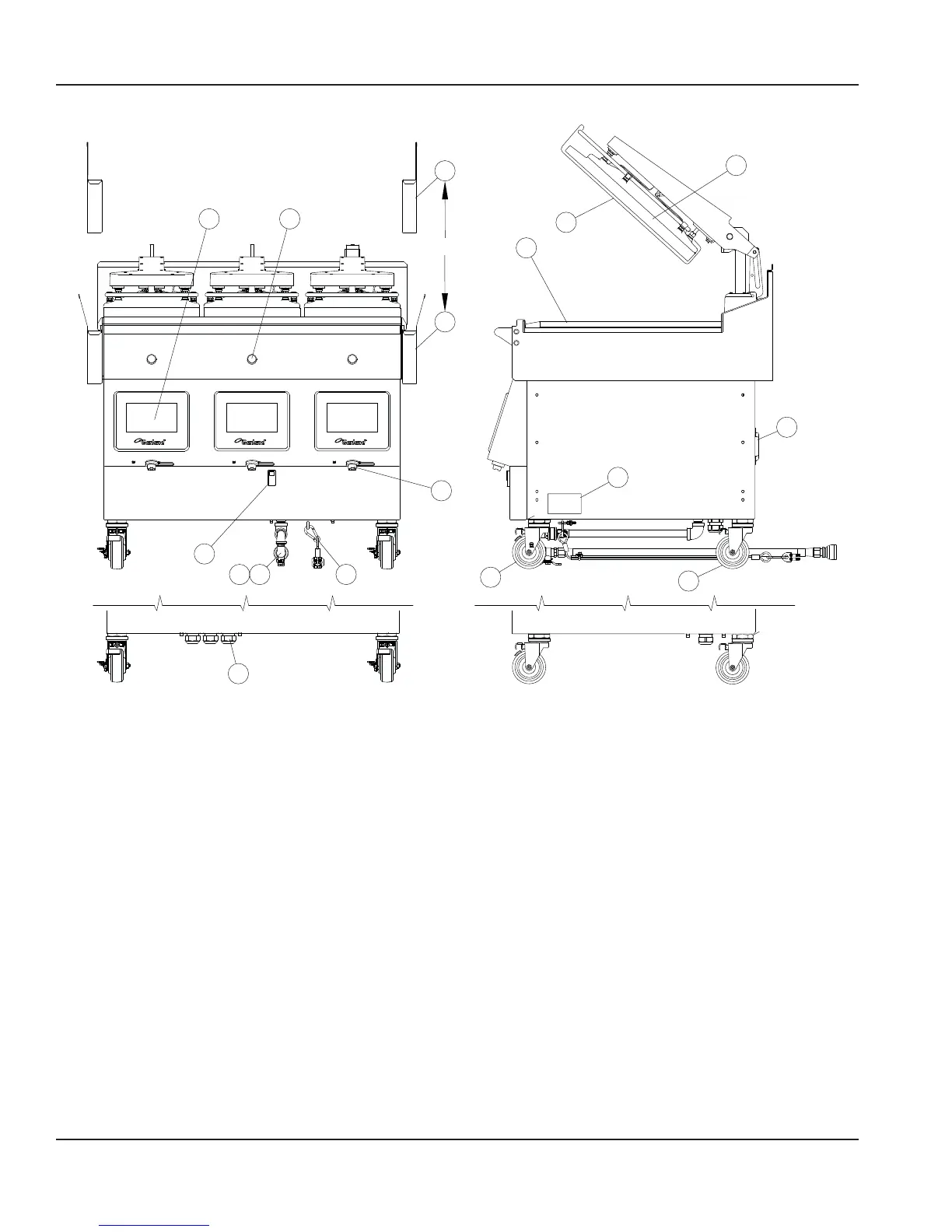

Main Features and Components
16
1
9
5
8
4
2 3
12
13
15
11
14
10
7
6
4
or
