Set Fuel Remaining
(GAL REM)
Displays current fuel remaining in gallons as set by the pilot and adjusted for
fuel burn since last set
11
Calculated Fuel Used
(GAL USED)
Displays quantity of fuel used in gallons based on fuel flow since last reset
12
Calculated Endurance
(ENDUR)
Displays flight time remaining in hours:minutes (HH:MM) based on the
calculated fuel remaining
13
Calculated Range
(RANGE NM)
Displays aircraft range in nautical miles (nm) based on the calculated fuel
remaining, the aircraft’s heading, and the wind direction and speed
14
Aileron and Rudder Trim
Bars (AIL, RUD)
Aileron and rudder trim are indicated with pointers along slide bars; the green
bars indicate takeoff trim positions
15
Flap Position Indicator
(FLAPS)
Flap deflection is indicated with a pointer along a slide bar; takeoff flap
position is indicated with a green bar
16
Elevator Trim Bar
(ELEV)
Elevator trim is indicated with a pointer along a slide bar; takeoff trim position
is indicated with a green bar and T/O label
10
8
7
6
5
4
3
2
1

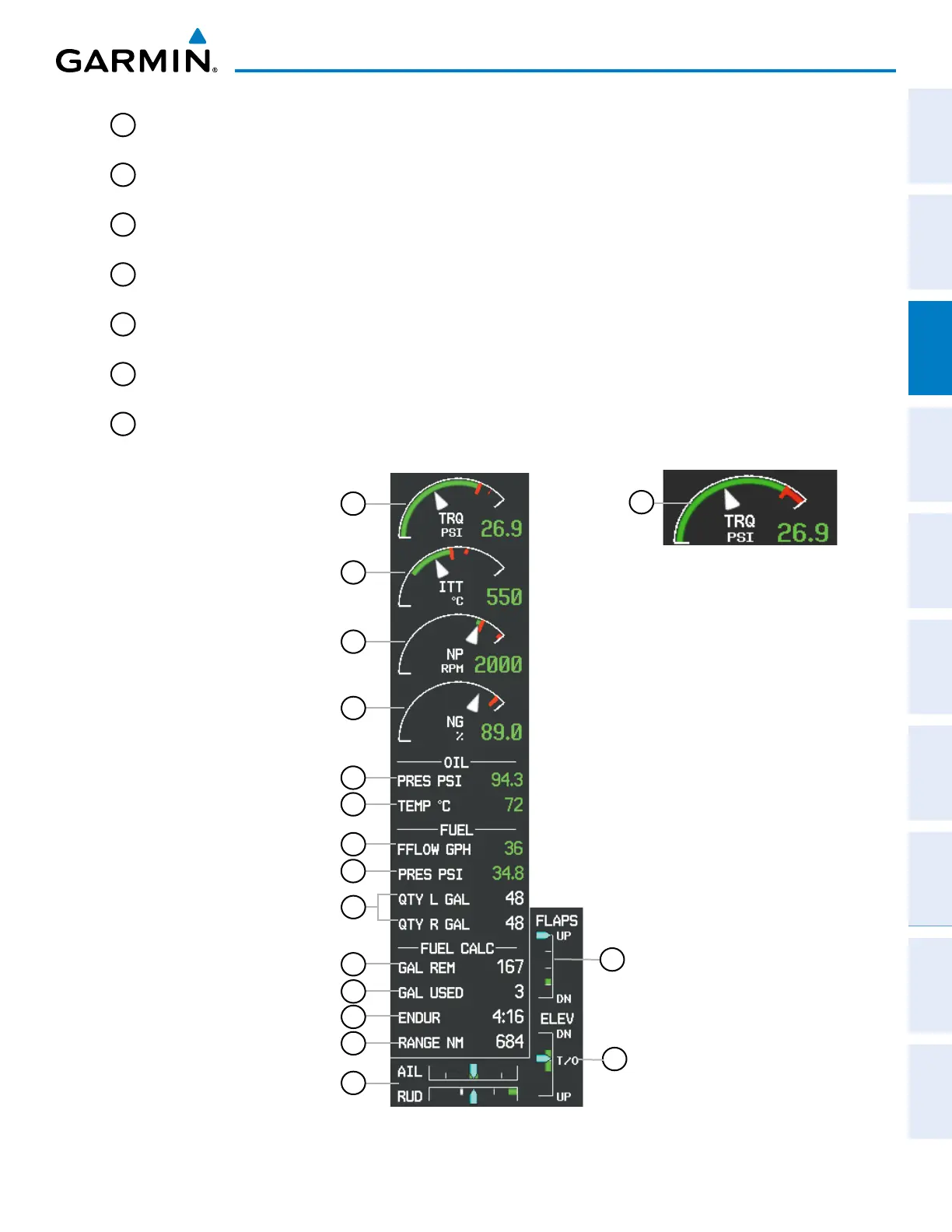

Figure 3-5 Fuel Display
