Garmin G950 Pilot’s Guide for the Pilatus PC-6
190-00870-02 Rev. A6
SYSTEM OVERVIEW
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICESINDEX
KN 63
DME
(optional)
KR 87
ADF
(optional)
WX 500
Stormscope
(optional)
KTA 870
TAS
(optional)
No. 1 GIA 63W
Integrated Avionics Unit
System Integration Processors
I/O Processors
VHF COM
VHF NAV/LOC
GPS
Glideslope
No. 2 GIA 63W
Integrated Avionics Unit
System Integration Processors
I/O Processors
VHF COM
VHF NAV/LOC
GPS
Glideslope
GWX 68/70
Weather Radar
(optional)

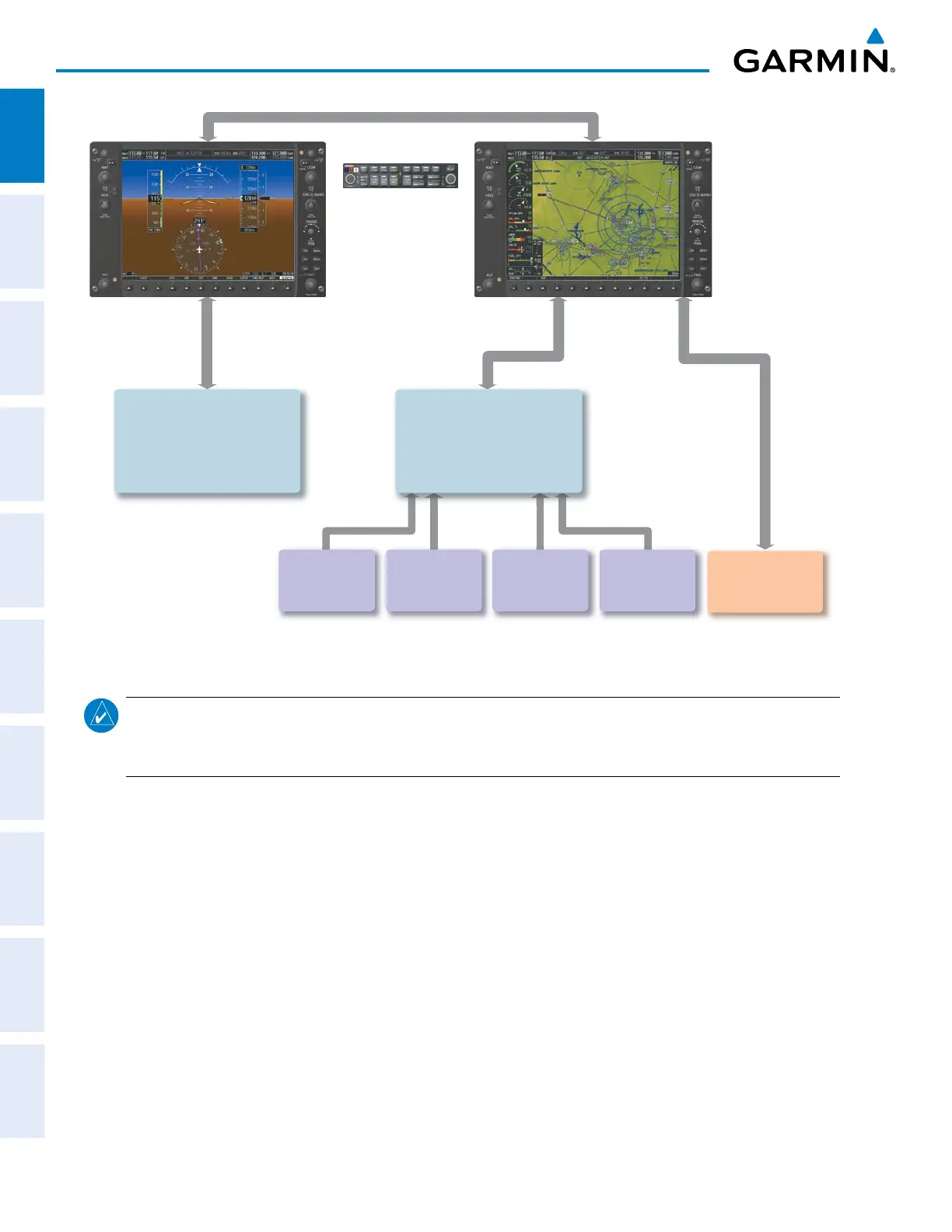

Figure 1-2 G950 With Optional/Additional Equipment
NOTE: For information on non-Garmin optional/additional equipment shown in Figure 1-2, consult the
applicable optional interface user’s guide. This document assumes that the reader is already familiar with
the operation of this additional equipment.
