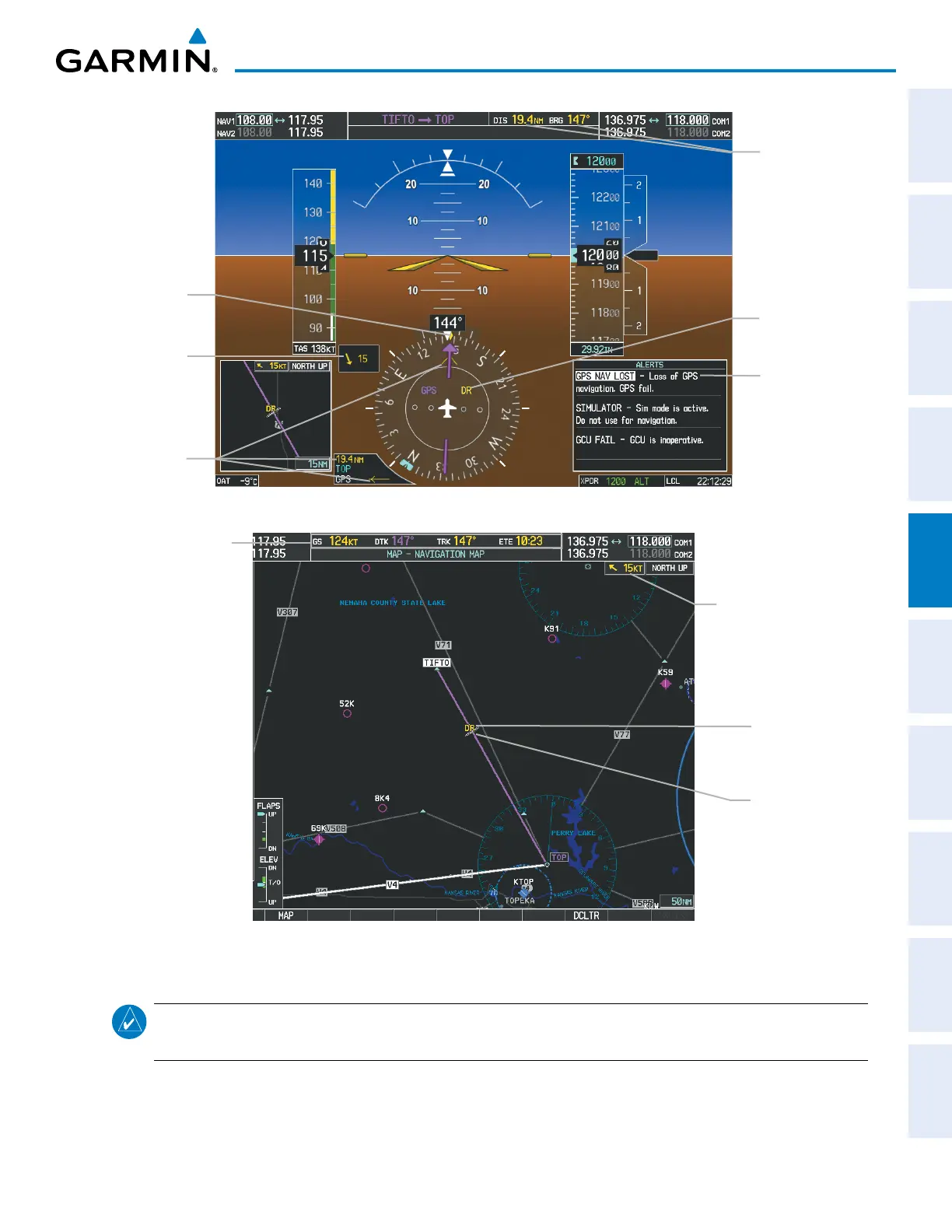

Figure 5-153 Dead Reckoning Mode - GPS Derived Data Shown in Yellow
Distance &
Bearing
GPS Navigation
Lost Message
Dead Reckoning
Annunciaion
Dead Reckoning
Annunciation
Subdued Aircraft
Symbol
Nav Data Bar
All data except
Active Leg,
TAS, and DTK
are in yellow
Wind Data
Wind Data
Bearing
Pointer/
Distance
Current
Track
Indicator
NOTE: The Inset Map is removed from the PFD any time aircraft pitch is greater than +30° or less than –20°,
or when a 65° bank angle is reached.
